Five-volt 2835 LED strip reel with plain USB lead
Flexible LED strips

5V USB 2835 LED Strip Sets with Multiple Switch Options

Indoor 5V 2835 strip sets in 1–10 m lengths and three white tones, with USB, button, dimmer, hand-sweep, touch or battery-box control options by SKU.

Model
ULT-F52CFFF2
Product type
SMD flexible LED strips
Available configurations
108
From USD 0.48 for this configurationReference price. Contact us for volume pricing. Shipping and taxes excluded.
Get a quoteChoose configuration
PRODUCT OVERVIEW

5V USB 2835 LED Strip Sets with Multiple Switch Options

This 5V 2835 flexible strip uses an 8 mm FPC, 30 LEDs/m and IP20 indoor construction. The 108 variants preserve 1 m, 2 m, 3 m, 4 m, 5 m and 10 m lengths in warm white, neutral white or white. Control and power-lead choices include a plain USB lead, 501 button switch, three-key dimmer, hand-sweep sensor, touch switch and battery box. The selected length, light color and control type form one complete listed configuration.

  • 5V low-voltage indoor strip
  • 2835 LEDs at 30 LEDs/m
  • 8 mm FPC shown
  • 1–10 m listed lengths
  • Warm white, neutral white and white options
  • Six USB, sensor, touch or battery-box control formats
PRODUCT GUIDANCE

Plan the right configuration.

Product information by ULANTU

Choose length and white tone
Select 1 m, 2 m, 3 m, 4 m, 5 m or 10 m and warm white, neutral white or white according to the exact SKU.
Choose one power or control format
Available configurations include plain USB, 501 button, three-key dimmer, hand-sweep sensor, touch switch and battery box. A controller is included only when the selected SKU states it; plain USB variants do not imply an inline switch.
Use in a dry 5V installation
Use a 5V USB source or the selected battery-box configuration. Mount on a clean dry surface, cut only at marked points, avoid sharp bends and keep the IP20 strip away from moisture. Position sensor variants for the intended gesture.
PRODUCT DETAILS

Installation

Use a 5V USB source or the battery-box configuration stated by the selected SKU. Clean and dry the mounting surface, cut only at marked points and apply the adhesive backing without sharp bends. Keep the IP20 strip away from moisture. Position hand-sweep sensor variants where the sensor can detect the intended gesture.

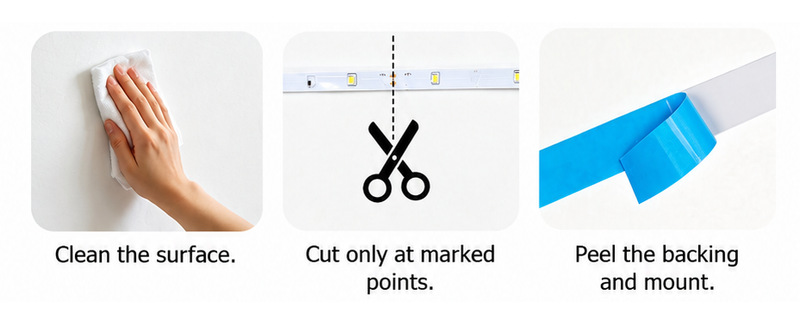

Three-step installation sequence for the adhesive-backed strip
Installation sequenceAll adhesive-backed strip variants
PRODUCT DETAILS

Applications

Indoor under-cabinet, shelf, living-room and curtain-edge lighting
Indoor application examplesGeneral indoor variants; not an exact installed SKU claim

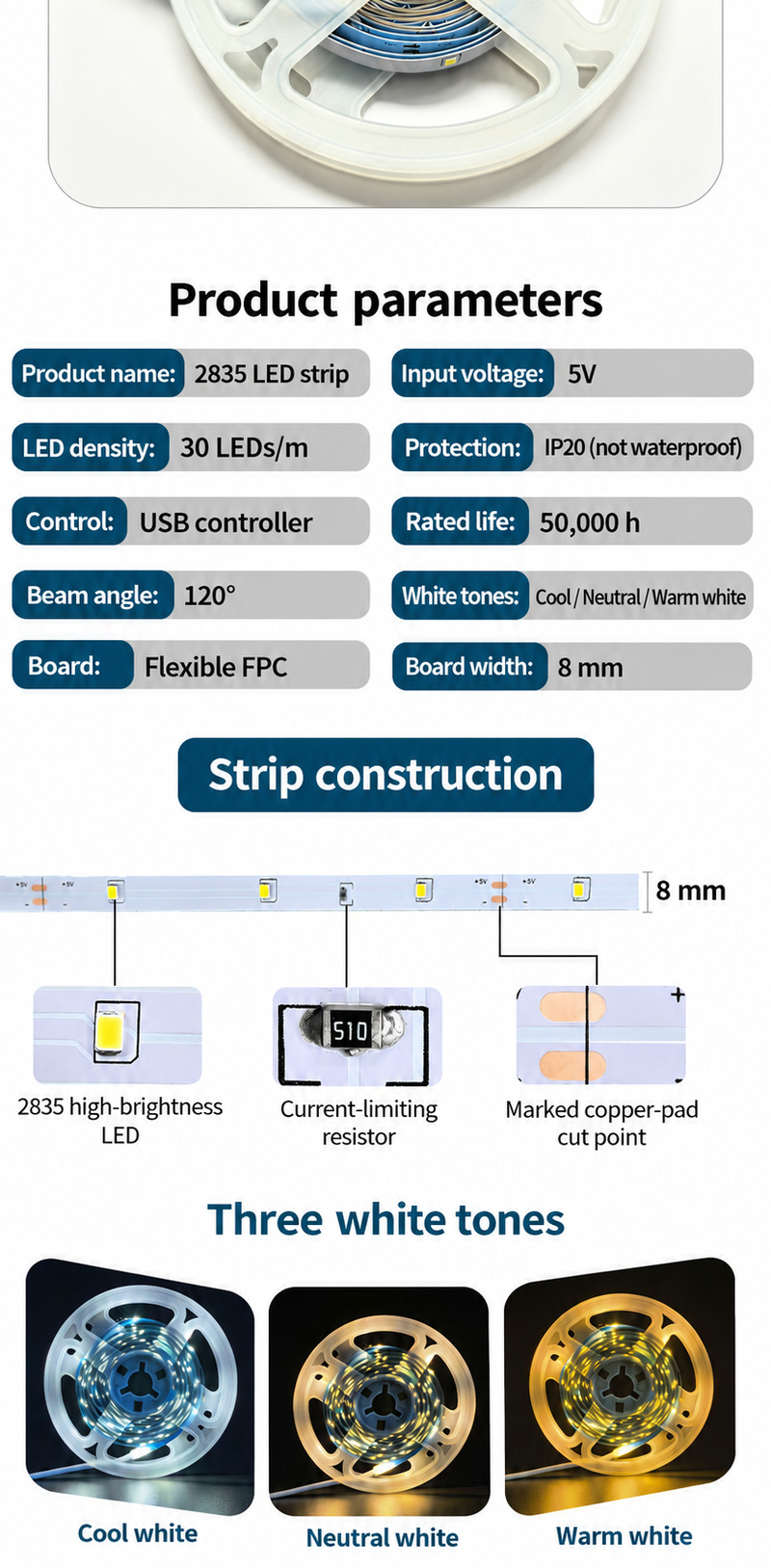

PARAMETERS

Review the available product details.

Voltage
5V
LED package
2835
LED density
30 LEDs/m
Board width shown
8 mm
Protection shown
IP20 / non-waterproof
Beam angle shown
120°
Lengths
1, 2, 3, 4, 5 or 10 m
Colors
warm white, neutral white or white
Control/power
plain USB lead, 501 button switch, three-key dimmer, hand-sweep sensor, touch switch or battery box by SKU
CONFIGURATIONS

Choose from 108 available configurations.

Choose the exact length, light color and control/power-lead format. A dimmer, sensor, touch switch or battery box is included only when the exact SKU states it. Plain USB variants retain USB power without claiming an inline switch.

Use the search to narrow by voltage, color, length, plug, controller or model text.

SELECTION GUIDANCE

Confirm the complete requirement.

Product selection
Use a 5V USB source or the battery-box configuration stated by the selected SKU. Clean and dry the mounting surface, cut only at marked points and apply the adhesive backing without sharp bends. Keep the IP20 strip away from moisture. Position hand-sweep sensor variants where the sensor can detect the intended gesture.
Quantity
Enter the project quantity, length or sample need.
Destination
Add destination and postal code in the request form.
Documents
Request only the files applicable to the selected model and market.
