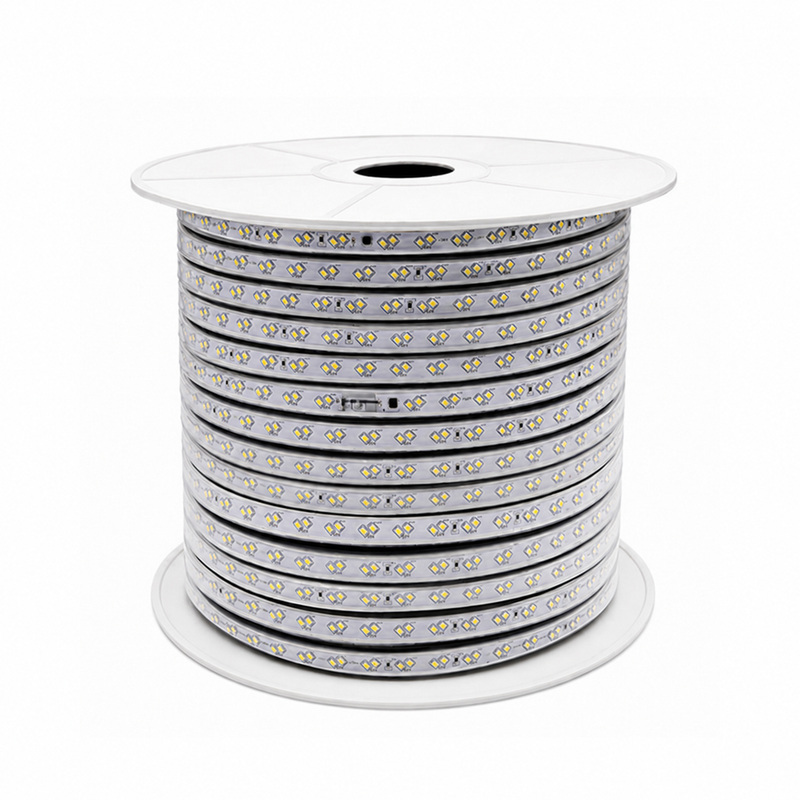

Encapsulated diagonal double-row LED strip on a reel.
Flexible LED strips

24V, 36V and 220V 2835 Encapsulated Double-Row LED Strips

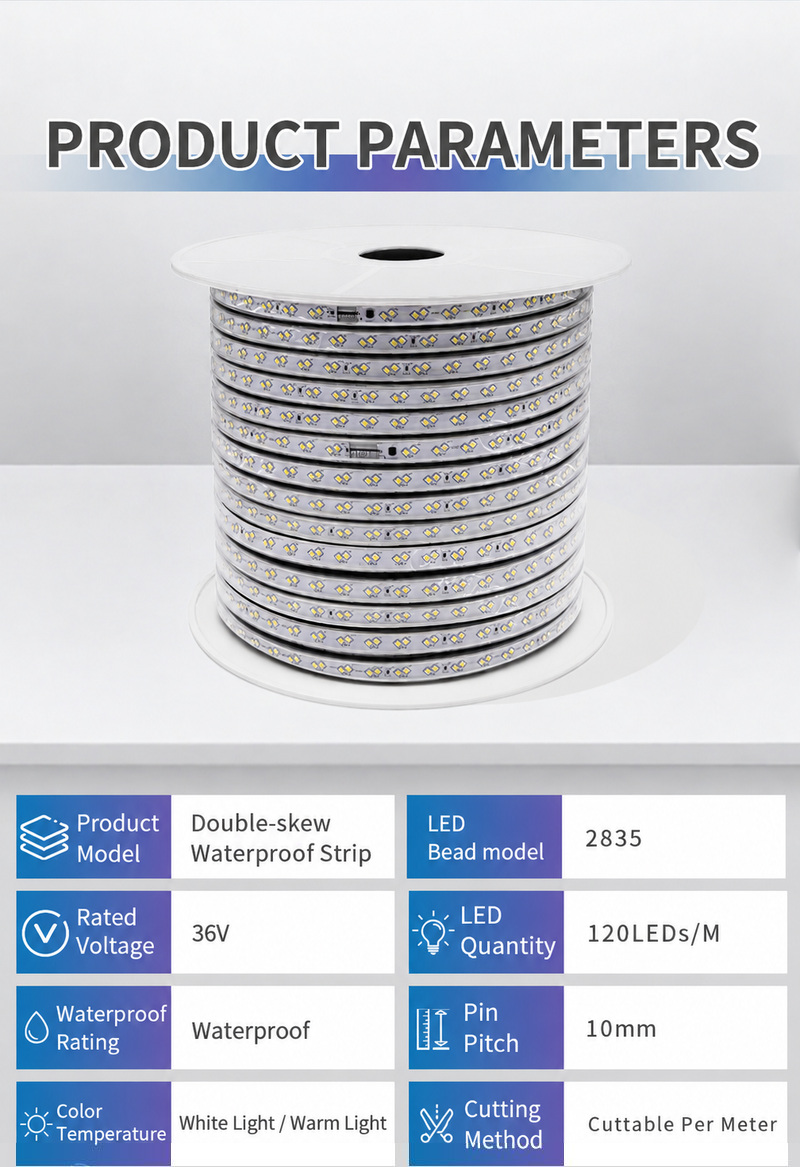

14 variants cover voltage, wiring and accessory distinctions. The illustrated 36V diagonal version uses 2835 LEDs, 120 LEDs/m and 10mm pin pitch.

Model
ULT-BED1336C
Product type
SMD and flexible LED strips
Available configurations
14
From USD 0.69 for this configurationReference price. Contact us for volume pricing. Shipping and taxes excluded.
Get a quoteChoose configuration
PRODUCT OVERVIEW

24V, 36V and 220V 2835 Encapsulated Double-Row LED Strips

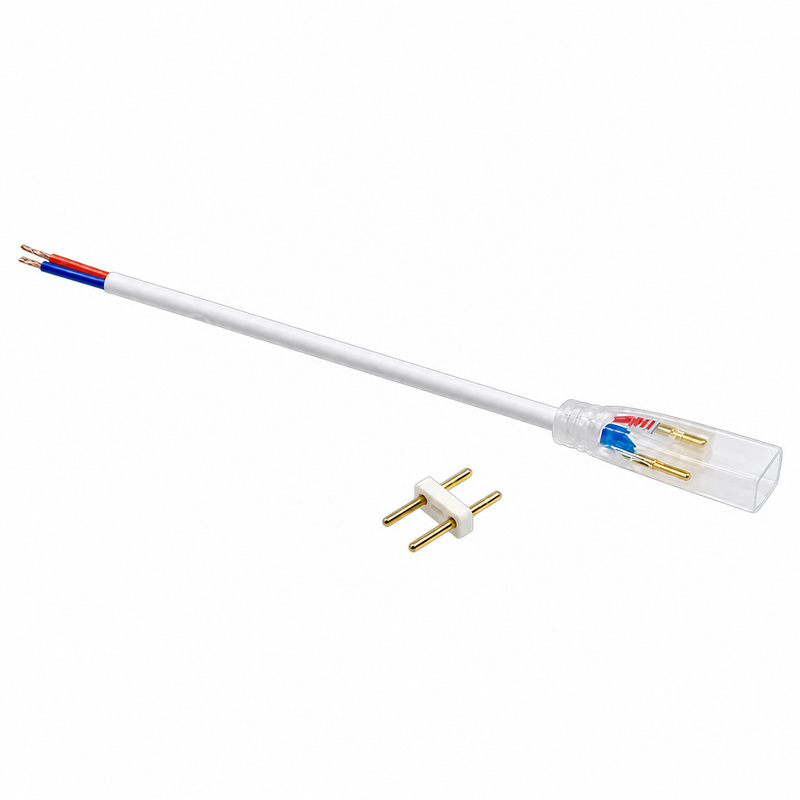

Flexible double-row strips with voltage-specific configurations and separately sold power supplies, connectors and power leads. The range includes 36V and 220V options, diagonal or straight double-row layouts, and white or warm-white light. Selected 36V versions have four-wire connections. Choose the supply, wiring arrangement and LED layout as one configuration; a 36V strip must not be connected directly to 220V. The 600W and 1000W potted supplies and 2-pin connector are separate accessories.

  • 36V and 220V configurations
  • Diagonal and straight double-row layouts
  • White and warm-white options
  • Four-wire 36V selections
  • Separate supply and connector selections
PRODUCT GUIDANCE

Plan the right configuration.

Product information by ULANTU

Available configurations
14 variants cover voltage, wiring and accessory distinctions. The illustrated 36V diagonal version uses 2835 LEDs, 120 LEDs/m and 10mm pin pitch.
Selection and installation

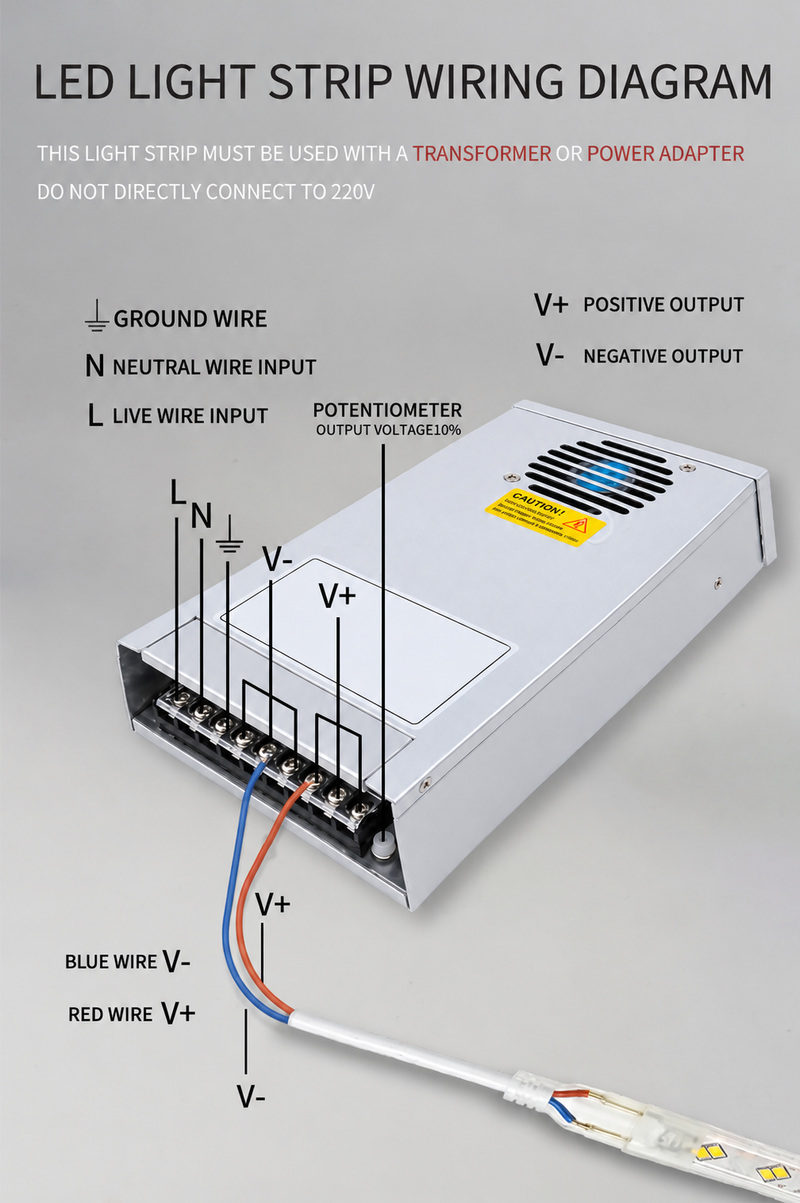

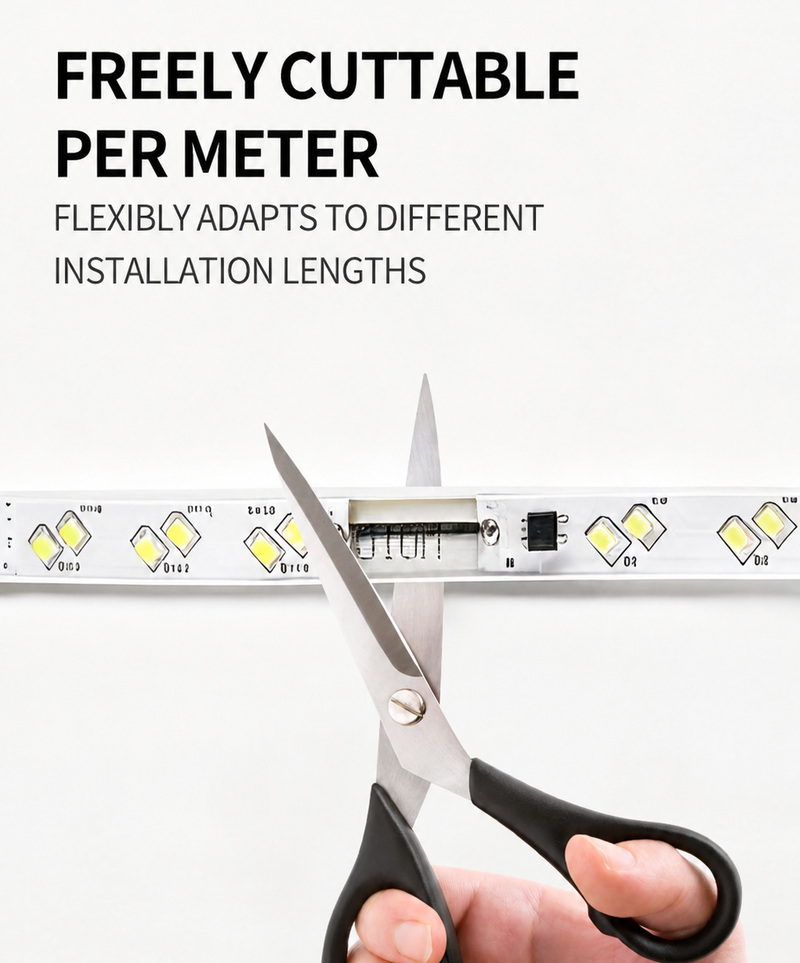

For 36V strips, use a matching DC supply and observe polarity. For 220V versions, use the matching high-voltage connection arrangement. Unroll before powering and cut only at marked intervals.
PARAMETERS

Review the available product details.

Voltage options
24V, 36V, 220V (by SKU).
CONFIGURATIONS

Choose from 14 available configurations.

14 variants cover voltage, wiring and accessory distinctions. The illustrated 36V diagonal version uses 2835 LEDs, 120 LEDs/m and 10mm pin pitch.

Use the search to narrow by voltage, color, length, plug, controller or model text.

SELECTION GUIDANCE

Confirm the complete requirement.

Product selection
For 36V strips, use a matching DC supply and observe polarity. For 220V versions, use the matching high-voltage connection arrangement. Unroll before powering and cut only at marked intervals.
Quantity
Enter the project quantity, length or sample need.
Destination
Add destination and postal code in the request form.
Documents
Request only the files applicable to the selected model and market.
APPLICATIONS & NEXT STEPS

Product uses

The encapsulated strip can follow garden or building outlines with suitable sealed connections.

The flexible strip follows recesses and room edges for indirect light.

Selectable light colours and strip formats can highlight display edges and shelves.
