PRODUCT COLLECTION

LED Strip Power Supplies

Browse 6 real catalog products and open each product to review its available configurations.

ULANTU catalog product

6 products

All products
BUYING GUIDE

Compare Current LED Strip Power Supply and Driver Options

Start with the exact strip voltage and branch load, then compare the driver's input, output, rated power, enclosure and control method. Input voltage is not the LED output voltage, and a sensor or control accessory is not automatically a power supply. Use the exact product and configuration in the quotation request.

Current productVerified electrical and format factsWhen to shortlist it

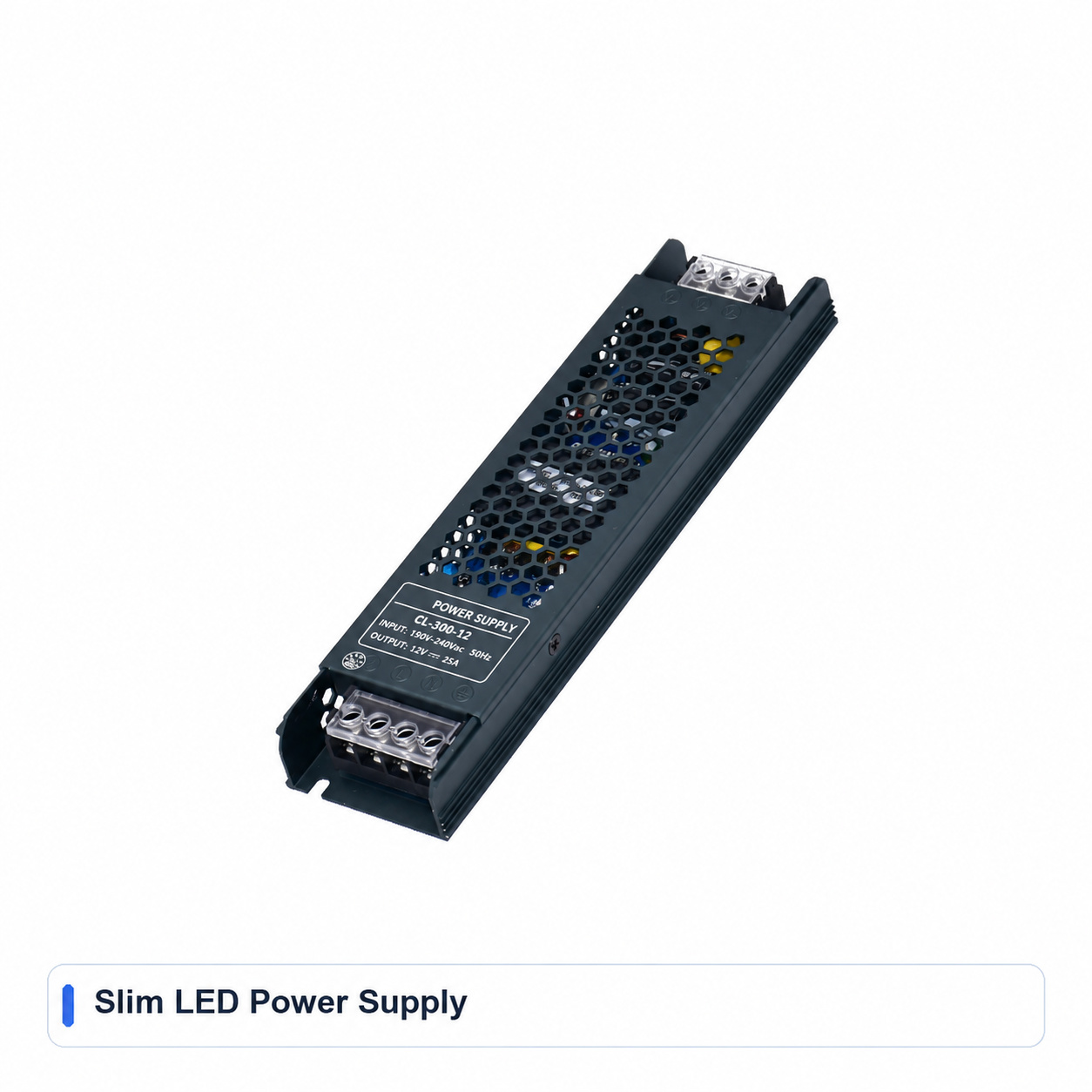

12V / 24V Slim LED Power Supply RangeULT-9CD28B5612V or 24V output; model-specific 18–400W ratings, dimensions and case formats. The combined range does not mean every power rating is available at both voltages; confirm the input voltage for the exact unit.A slim enclosure is needed and the exact output voltage, rated power, dimensions and terminal or lead arrangement are already defined.
110–240V Input Metal-Case LED Switching Power SupplyULT-1583D61EListed 110–240V input with model-specific 5V, 12V, 24V, 36V or 48V outputs, rated power and enclosure dimensions. Fan options apply only to selected configurations.The project needs a metal-case supply and a qualified installer can match the exact input, output, power and installation conditions.

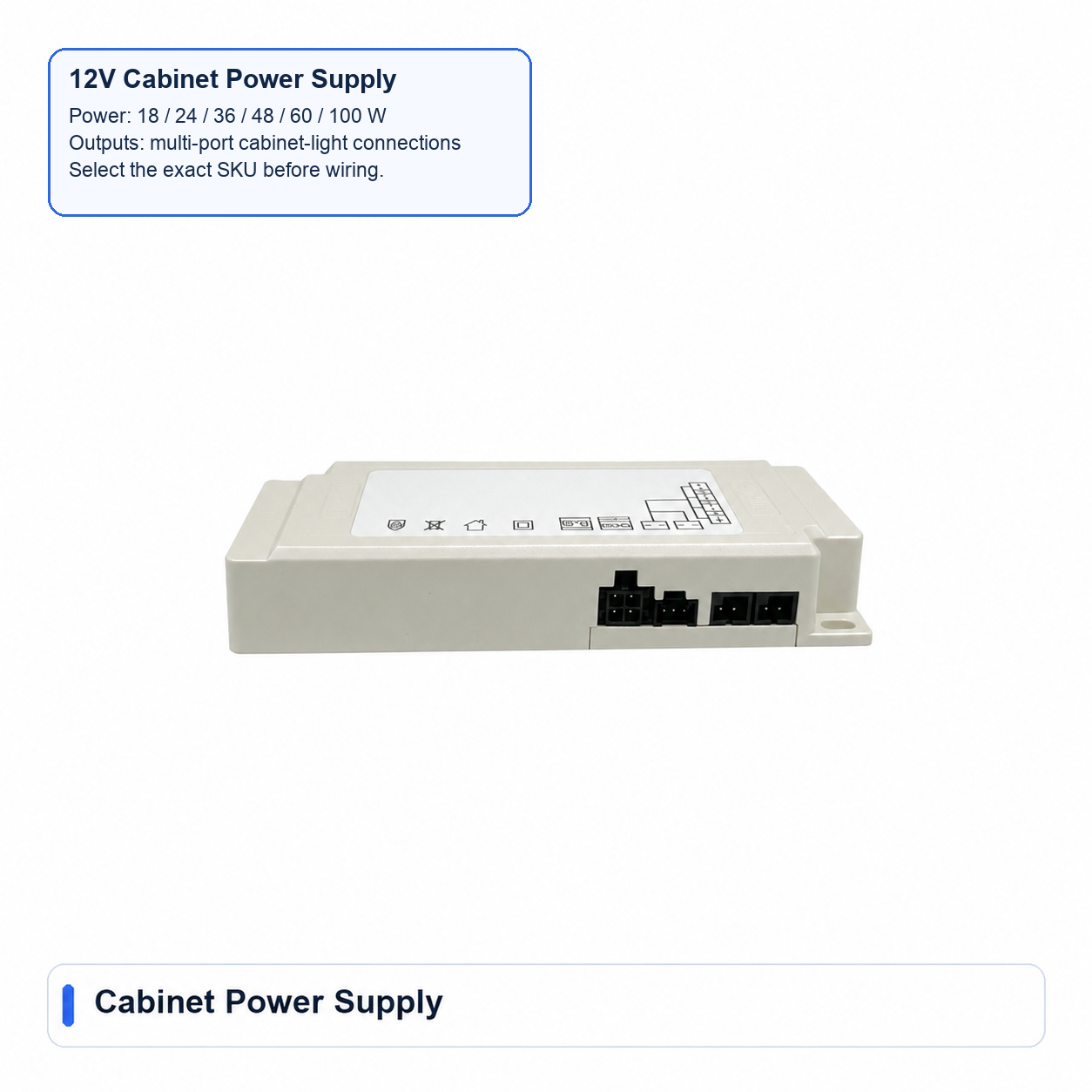

12V Cabinet LED Power Supply and Sensor SystemULT-1E54204D12V cabinet-lighting power options from 18W to 100W; centralized and individual sensor-control items are listed separately. Sensor SKUs are not power supplies.A cabinet or furniture-lighting system needs a 12V power option plus separately selected sensor-control components.
12V/24V Dimmable CCT LED DriverULT-AEAC595612V or 24V output, 150W–400W configurations and wired or smart-control variants. Compatibility depends on the exact light source and control panel.A tunable-white or three-color system needs a model-specific driver and control method rather than a fixed-output supply alone.

These examples are a shortlist from the current range, not a universal compatibility table. Confirm the exact input supply, LED output voltage, verified load, branch layout, dimming or control interface, installation environment and included accessories before ordering.

Include the strip product or SKU, output voltage, installed length, verified W/m, branch and feed plan, input supply, control method, installation environment, quantity and destination.

Submit Load and Driver Requirements
FAQ

LED Strip Power Supplies questions.

How do I size a power supply for an LED strip?

Calculate each independently fed branch: branch load (W) = installed strip length (m) × verified strip power (W/m), using the exact strip's data. Keep controller load and conversion losses separate unless the product documents define how to include them, and check the driver's own datasheet.

Should I use 12V or 24V?

For the same power, a 24V circuit carries half the current of a 12V circuit, which affects cable voltage drop. Voltage does not by itself make a strip brighter or more efficient; compare candidates only after the load, branch layout, feed points and cable route are defined.

Is there a minimum order quantity and how fast do stock items ship?

There is no minimum order quantity on stock items, and stock orders ship in 2–3 days. Custom production takes 15–20 days once the requirement is confirmed.

Can I order a sample?

Samples are bought at the normal product price. Stock samples ship in 2–3 days and ULANTU pays the sample shipping cost.

Full guide: LED strip power supply sizing guide.
