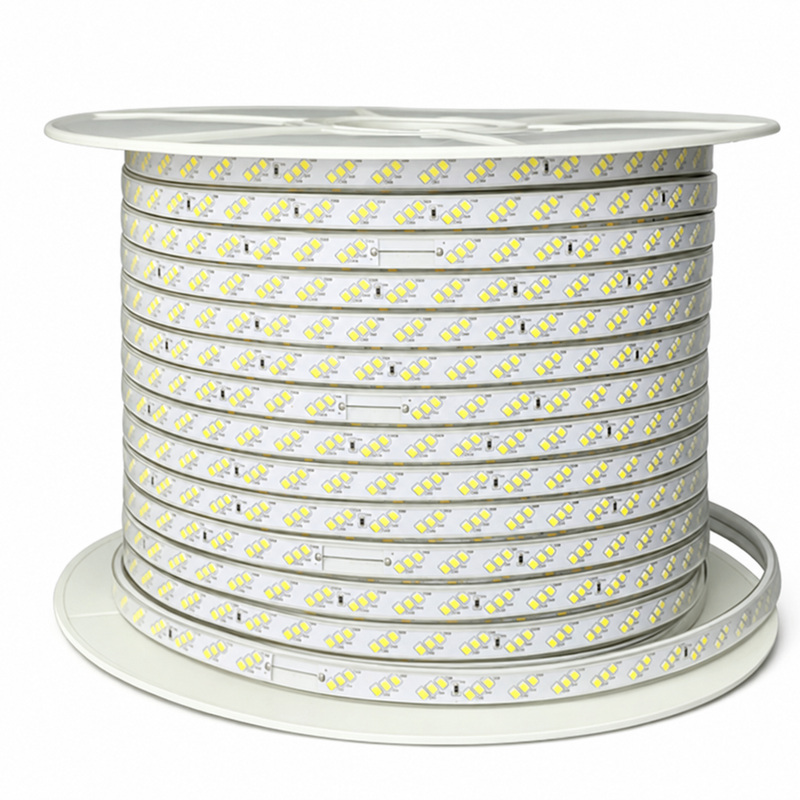

Unlit reel of encapsulated diagonal triple-row LED strip.
Flexible LED strips

220V 2835 Diagonal Triple-Row LED Strip, 180 LEDs/m

Two strip colours and one independent 2-pin solderless connector. Strip and connector are separate selections.

Model
ULT-790190D8
Product type
SMD and flexible LED strips
Available configurations
3
From USD 1.19 for this configurationReference price. Contact us for volume pricing. Shipping and taxes excluded.
Get a quoteChoose configuration
PRODUCT OVERVIEW

220V 2835 Diagonal Triple-Row LED Strip, 180 LEDs/m

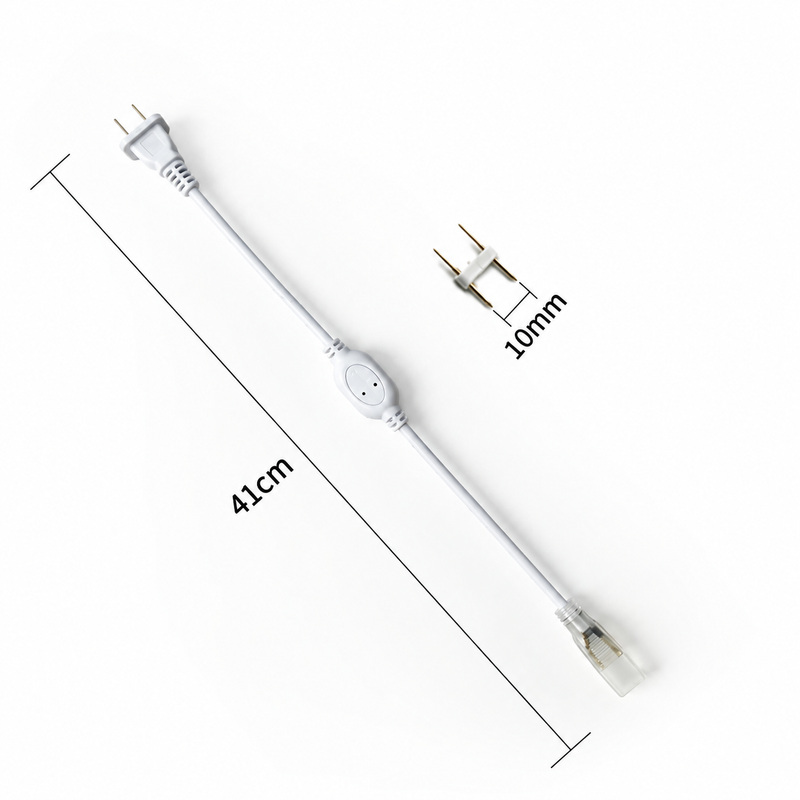

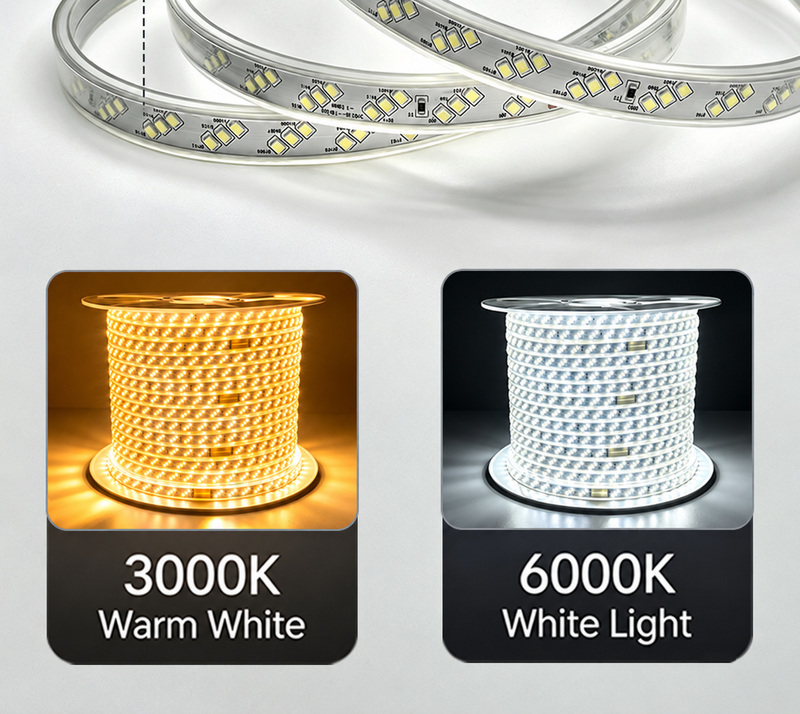

Encapsulated triple-row strip in warm-white and white versions, with a separately selectable 2-pin connector. The diagonal 2835 layout provides 180 LEDs per metre. The illustrated strip measures 14.5mm wide and 5mm thick and has marked 1m cutting intervals. Choose the warm-white or white strip independently from the solderless connector. The connector is sold separately and has a 10mm pin pitch.

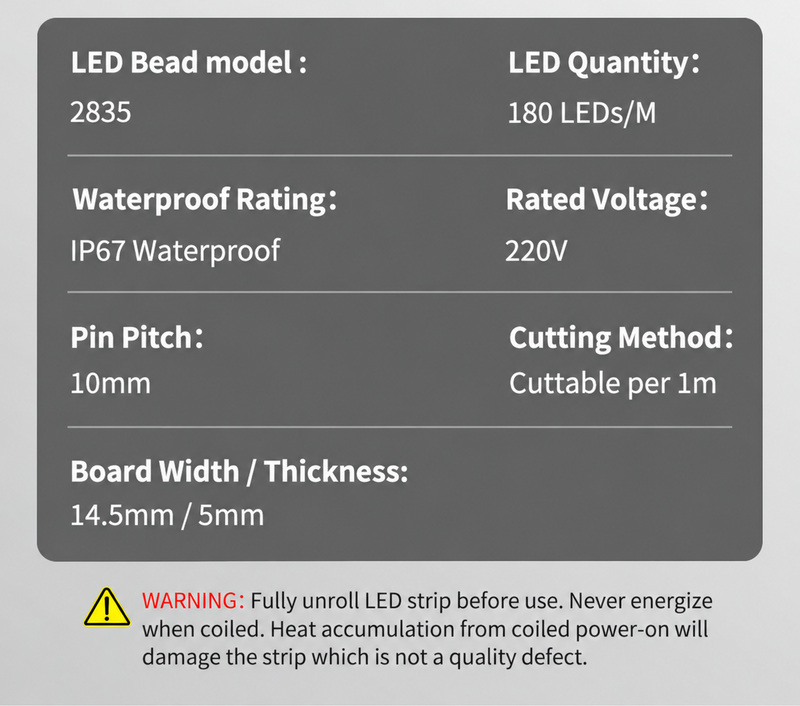

  • 220V strip configurations
  • 180 LEDs/m in a diagonal triple row

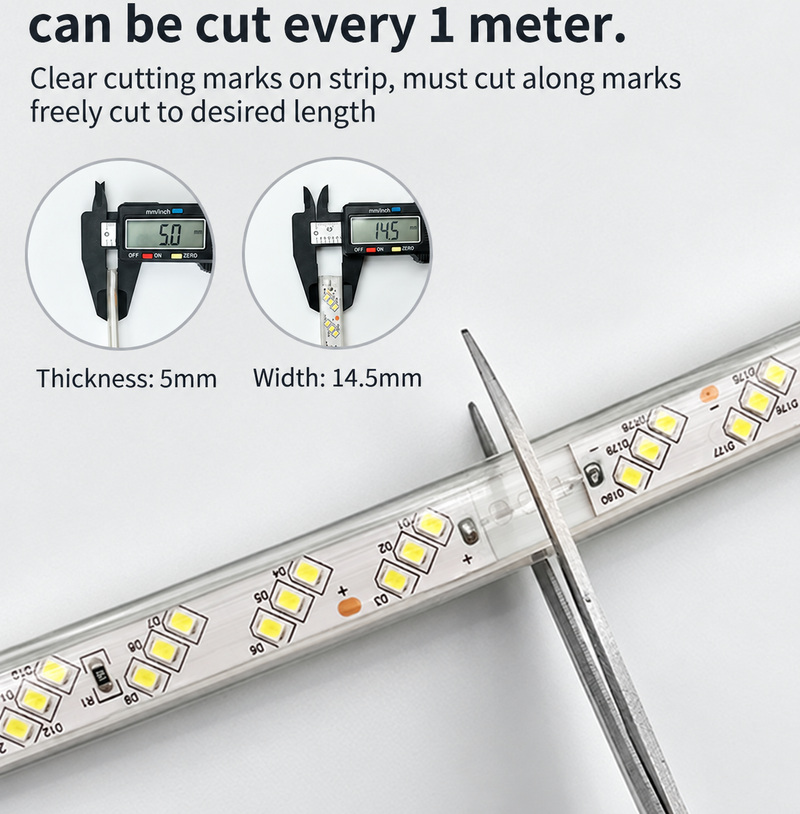

  • 14.5mm × 5mm illustrated strip section
  • 1m marked cutting intervals
PRODUCT GUIDANCE

Plan the right configuration.

Product information by ULANTU

Available configurations
Two strip colours and one independent 2-pin solderless connector. Strip and connector are separate selections.
Selection and installation

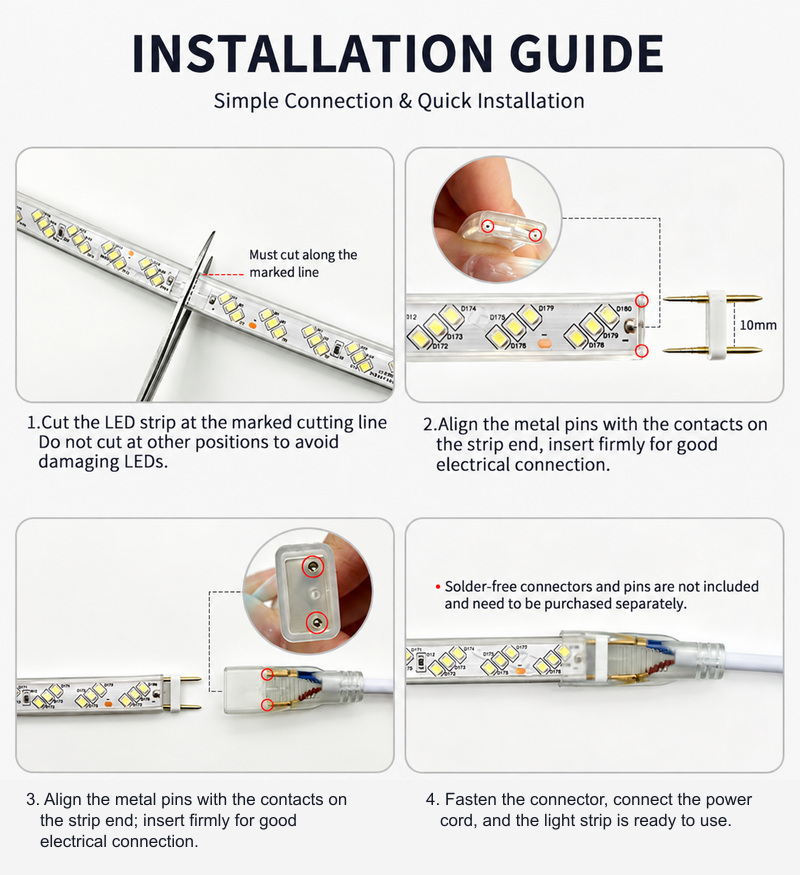

Fully unroll before energising. Disconnect the supply before cutting or joining, cut only at marked positions and align the contact pins. Protect completed connections and ends from moisture.
PARAMETERS

Review the available product details.

Voltage options
220V (by SKU).
CONFIGURATIONS

Choose from 3 available configurations.

Two strip colours and one independent 2-pin solderless connector. Strip and connector are separate selections.

Use the search to narrow by voltage, color, length, plug, controller or model text.

SELECTION GUIDANCE

Confirm the complete requirement.

Product selection
Fully unroll before energising. Disconnect the supply before cutting or joining, cut only at marked positions and align the contact pins. Protect completed connections and ends from moisture.
Quantity
Enter the project quantity, length or sample need.
Destination
Add destination and postal code in the request form.
Documents
Request only the files applicable to the selected model and market.
APPLICATIONS & NEXT STEPS

Product uses

The encapsulated strip can follow garden or building outlines with suitable sealed connections.

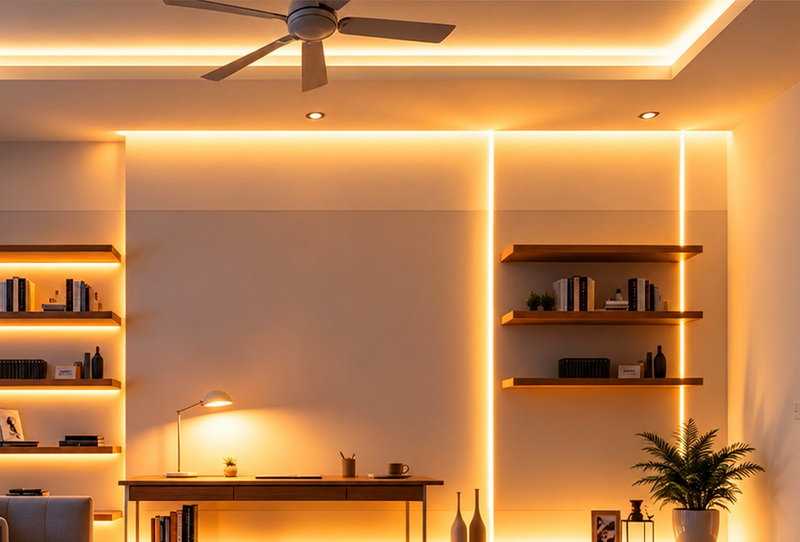

The flexible strip follows recesses and room edges for indirect light.

Selectable light colours and strip formats can highlight display edges and shelves.
