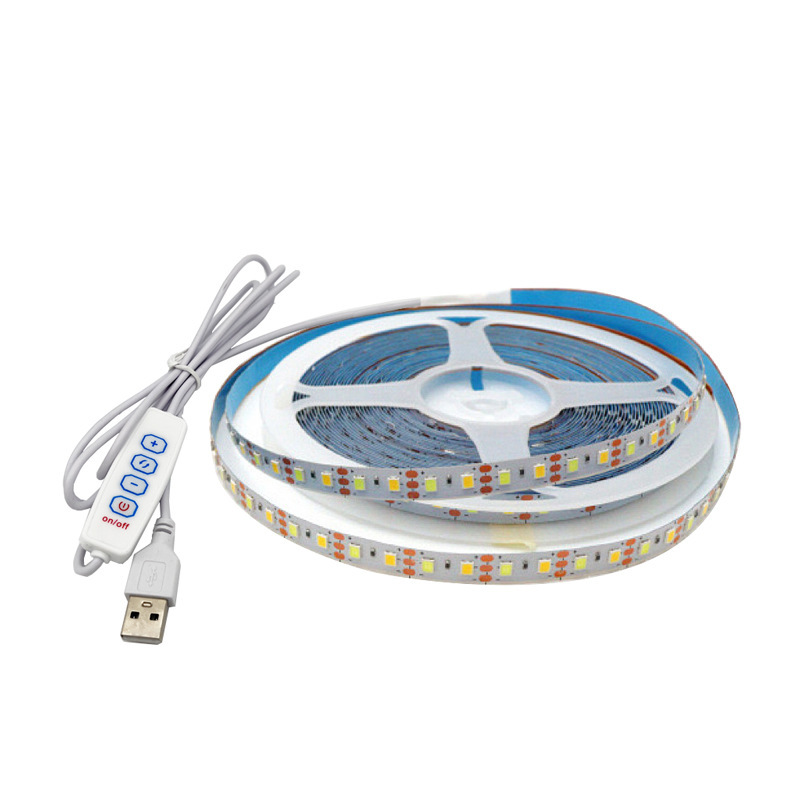

Five-volt LED strip reel with four-key inline controller and USB lead
Flexible LED strips

5V SMD and COB LED Strip Sets with Switch, Touch, CCT or Battery Controls

Compact 5V strip sets in SMD or COB formats, multiple fixed colors and CCT, with button, touch, battery-box or four-key controller options by SKU.

Model
ULT-D4759682
Product type
SMD flexible LED strips
Available configurations
192
From USD 0.34 for this configurationReference price. Contact us for volume pricing. Shipping and taxes excluded.
Get a quoteChoose configuration
PRODUCT OVERVIEW

5V SMD and COB LED Strip Sets with Switch, Touch, CCT or Battery Controls

This 5V strip family combines 5 mm or 8 mm SMD strips at 60 LEDs/m with selected 8 mm COB strips at 320 LEDs/m. The 192 variants preserve lengths from 0.1 m to 5 m, fixed white or color output, tunable-white choices and four control families: 501 button switch, touch switch, battery box and four-key CCT controller. Each listed length, color, strip construction and controller type is a separate configuration; accessories and controls must not be generalized across the family.

  • 5V low-voltage strip sets
  • 5 mm and 8 mm SMD options at 60 LEDs/m
  • Selected 8 mm COB options at 320 LEDs/m
  • 0.1–5 m listed lengths
  • White, warm white, CCT and fixed-color choices
  • Button, touch, battery-box and four-key CCT controls by SKU
PRODUCT GUIDANCE

Plan the right configuration.

Product information by ULANTU

Choose strip construction and length
Select 5 mm or 8 mm SMD at 60 LEDs/m, or a listed 8 mm COB option at 320 LEDs/m. Available lengths run from 0.1 m to 5 m by SKU.
Match color to the control
Choose the listed fixed white or color output, or a tunable-white configuration. The four-key controller belongs to CCT configurations; button, touch and battery-box controls are separate SKU choices.
Confirm what the SKU includes
A control lead, battery box or switch is included only when the exact SKU states it. Use the stated 5V supply or battery arrangement, cut only at printed marks and keep the non-waterproof strip dry.
PRODUCT DETAILS

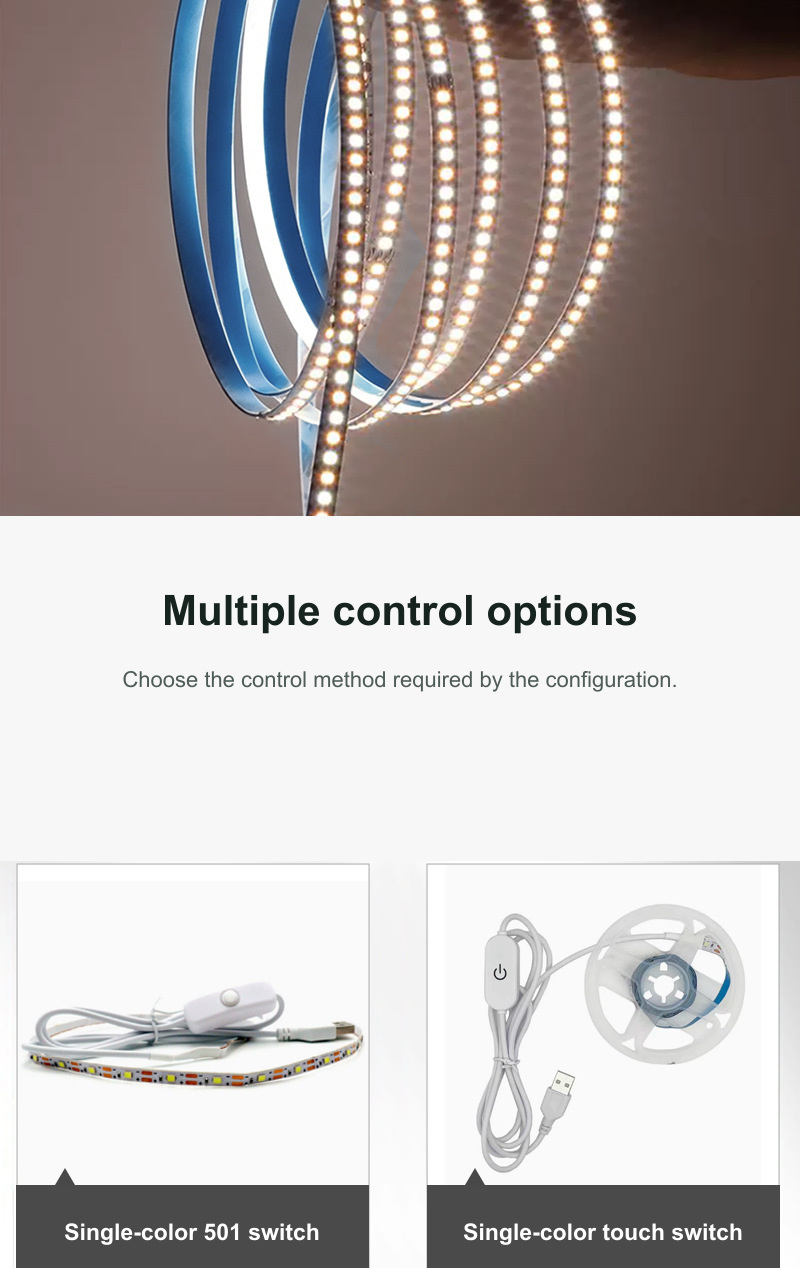

Choose the Control Configuration

Select exact length, 5 mm or 8 mm strip, SMD or COB construction, light color and control type. The four-key controller belongs to tunable-white configurations; a battery box, touch switch or button switch is included only when stated in the exact SKU.

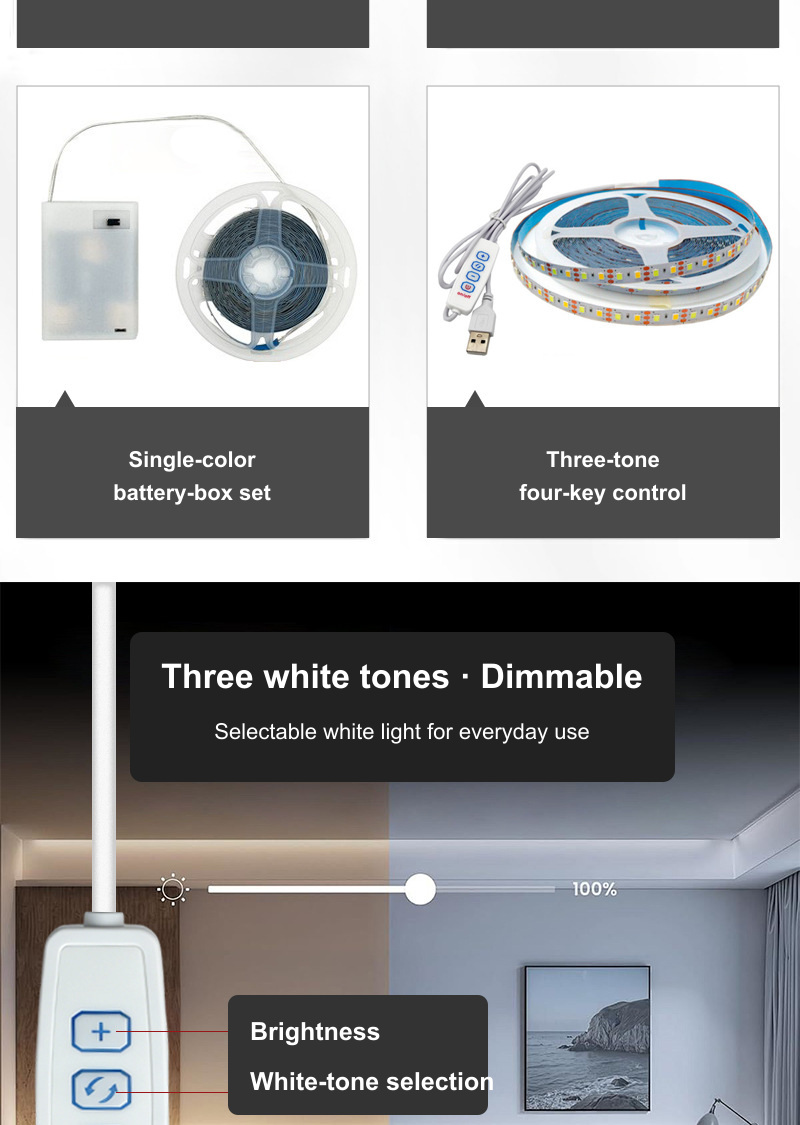

Battery-box and four-key tunable-white control functions
Control function detailBattery box and four-key CCT variants shown separately
PRODUCT DETAILS

Installation

Use the 5V supply or battery-box configuration stated by the selected SKU. Cut only at printed cut marks, apply the adhesive backing to a clean dry surface and keep the non-waterproof strip away from moisture. Match control type to the selected fixed-color or tunable-white strip.

Scissors aligned with a marked LED strip cut point
Cut-point instructionAll illustrated strip variants; cut only at marked points
Adhesive backing being peeled from a flexible LED strip
Adhesive-backing detailAll adhesive-backed strip variants
PRODUCT DETAILS

Applications

Living-room, wardrobe, bathroom mirror and TV backlight applications
Application examplesGeneral family applications; not an exact installed SKU claim
PARAMETERS

Review the available product details.

Voltage
5V
Technology
SMD or COB by SKU
Width
5 or 8 mm
LED density
60 LEDs/m for listed SMD variants; 320 LEDs/m for listed COB variants
Lengths
0.1, 0.3, 0.5, 0.6, 0.7, 0.8, 1, 1.3, 1.5, 2, 2.5, 3, 4 or 5 m by SKU
Control
501 button switch, touch switch, battery box or four-key CCT controller by SKU
Colors
white, warm white, CCT, blue, red, green, pink, golden yellow, ice blue or cool white by SKU
CONFIGURATIONS

Choose from 192 available configurations.

Select exact length, 5 mm or 8 mm strip, SMD or COB construction, light color and control type. The four-key controller belongs to tunable-white configurations; a battery box, touch switch or button switch is included only when stated in the exact SKU.

Use the search to narrow by voltage, color, length, plug, controller or model text.

SELECTION GUIDANCE

Confirm the complete requirement.

Product selection
Use the 5V supply or battery-box configuration stated by the selected SKU. Cut only at printed cut marks, apply the adhesive backing to a clean dry surface and keep the non-waterproof strip away from moisture. Match control type to the selected fixed-color or tunable-white strip.
Quantity
Enter the project quantity, length or sample need.
Destination
Add destination and postal code in the request form.
Documents
Request only the files applicable to the selected model and market.
