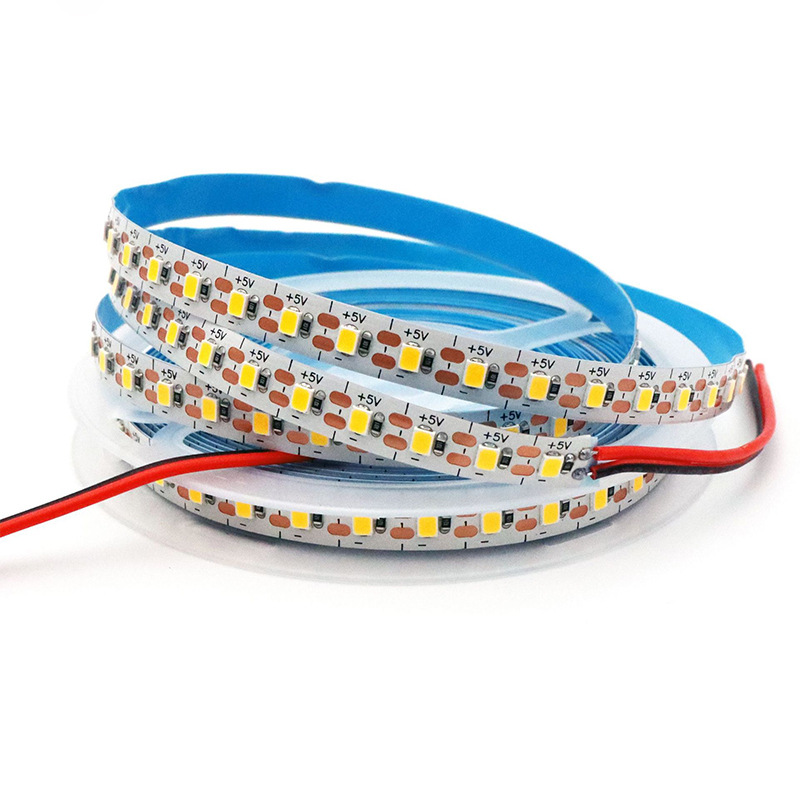

Flexible 2835 SMD LED strip with blue adhesive liner and red-black lead
Flexible LED strips

3V/5V Low-Voltage SMD, COB and Silicone Neon Strip Options

A 3V/5V low-voltage family covering narrow 2835 SMD strips, COB strips, 6 × 12 mm silicone neon flex and one separate USB switch lead.

Model
ULT-BDA03797
Product type
SMD and flexible LED strips
Available configurations
76
From USD 0.29 for this configurationReference price. Contact us for volume pricing. Shipping and taxes excluded.
Get a quoteChoose configuration
PRODUCT OVERVIEW

3V/5V Low-Voltage SMD, COB and Silicone Neon Strip Options

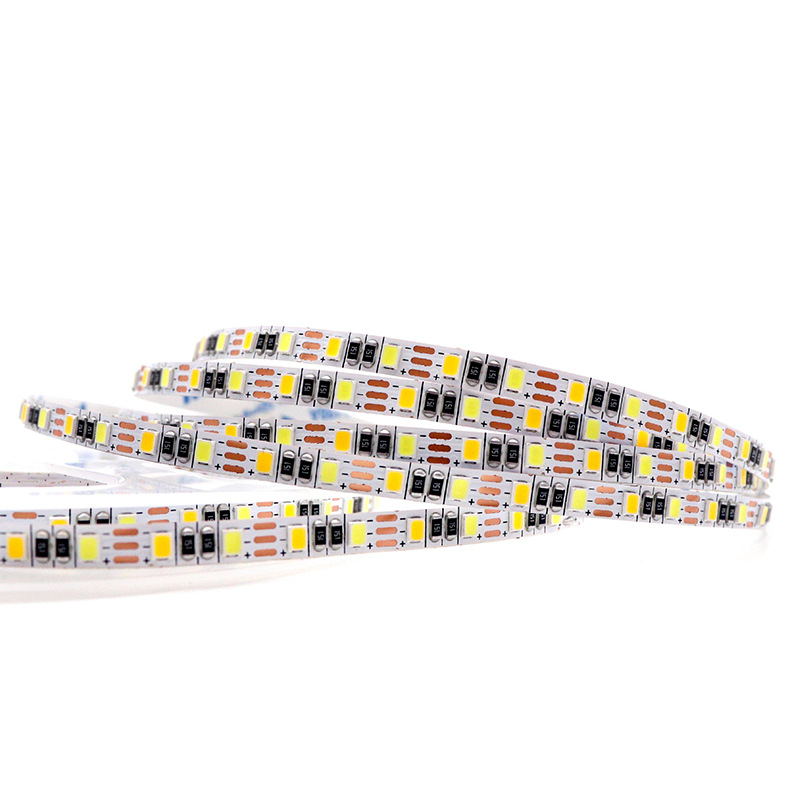

This low-voltage range covers 3V or 5V 2835 SMD strips, 5V COB strips and 5V 6 × 12 mm silicone neon flex. Widths range from 3 mm to 8 mm, with listed densities from 30 to 500 LEDs/m. White, fixed-color, RGB and three-CCT choices are separated by SKU. The 1 m 501 inline-switch USB lead is a separate accessory and is not included unless selected.

  • 3V and 5V low-voltage configurations
  • 2835 SMD, COB and silicone neon constructions

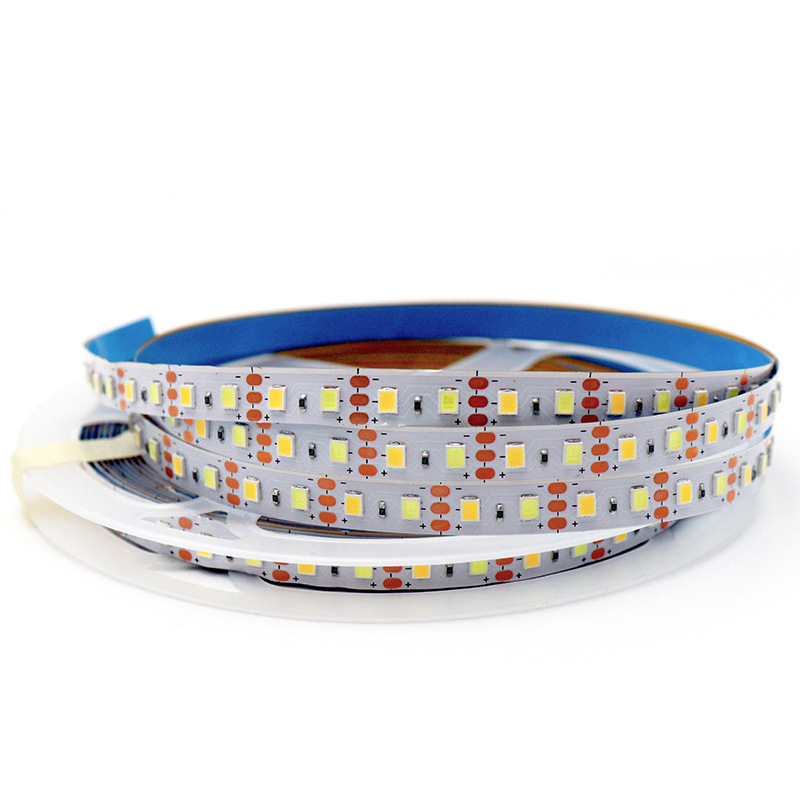

  • 3–8 mm strip widths plus 6 × 12 mm neon section
  • 30–500 LEDs/m by SKU

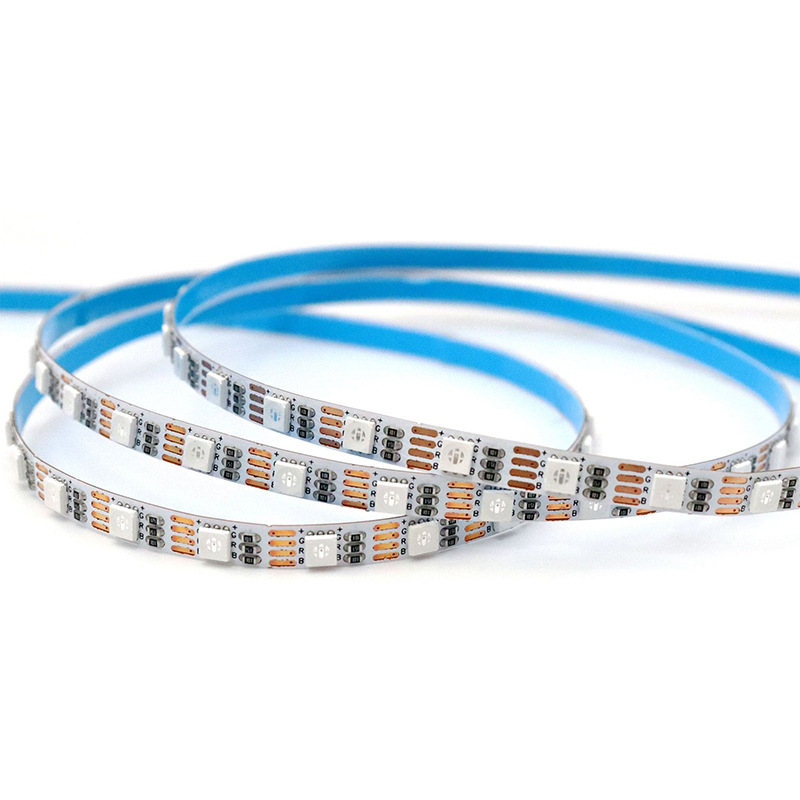

  • White, fixed-color, RGB and three-CCT choices
  • Separate 1 m inline-switch USB lead accessory
PRODUCT GUIDANCE

Plan the right configuration.

Product information by ULANTU

Choose construction before the detailed SKU
First choose 2835 SMD, COB or silicone neon, then match voltage, width or section, density, PCB type and light color.
Match the supply and control path
Use the supply and controller required by the selected 3V or 5V strip. Confirm conductor layout and cut marks before cutting or soldering.
Accessory boundary

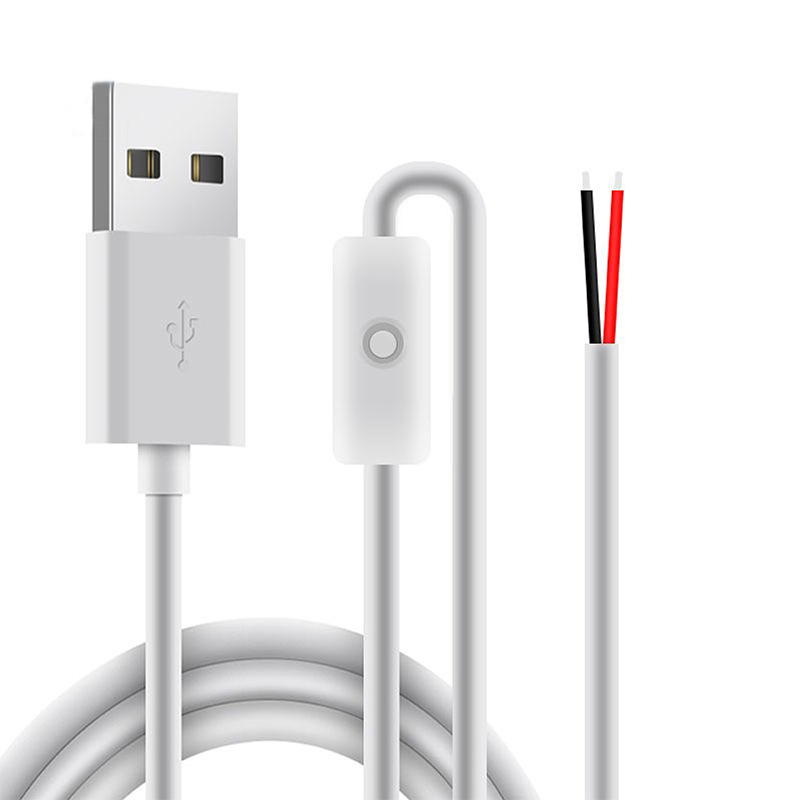

V0076 is a separate 1 m inline-switch USB power lead. It is not included with the main strips and is not a universal accessory.
PARAMETERS

Review the available product details.

Voltage
3V or 5V by SKU
Strip types
2835 SMD, COB or silicone neon flex
Width
3, 5 or 8 mm where stated
Neon section
6 × 12 mm
LED density

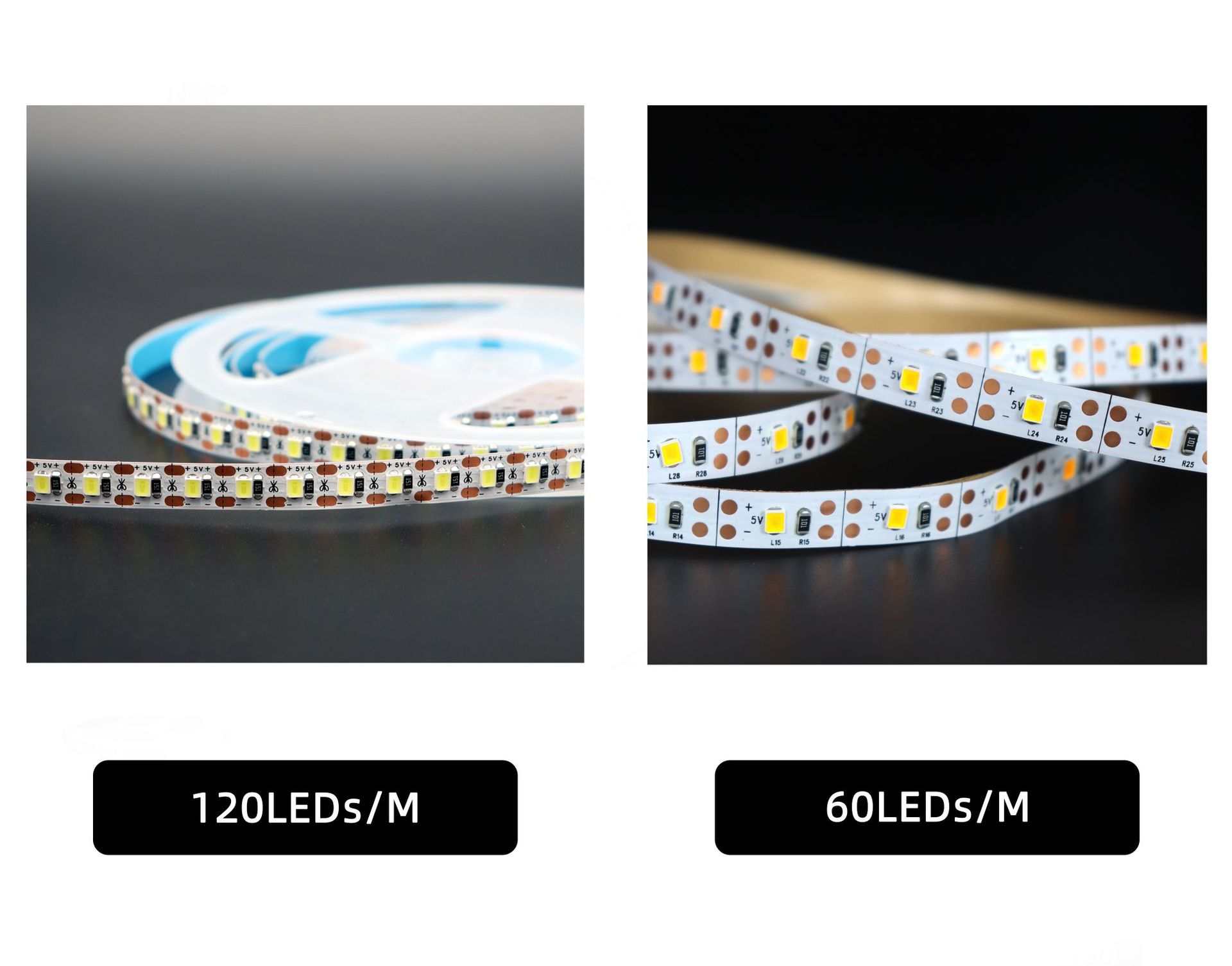

30, 60, 90, 120, 320, 400 or 500 LEDs/m
PCB
Single-sided, double-sided, die-cut or plated options where stated
Accessory
1 m 501 inline-switch USB lead
CONFIGURATIONS

Choose from 76 available configurations.

Choose construction, voltage, width or section, LED density, light color and PCB type exactly as listed. The USB switch lead is sold separately and is not included with the main strip unless selected.

Use the search to narrow by voltage, color, length, plug, controller or model text.

SELECTION GUIDANCE

Confirm the complete requirement.

Product selection
Match the selected strip to a 3V or 5V supply and any required controller. Confirm width, cut marks and conductor layout before cutting or soldering. Use the separate USB switch lead only with a compatible listed configuration; it is not a universal inclusion.
Quantity
Enter the project quantity, length or sample need.
Destination
Add destination and postal code in the request form.
Documents
Request only the files applicable to the selected model and market.
APPLICATIONS & NEXT STEPS

Product uses

Wardrobe & Furniture Lighting — Narrow 3V/5V strips and several widths suit furniture details.

Gaming & Computer Desk Lighting — USB, RGB and fixed-color options support selected desk accents.

Retail & Display Lighting — Multiple constructions and densities support compact display lighting choices.

Related application guides

Application imagery and guidance illustrate possible uses only. They are not customer cases or performance proof.
