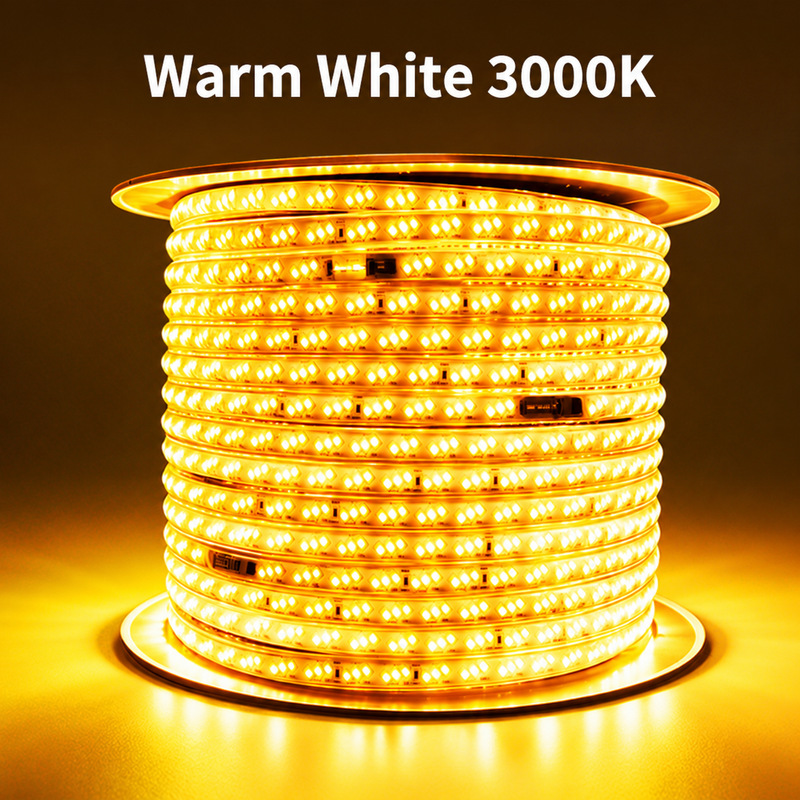

Warm-white triple-row LED strip reel
Flexible LED strips

36V IP67 Triple-Row Oblique 2835 LED Strip and 10 mm Connector

A 36V IP67 triple-row oblique 2835 strip in 3000K or 6000K, plus a separate 10 mm 2-pin solderless connector accessory.

Model
ULT-8281EAD3
Product type
SMD flexible LED strips
Available configurations
3
From USD 1.13 for this configurationReference price. Contact us for volume pricing. Shipping and taxes excluded.
Get a quoteChoose configuration
PRODUCT OVERVIEW

36V IP67 Triple-Row Oblique 2835 LED Strip and 10 mm Connector

The main strip uses a triple-row oblique 2835 layout with 180 LEDs/m, a 12 mm board width and IP67 protection. Current strip variants separate 3000K warm white and 6000K white. The third listed variant is not another strip: it is a 2-pin, 10 mm-pitch solderless connector accessory. The connector is sold separately from the LED strip.

  • 36V low-voltage strip
  • Triple-row oblique 2835 layout
  • 180 LEDs/m shown
  • 12 mm board width shown

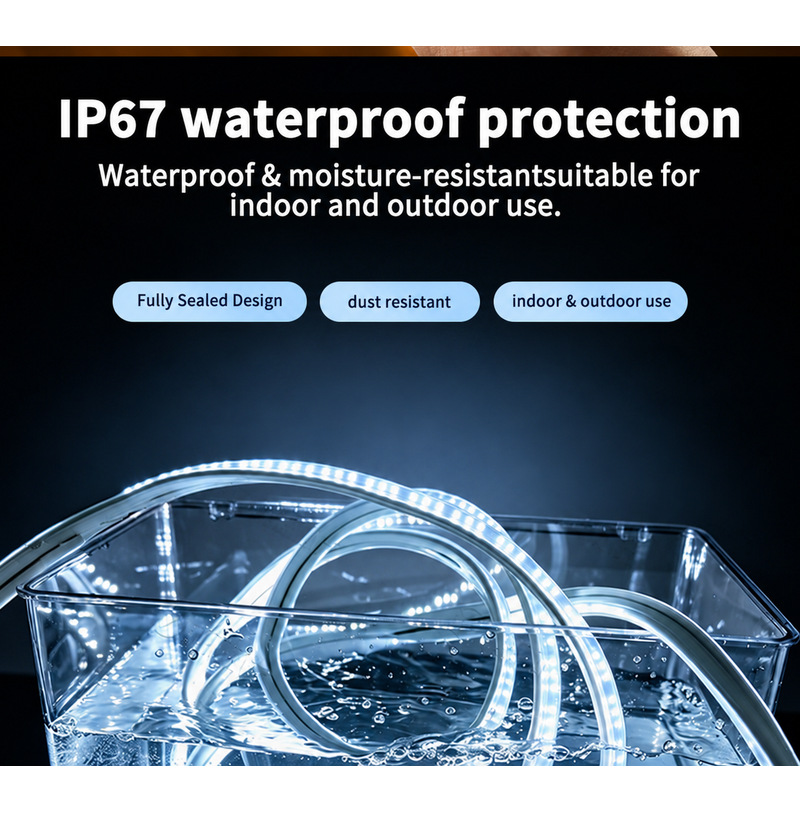

  • IP67 protection shown
  • Separate 2-pin 10 mm solderless connector option
PRODUCT GUIDANCE

Plan the right configuration.

Product information by ULANTU

Choose the strip body
The main 36V IP67 strip uses a triple-row oblique 2835 layout at 180 LEDs/m on a shown 12 mm board. Select 3000K or 6000K for the strip.
Keep the connector separate

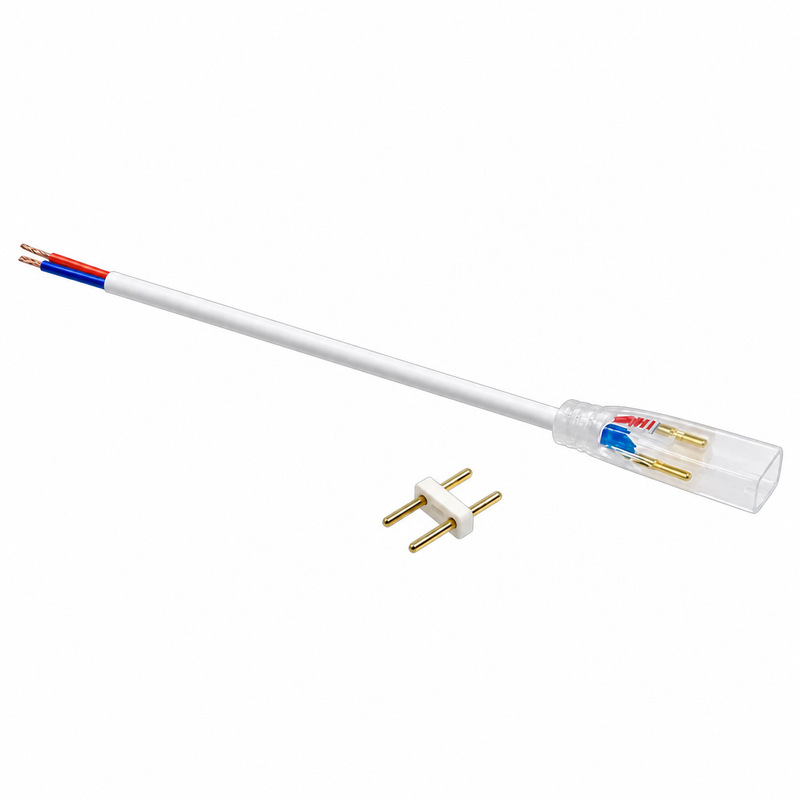

ULT-8281EAD3-V0003 is a separate 2-pin, 10 mm-pitch solderless connector accessory. It is not a strip length, is not included with every strip, and does not determine the strip From price.
Plan power, cutting and sealing
Use a matching 36V power supply, never direct 220V mains. Cut only at the marked 1 m points, align the connector pins with the two contacts and reseal cut and connection points where moisture protection is required.
PRODUCT DETAILS

Power, Cutting and Connection

Use a 36V power supply sized for the selected run. Do not connect the strip directly to 220V mains. Cut only at the marked 1 m points. For the solderless connector, align the two strip contacts with the connector pins and lock the connection securely. Reseal cut and connection points when the installation must retain moisture protection.

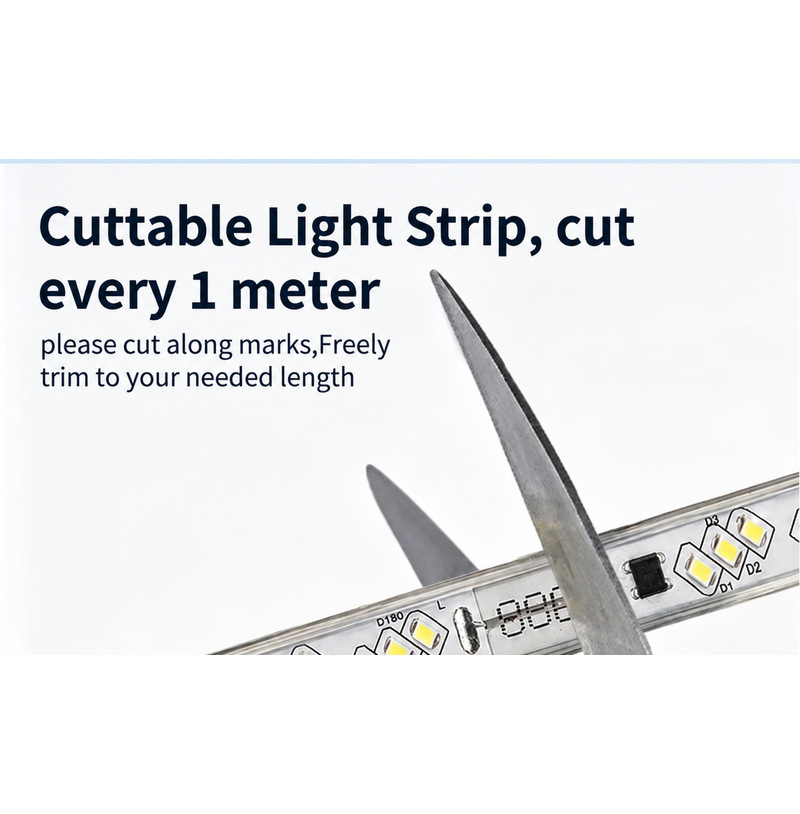

Scissors aligned with the marked cut line on the LED strip
Cut-point detail36V main strip variants

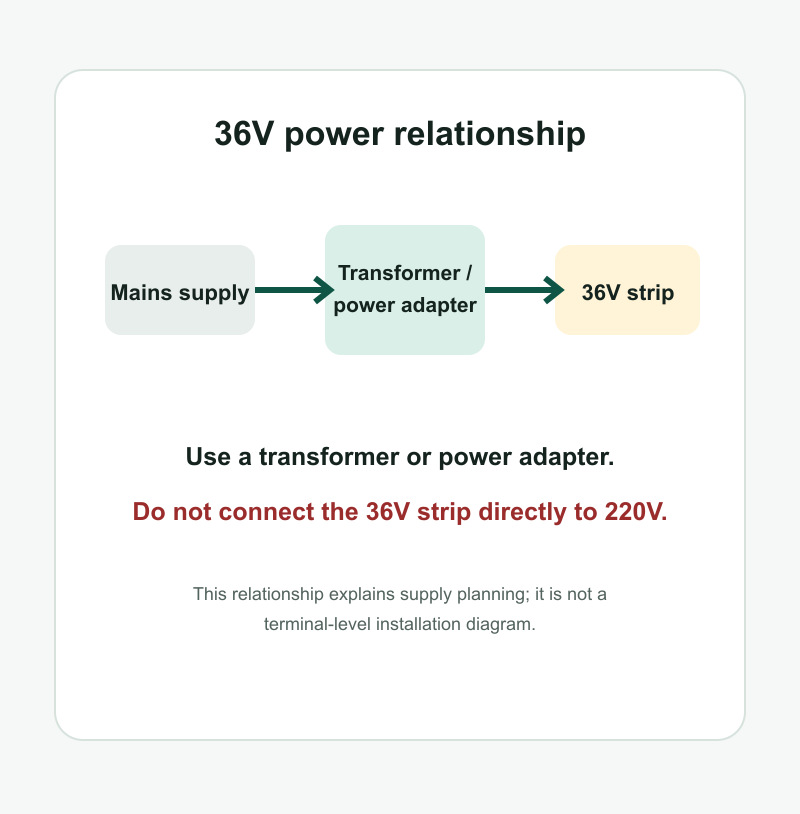

Power adapter relationship for a 36V LED strip
Power connection guidance36V main strip variants

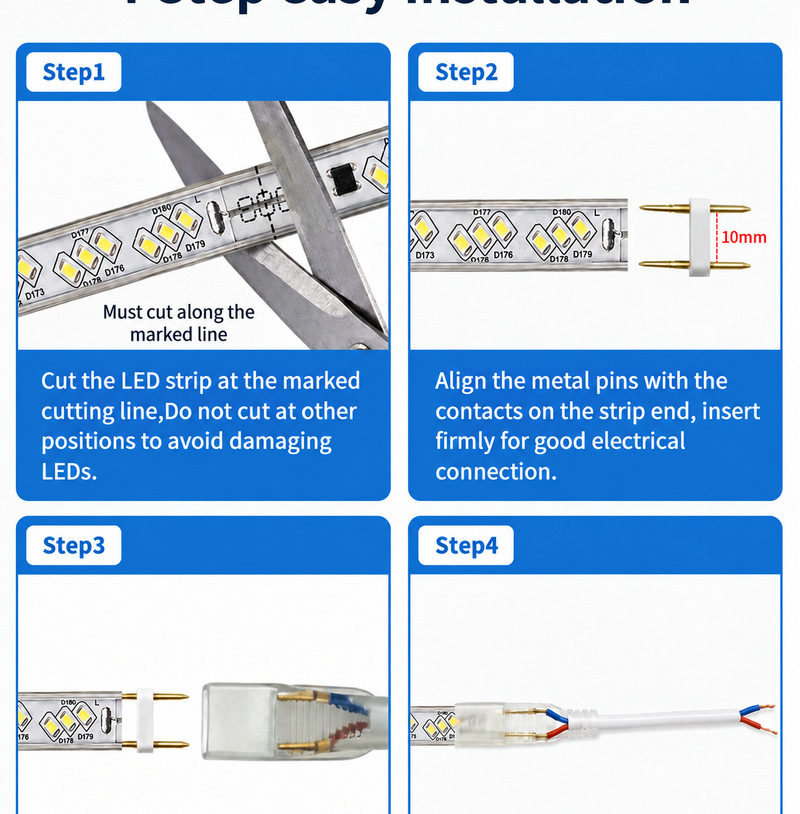

Four-step installation sequence for the separate 2-pin connector
Connector installation sequence10 mm 2-pin connector and compatible strip
PRODUCT DETAILS

Applications

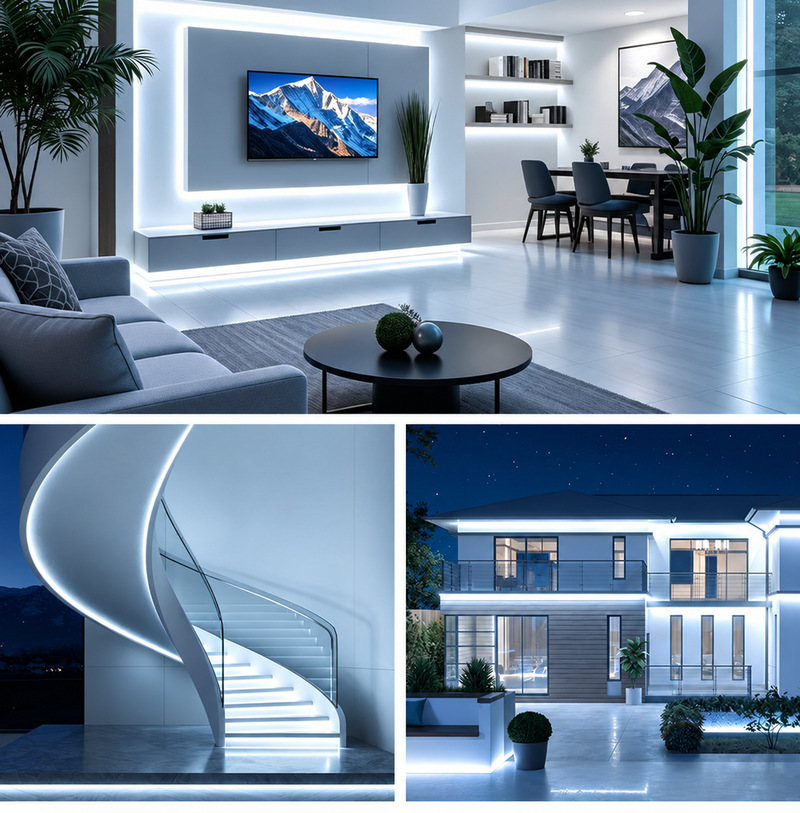

Cool-white linear lighting in living, stair and exterior architecture scenes
Application examplesGeneral strip applications; not an exact installed SKU claim

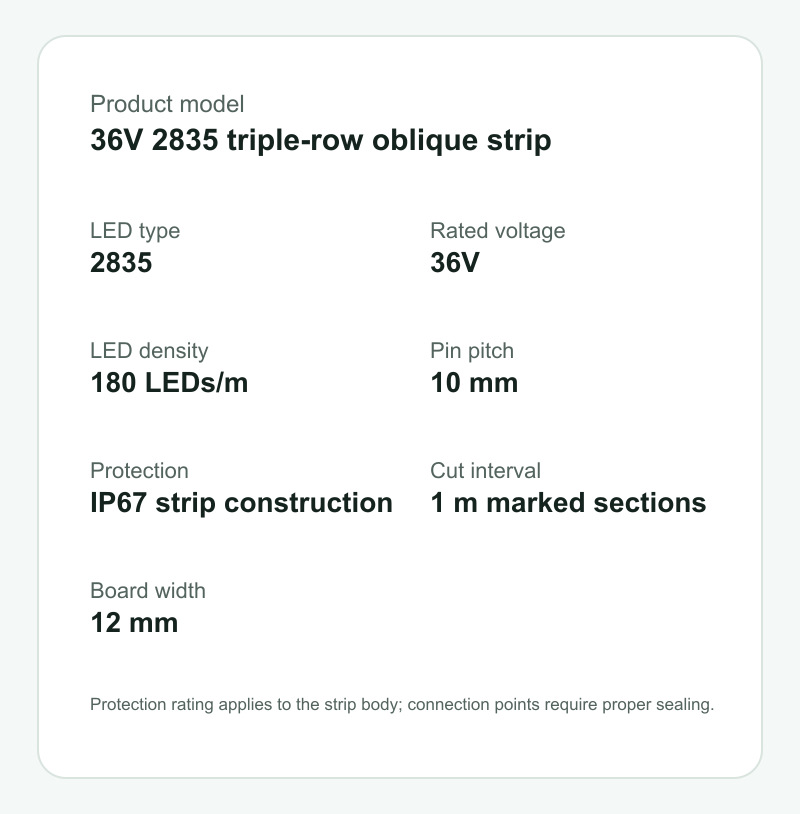

PARAMETERS

Review the available product details.

Strip voltage
36V
LED package
2835
LED density
180 LEDs/m
Board width shown
12 mm
Protection shown
IP67
Cut interval shown
1 m
Strip colors
3000K warm white or 6000K white
Accessory
2-pin, 10 mm-pitch solderless connector
CONFIGURATIONS

Choose from 3 available configurations.

Choose 3000K or 6000K for the strip body. Variant ULT-8281EAD3-V0003 is a separate 2-pin 10 mm connector accessory, not a strip length or complete strip set.

Use the search to narrow by voltage, color, length, plug, controller or model text.

SELECTION GUIDANCE

Confirm the complete requirement.

Product selection
Use a 36V power supply sized for the selected run. Do not connect the strip directly to 220V mains. Cut only at the marked 1 m points. For the solderless connector, align the two strip contacts with the connector pins and lock the connection securely. Reseal cut and connection points when the installation must retain moisture protection.
Quantity
Enter the project quantity, length or sample need.
Destination
Add destination and postal code in the request form.
Documents
Request only the files applicable to the selected model and market.
