12V and 24V dual-white LED strip boards
Flexible LED strips

5V, 12V and 24V 2835 Dual-White LED Strips

Eight variants. CRI 95 applies only to the 24V 8mm 192-LED plated-board version. Match the controller and supply to the exact strip voltage.

Model
ULT-783BF97B
Product type
SMD and flexible LED strips
Available configurations
8
From USD 0.69 for this configurationReference price. Contact us for volume pricing. Shipping and taxes excluded.
Get a quoteChoose configuration
PRODUCT OVERVIEW

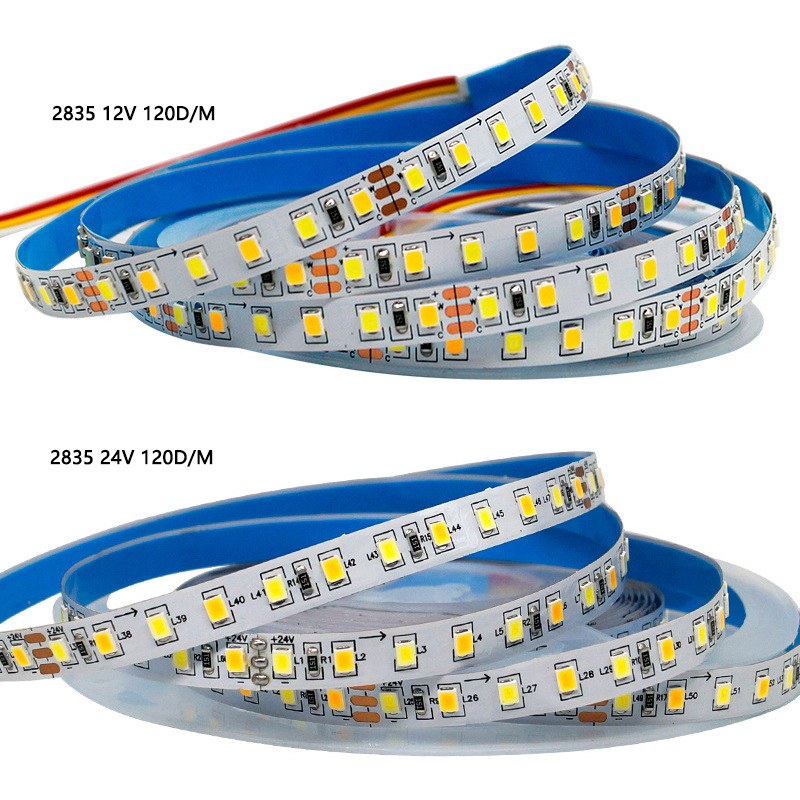

5V, 12V and 24V 2835 Dual-White LED Strips

Dual-colour-temperature strips with 5mm and 8mm PCB options for mirror frames, illuminated displays and interior profiles. Select voltage, PCB width and board construction together. Most configurations use 120 LEDs/m; a separate 24V, 8mm, 192-LED version carries a CRI 95 designation. That designation does not apply to all options. Plated and single-sided boards remain separate selections. The power supply and colour-temperature controller are not included with the strip.

  • 5V, 12V and 24V options

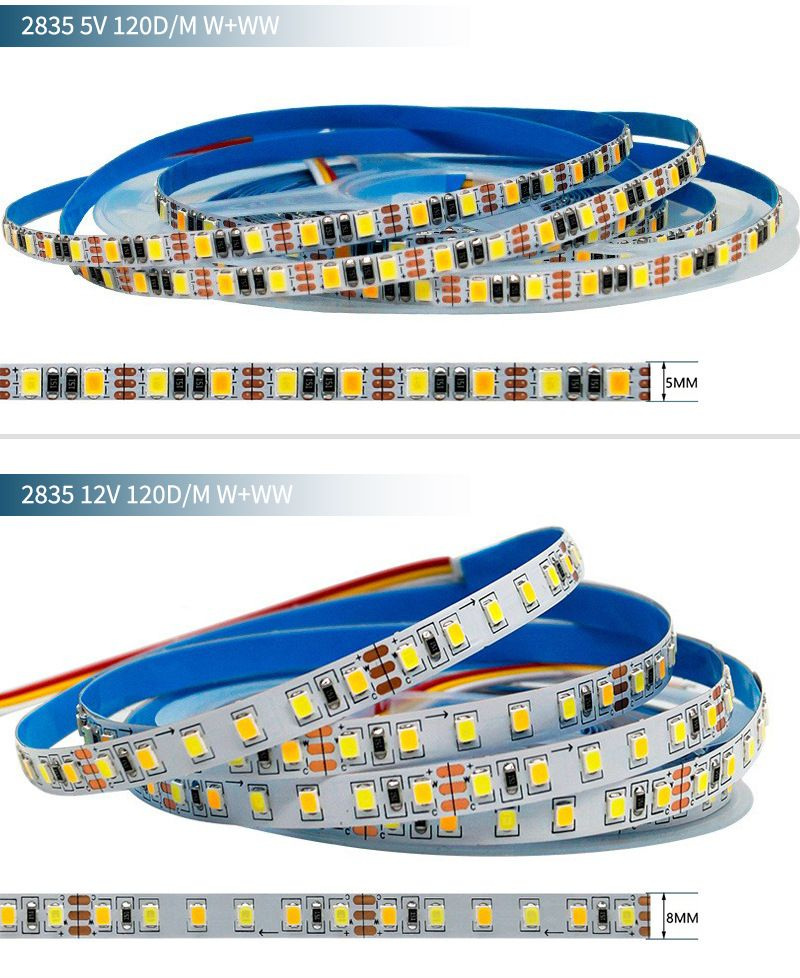

  • 5mm and 8mm PCB choices

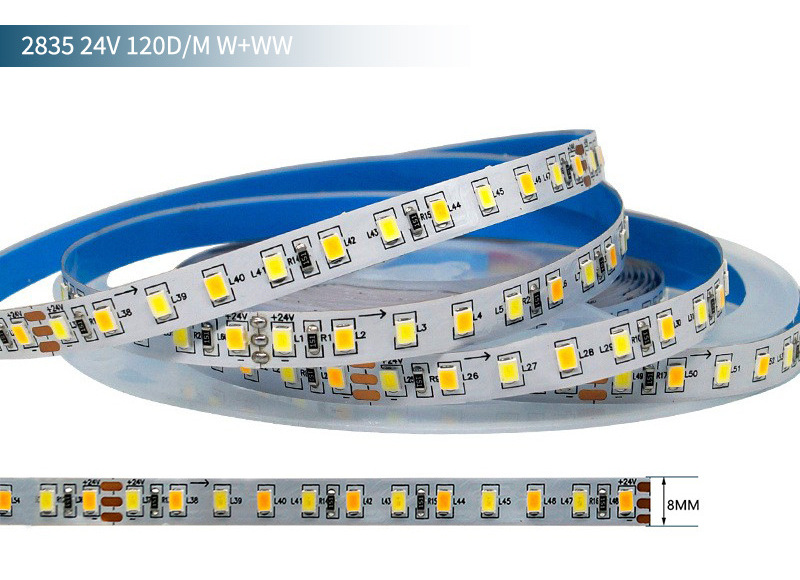

  • 120-LED and selected 192-LED versions

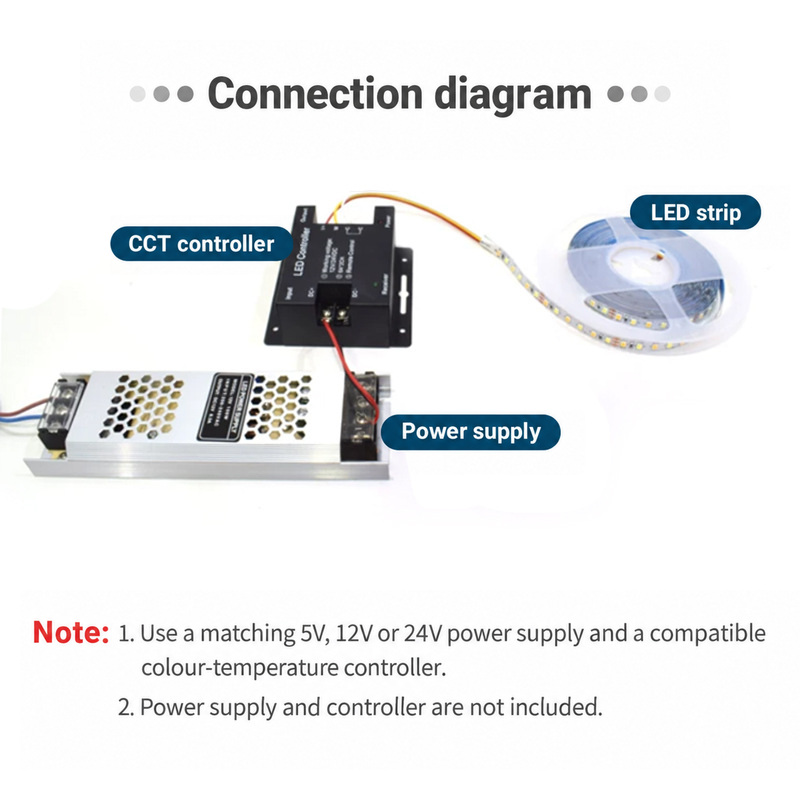

  • Dual-white control with a suitable controller
  • Non-waterproof strip
PRODUCT GUIDANCE

Plan the right configuration.

Product information by ULANTU

Available configurations
Eight variants. CRI 95 applies only to the 24V 8mm 192-LED plated-board version. Match the controller and supply to the exact strip voltage.
Selection and installation

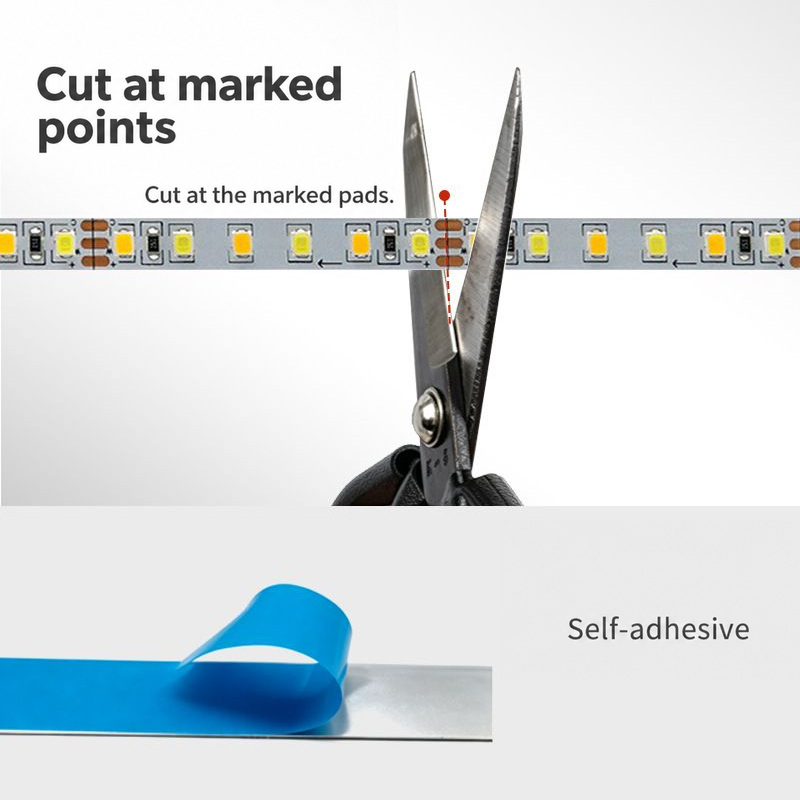

Use in dry locations. Do not connect a low-voltage strip directly to mains. Cut at marked pads, maintain polarity and fit the selected width within the channel or frame.

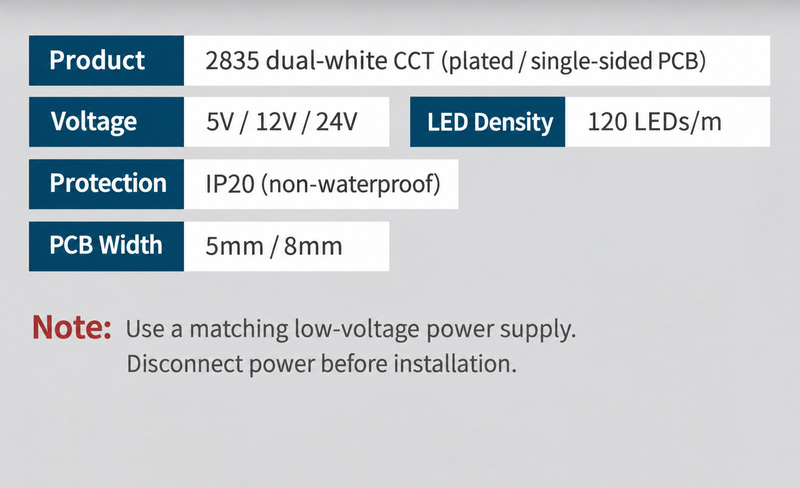

PARAMETERS

Review the available product details.

Voltage options
5V, 12V, 24V (by SKU).
Width / dimension designations
5mm, 8mm (by SKU).
CONFIGURATIONS

Choose from 8 available configurations.

Eight variants. CRI 95 applies only to the 24V 8mm 192-LED plated-board version. Match the controller and supply to the exact strip voltage.

Use the search to narrow by voltage, color, length, plug, controller or model text.

SELECTION GUIDANCE

Confirm the complete requirement.

Product selection
Use in dry locations. Do not connect a low-voltage strip directly to mains. Cut at marked pads, maintain polarity and fit the selected width within the channel or frame.
Quantity
Enter the project quantity, length or sample need.
Destination
Add destination and postal code in the request form.
Documents
Request only the files applicable to the selected model and market.
APPLICATIONS & NEXT STEPS

Product uses

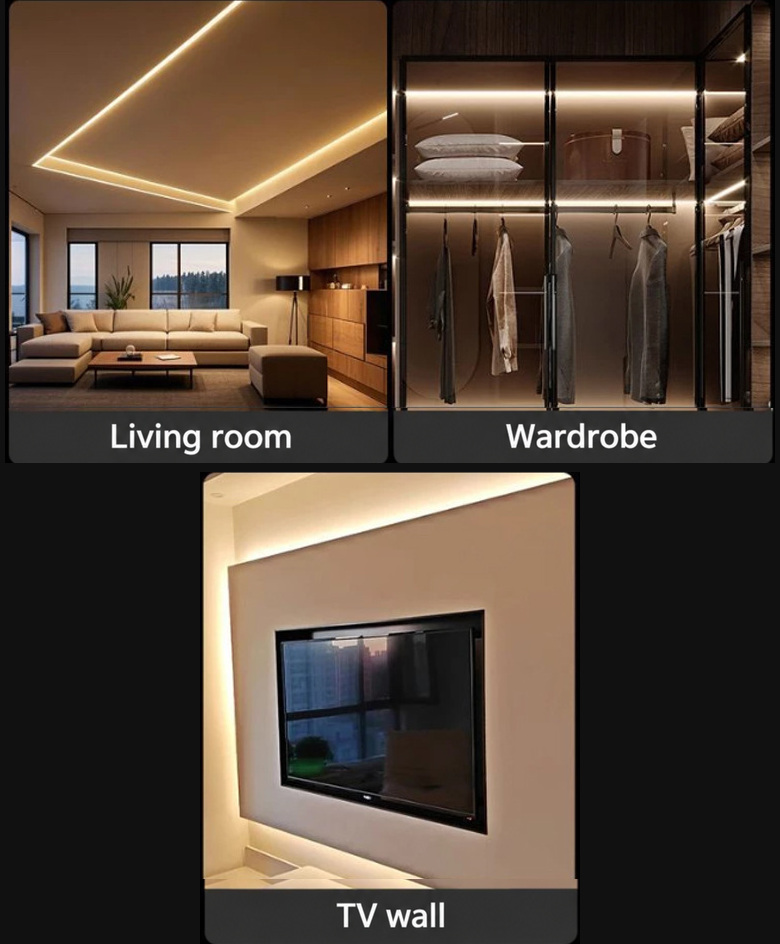

Short strip runs and appropriate control options fit shelf and cabinet details.

Selectable light colours and strip formats can highlight display edges and shelves.

Compact strip and power configurations support small illuminated assemblies.

Related application guides

Application imagery and guidance illustrate possible uses only. They are not customer cases or performance proof.
