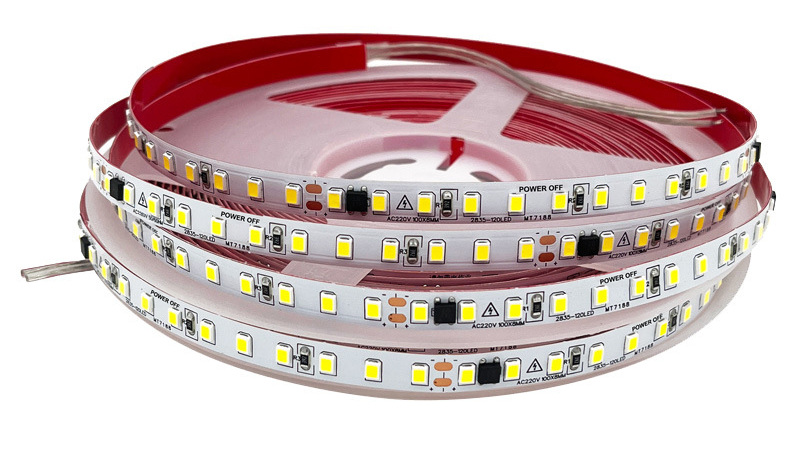

220V bare LED strip reel with red adhesive backing
Flexible LED strips

220V 2835 Slim LED Strips for Linear Profiles

23 variants cover colour, width, board construction and row layout. Aluminium profiles are not automatically supplied with the strip.

Model
ULT-89EE9559
Product type
SMD and flexible LED strips
Available configurations
23
From USD 0.65 for this configurationReference price. Contact us for volume pricing. Shipping and taxes excluded.
Get a quoteChoose configuration
PRODUCT OVERVIEW

220V 2835 Slim LED Strips for Linear Profiles

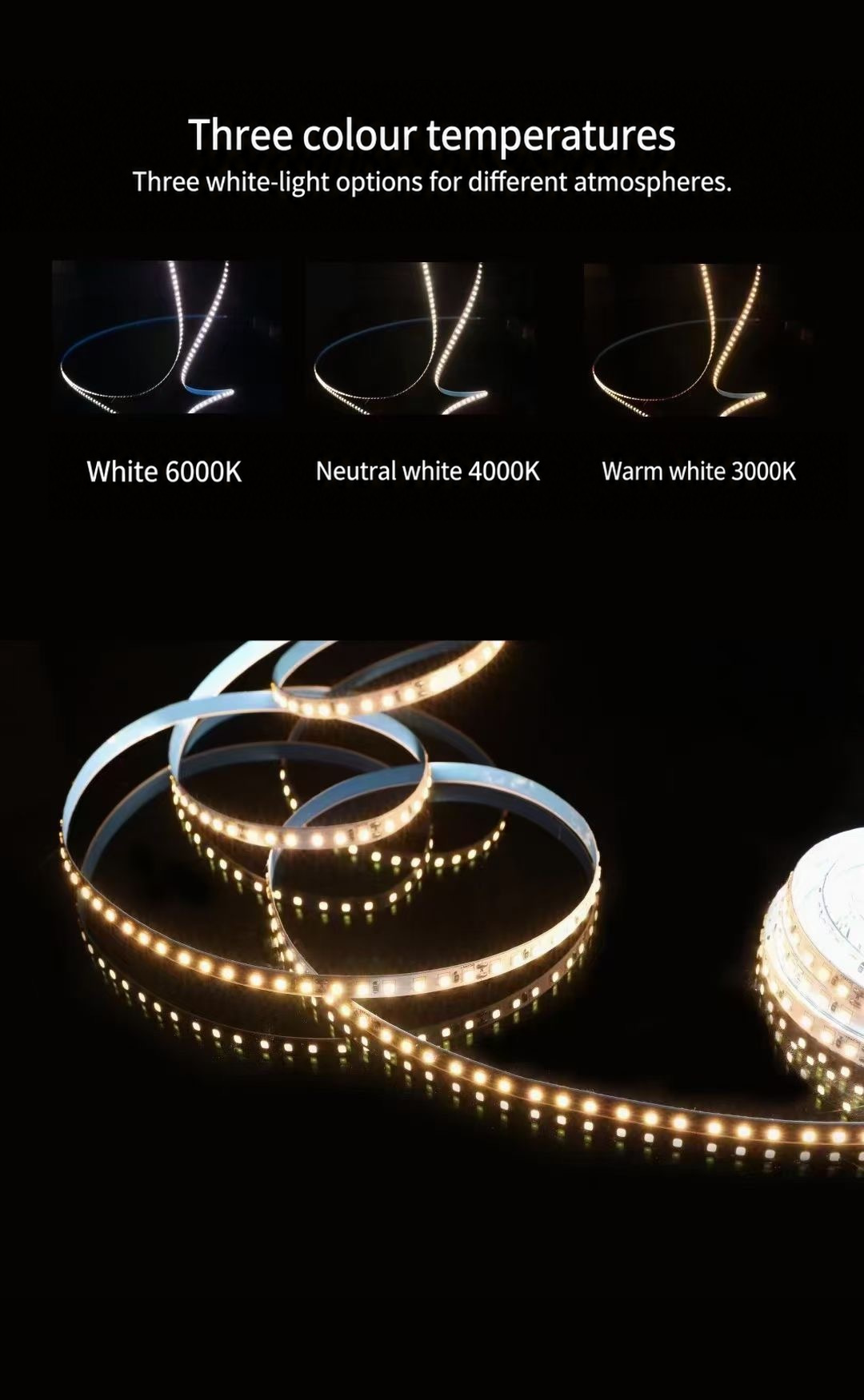

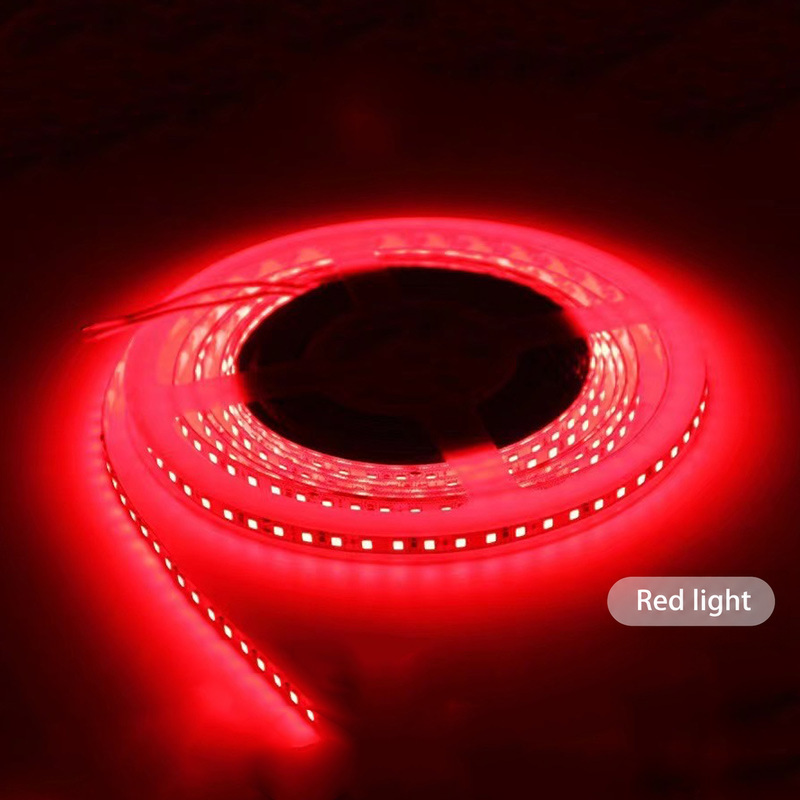

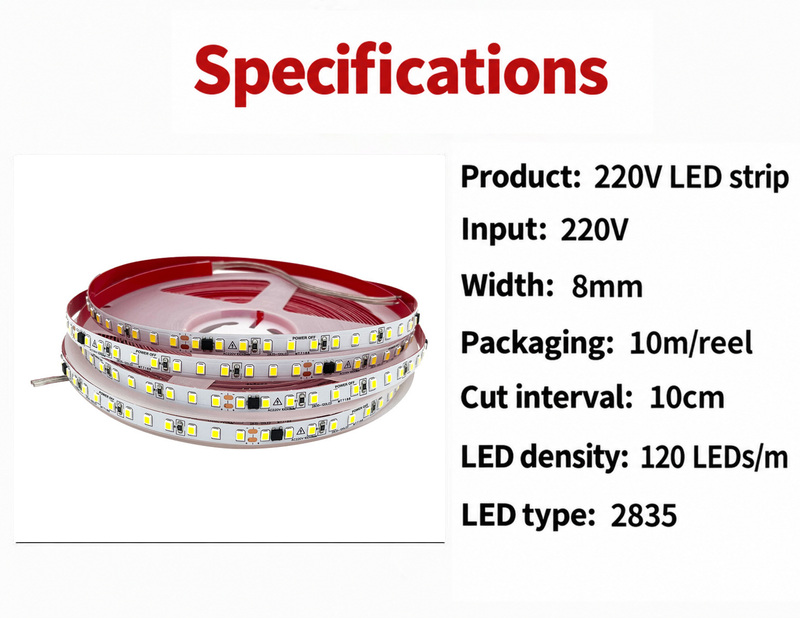

Mains-voltage flexible strips with several PCB widths and LED layouts for concealed interior linear lighting. Choose 120- or 240-LED configurations, including 10mm single-row and 15mm double-row versions where listed. Warm white 3000K, neutral white 4000K and white 6000K are offered across selected boards; red, blue, ice blue, pink and green are separate fixed-colour choices. The illustrated 8mm 120-LED strip has 10cm cutting marks. Different widths and layouts must not be treated as the same electrical or dimensional configuration.

  • 220V strip configurations
  • 5, 6, 8, 10 and 15mm width choices
  • 120- and 240-LED layouts
  • Die-cut and plated PCB options
  • White-light and fixed decorative colours
PRODUCT GUIDANCE

Plan the right configuration.

Product information by ULANTU

Available configurations
23 variants cover colour, width, board construction and row layout. Aluminium profiles are not automatically supplied with the strip.
Selection and installation

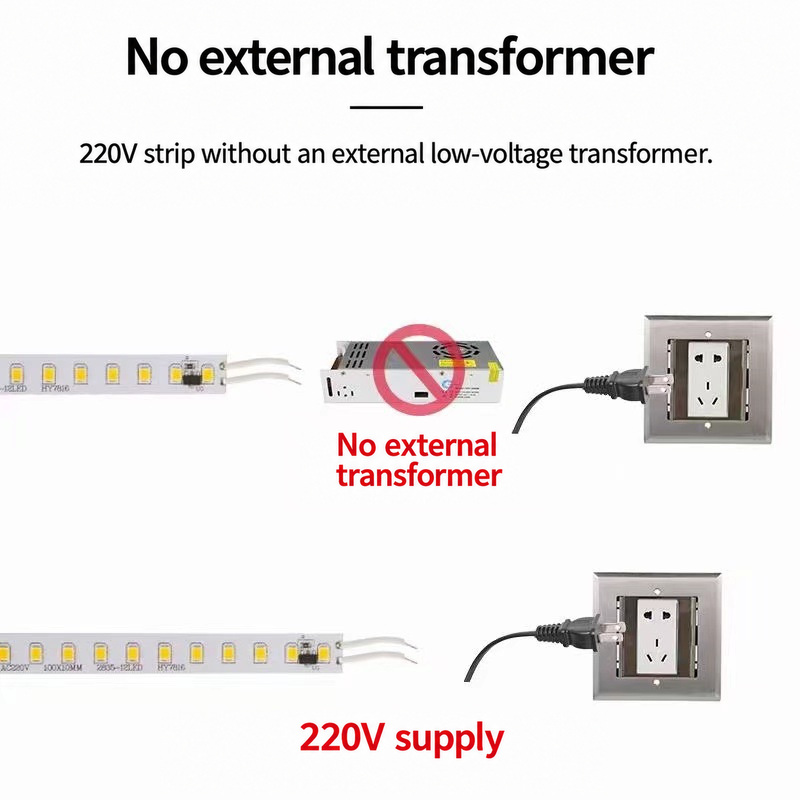

This is a mains-voltage bare-strip installation, not a low-voltage USB product. Disconnect power before cutting or connecting and provide suitable insulation and an appropriate enclosure. Follow the marked cut positions of the selected PCB.
PARAMETERS

Review the available product details.

Voltage options
220V (by SKU).
Width / dimension designations
5mm, 6mm, 8mm, 10mm, 15mm (by SKU).
CONFIGURATIONS

Choose from 23 available configurations.

23 variants cover colour, width, board construction and row layout. Aluminium profiles are not automatically supplied with the strip.

Use the search to narrow by voltage, color, length, plug, controller or model text.

SELECTION GUIDANCE

Confirm the complete requirement.

Product selection
This is a mains-voltage bare-strip installation, not a low-voltage USB product. Disconnect power before cutting or connecting and provide suitable insulation and an appropriate enclosure. Follow the marked cut positions of the selected PCB.
Quantity
Enter the project quantity, length or sample need.
Destination
Add destination and postal code in the request form.
Documents
Request only the files applicable to the selected model and market.
APPLICATIONS & NEXT STEPS

Product uses

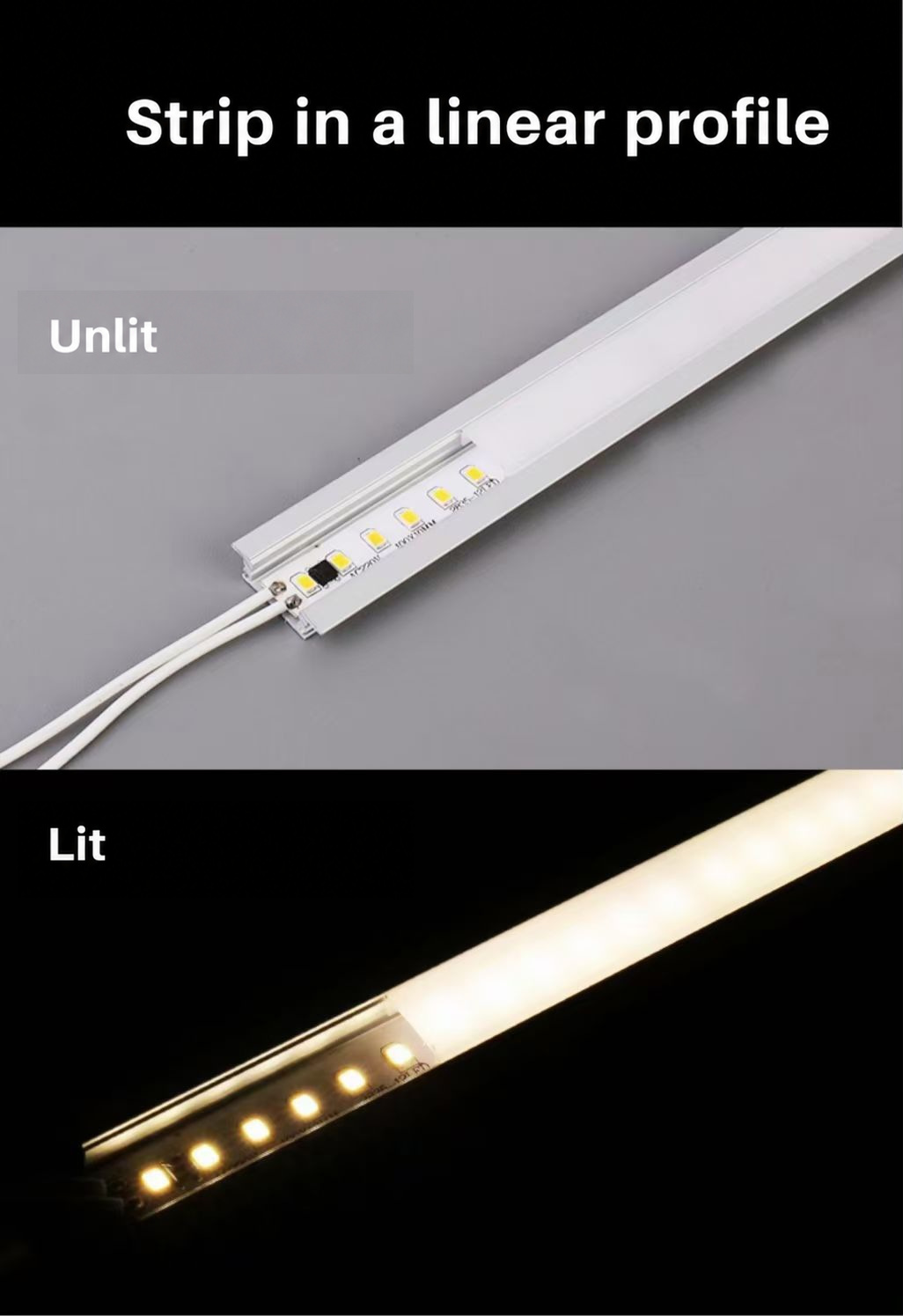

The flexible strip follows recesses and room edges for indirect light.

Short strip runs and appropriate control options fit shelf and cabinet details.

Selectable light colours and strip formats can highlight display edges and shelves.

Related application guides

Application imagery and guidance illustrate possible uses only. They are not customer cases or performance proof.
