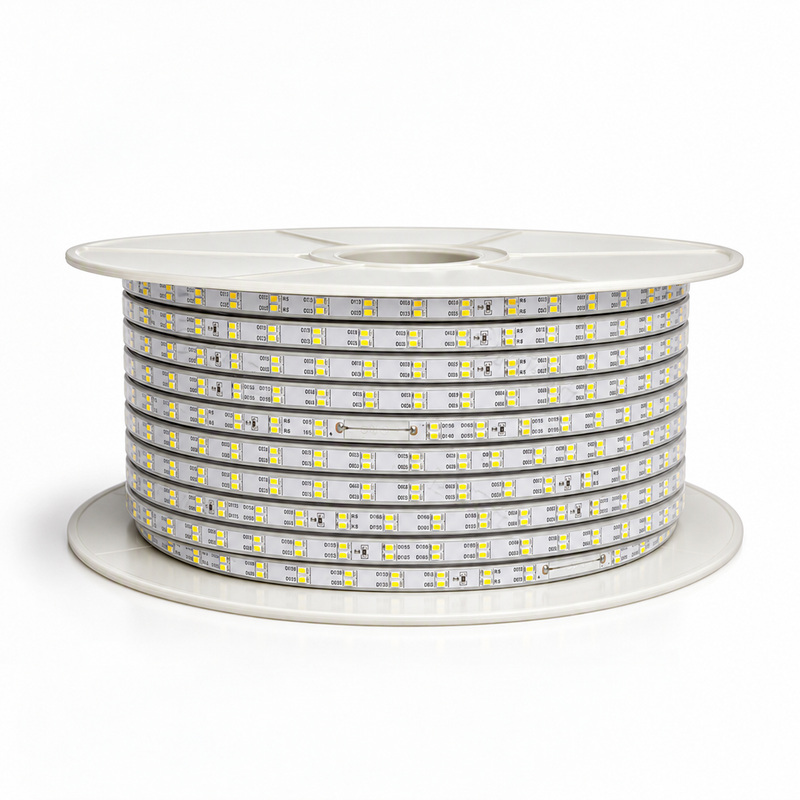

Dual-row LED strip on a reel
Flexible LED strips

220V 2835 Diagonal Double-Row Strip, 120 LEDs/m

Two strip colours and one connector accessory. Check the actual contact spacing when ordering the connector.

Model
ULT-7395B3B6
Product type
SMD and flexible LED strips
Available configurations
3
From USD 0.72 for this configurationReference price. Contact us for volume pricing. Shipping and taxes excluded.
Get a quoteChoose configuration
PRODUCT OVERVIEW

220V 2835 Diagonal Double-Row Strip, 120 LEDs/m

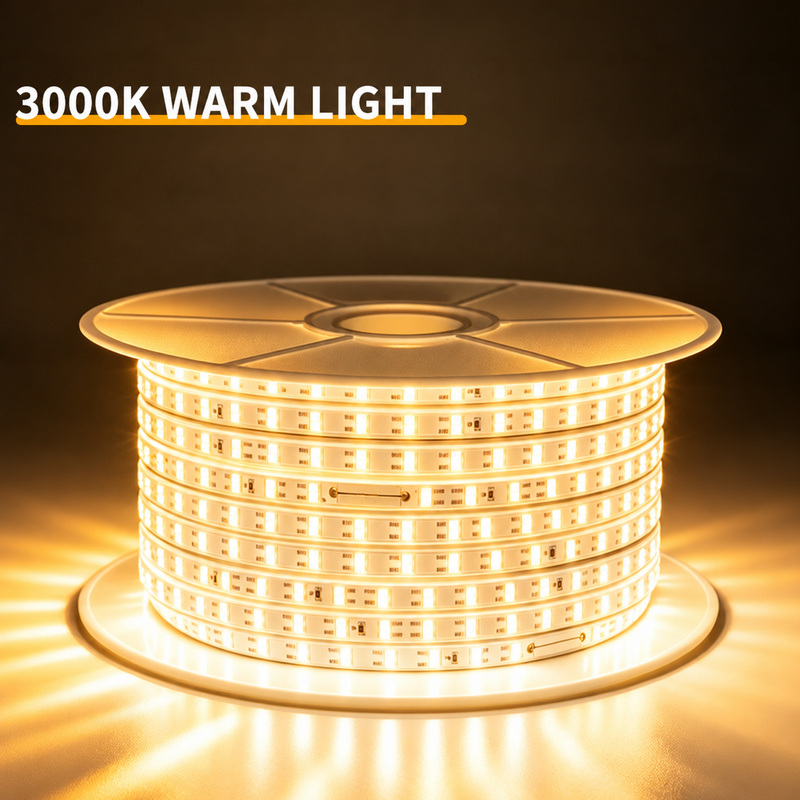

Encapsulated double-row LED strip in white and warm white, with an independently selectable solderless connector. The illustrated strip section is 11mm wide and 4mm thick, with 120 LEDs/m and marked 1m cutting intervals. The separate 2-pin connector selection specifies an 8.5mm pin pitch. Choose the strip colour and connector separately; the connector is not part of a bare-strip purchase.

  • 220V, 2835 double-row strip
  • 120 LEDs/m

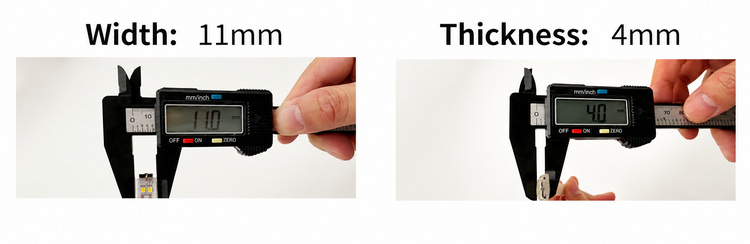

  • 11 × 4mm illustrated section

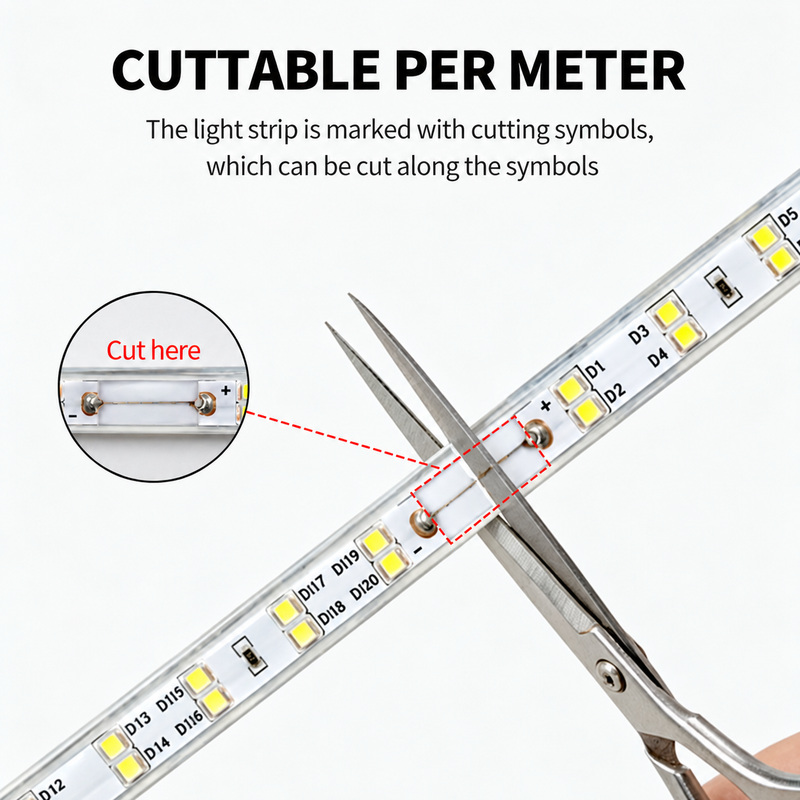

  • 1m marked cut intervals

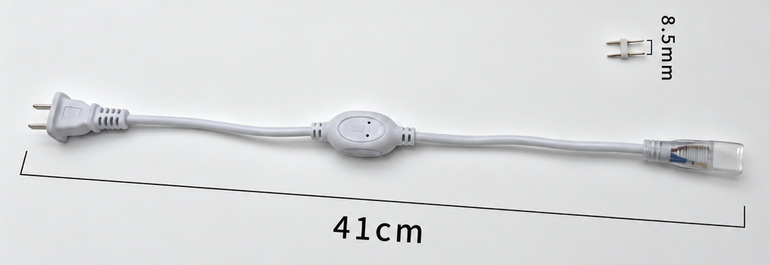

  • Separate 8.5mm-pitch connector
PRODUCT GUIDANCE

Plan the right configuration.

Product information by ULANTU

Available configurations
Two strip colours and one connector accessory. Check the actual contact spacing when ordering the connector.
Selection and installation

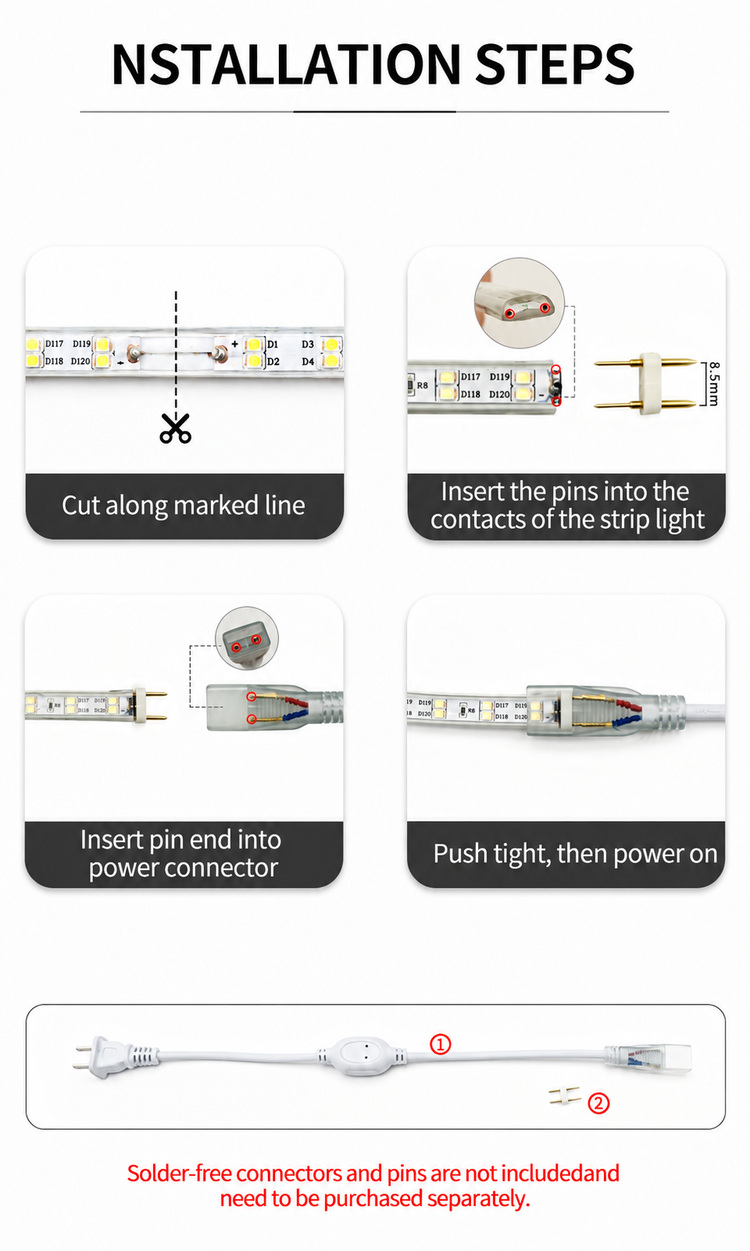

Disconnect power before cutting or connecting. Fully unroll before energising and align the pins with the strip contacts. Protect the joints and strip ends against moisture.
PARAMETERS

Review the available product details.

Voltage options
220V (by SKU).
Width / dimension designations
11mm (by SKU).
CONFIGURATIONS

Choose from 3 available configurations.

Two strip colours and one connector accessory. Check the actual contact spacing when ordering the connector.

Use the search to narrow by voltage, color, length, plug, controller or model text.

SELECTION GUIDANCE

Confirm the complete requirement.

Product selection
Disconnect power before cutting or connecting. Fully unroll before energising and align the pins with the strip contacts. Protect the joints and strip ends against moisture.
Quantity
Enter the project quantity, length or sample need.
Destination
Add destination and postal code in the request form.
Documents
Request only the files applicable to the selected model and market.
APPLICATIONS & NEXT STEPS

Product uses

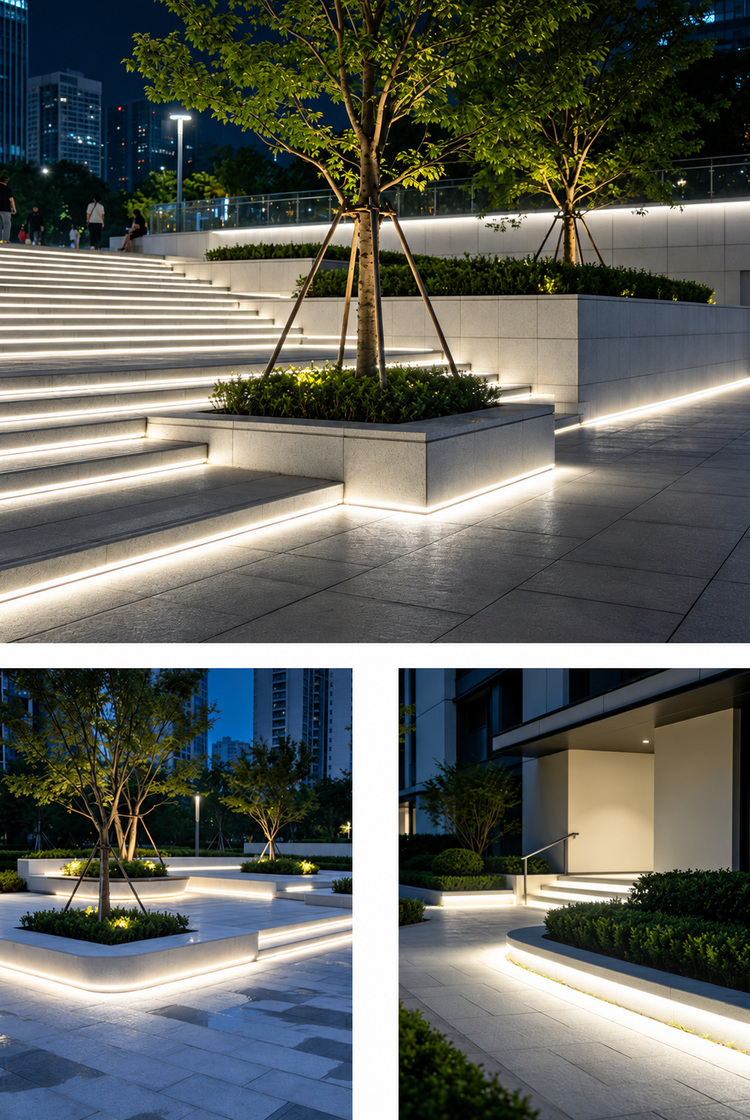

The encapsulated strip can follow garden or building outlines with suitable sealed connections.

The flexible strip follows recesses and room edges for indirect light.

Selectable light colours and strip formats can highlight display edges and shelves.
