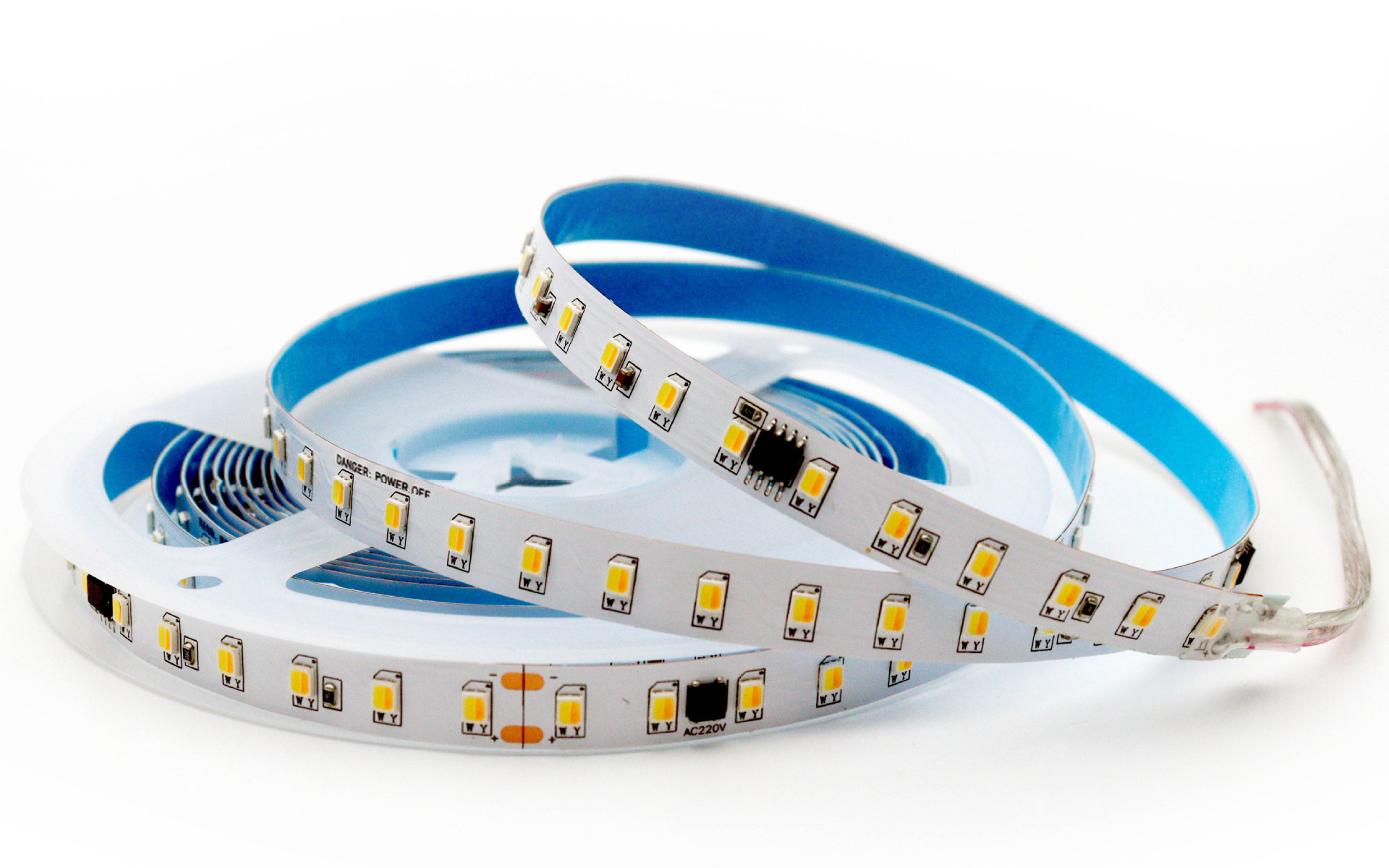

Three-white-mode LED strip reel with dual-colour LED packages and blue adhesive liner
Flexible LED strips

220V 10mm 2835 Three-White-Mode LED Strip

One strip configuration. State the required total length and reel arrangement when requesting a quote.

Model
ULT-EDC3E428
Product type
SMD and flexible LED strips
Available configurations
1
From USD 2.03 / metreReference price. Contact us for volume pricing. Shipping and taxes excluded.
Get a quoteChoose configuration
PRODUCT OVERVIEW

220V 10mm 2835 Three-White-Mode LED Strip

A 10mm plated-PCB strip with 104 LEDs/m and three white-light modes for interior linear lighting. This configuration provides warm, neutral and white-light operation in a flexible strip with 25cm cut sections. The strip is priced per metre and normally supplied in 10m reels. It is a 220V strip, not a low-voltage component, so the installation requires appropriate electrical isolation and protection.

  • 220V input
  • 10mm plated PCB
  • 104 LEDs/m
  • 25cm cutting sections
  • Three white-light modes
PRODUCT GUIDANCE

Plan the right configuration.

Product information by ULANTU

Available configurations
One strip configuration. State the required total length and reel arrangement when requesting a quote.
Selection and installation

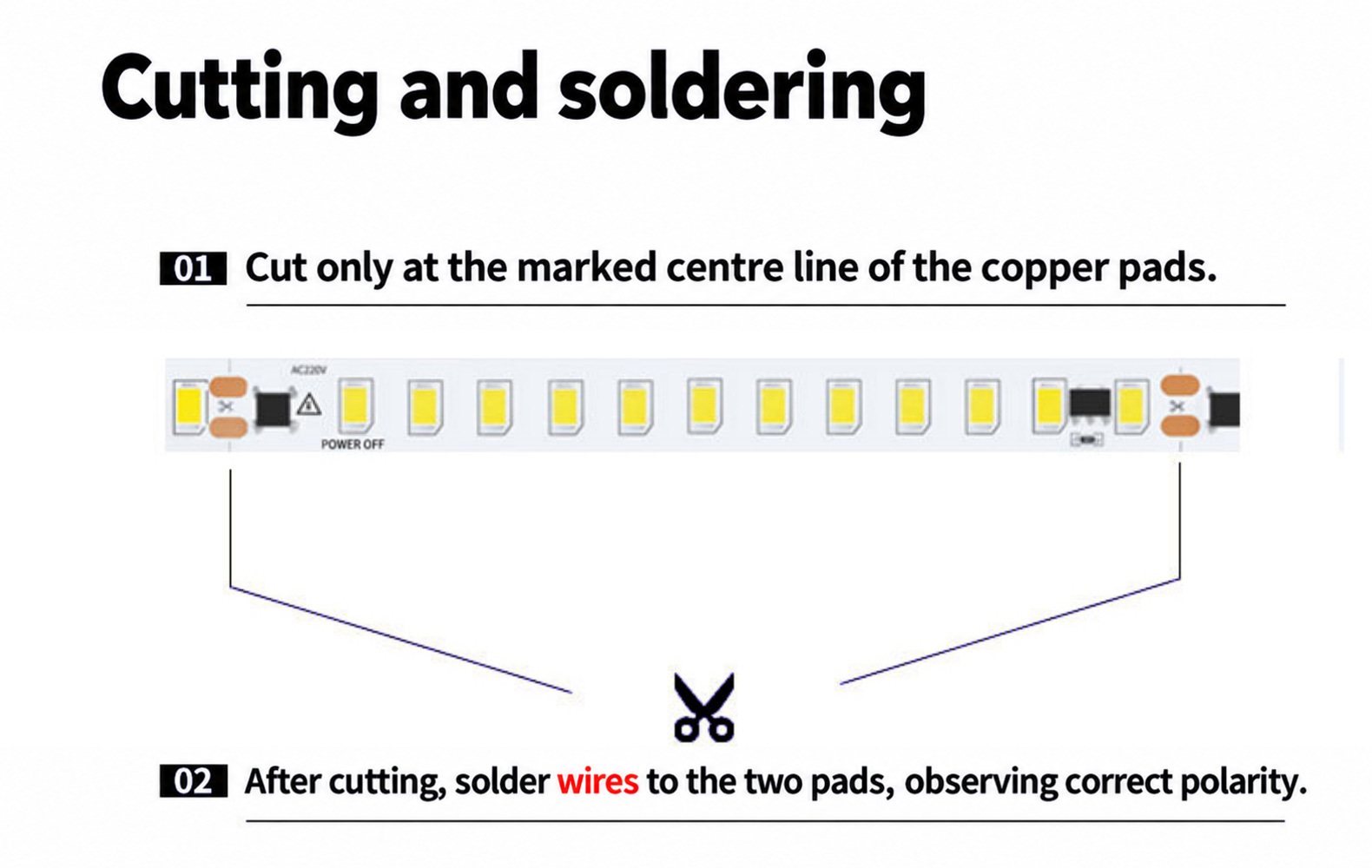

Never cut or connect the strip while energised. Follow the printed cut marks and preserve the correct connection polarity. Provide suitable insulation and enclosure for exposed mains-voltage parts.
PARAMETERS

Review the available product details.

Voltage options
220V (by SKU).
Width / dimension designations
10mm (by SKU).
CONFIGURATIONS

Choose from 1 available configurations.

One strip configuration. State the required total length and reel arrangement when requesting a quote.

Use the search to narrow by voltage, color, length, plug, controller or model text.

SELECTION GUIDANCE

Confirm the complete requirement.

Product selection
Never cut or connect the strip while energised. Follow the printed cut marks and preserve the correct connection polarity. Provide suitable insulation and enclosure for exposed mains-voltage parts.
Quantity
Enter the project quantity, length or sample need.
Destination
Add destination and postal code in the request form.
Documents
Request only the files applicable to the selected model and market.
APPLICATIONS & NEXT STEPS

Product uses

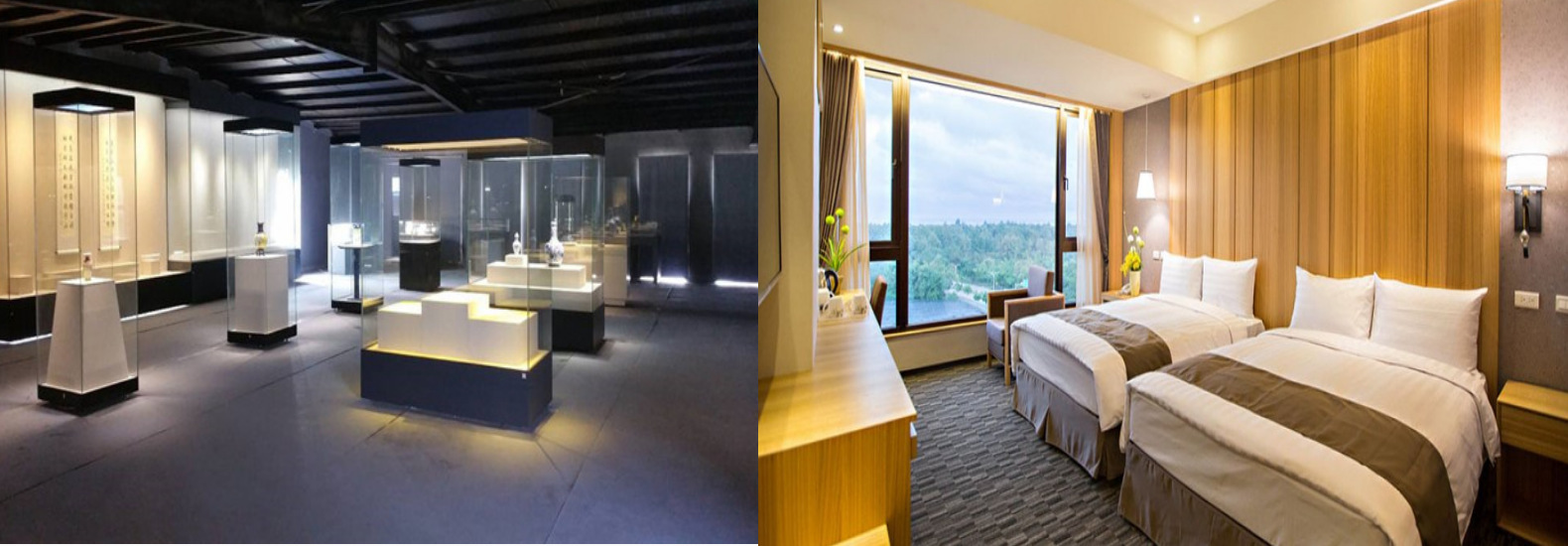

The flexible strip follows recesses and room edges for indirect light.

Selectable light colours and strip formats can highlight display edges and shelves.

Short strip runs and appropriate control options fit shelf and cabinet details.

Related application guides

Application imagery and guidance illustrate possible uses only. They are not customer cases or performance proof.
