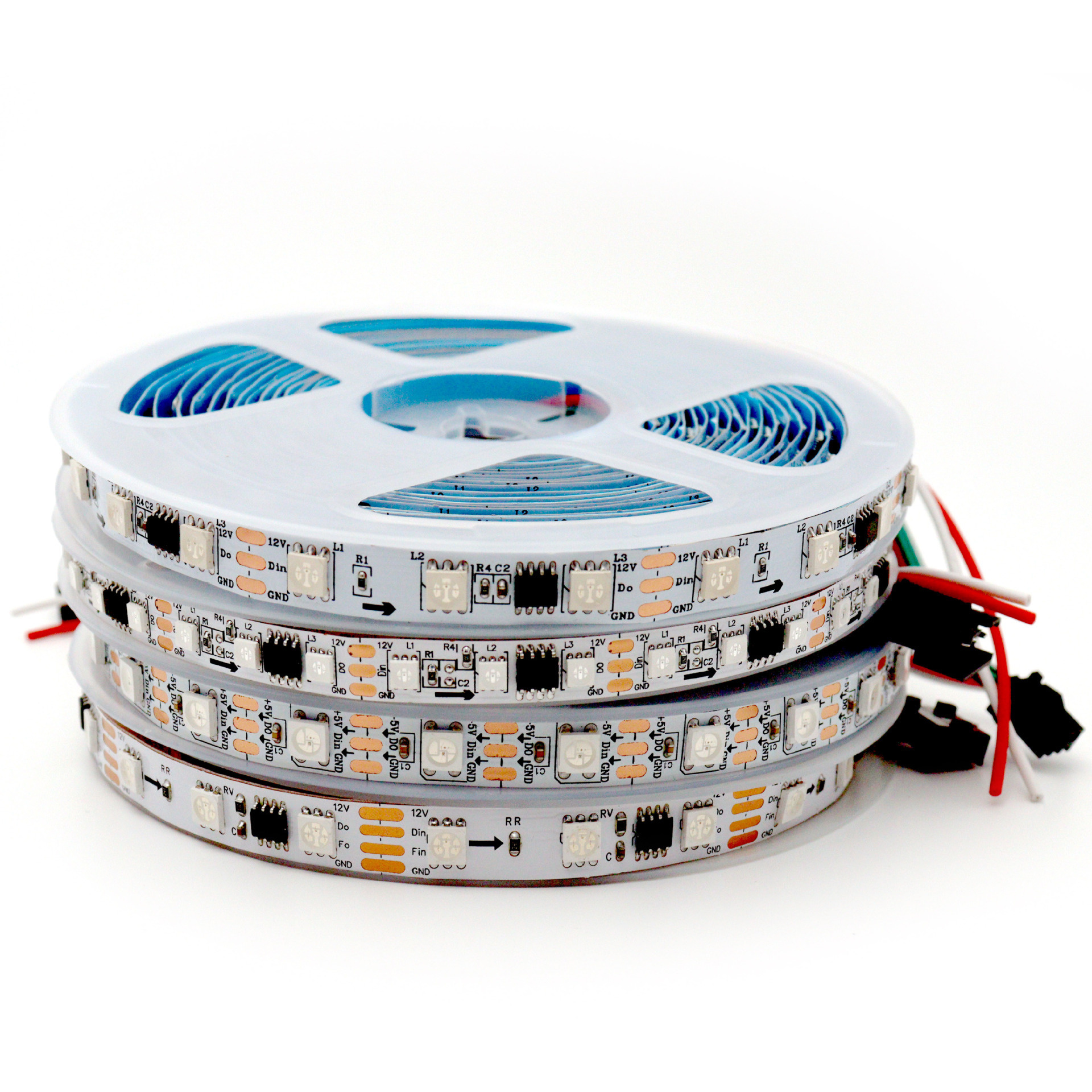

Coiled white-PCB addressable RGB flexible LED strips with wired connectors
Flexible LED strips

5V/12V/24V Addressable RGB Flexible LED Strip

An addressable RGB strip family with 5V, 12V and 24V options, multiple LED densities, PCB widths and IP20 or resin-coated IP65 constructions.

Model
ULT-A090B254
Product type
SMD and flexible LED strips
Available configurations
21
From USD 0.89 for this configurationReference price. Contact us for volume pricing. Shipping and taxes excluded.
Get a quoteChoose configuration
PRODUCT OVERVIEW

5V/12V/24V Addressable RGB Flexible LED Strip

This programmable RGB strip family covers 5V, 12V and 24V configurations. Listed options separate 18–144 LEDs/m, selected 5.5–12 mm PCB widths, white or black boards, built-in-IC formats and breakpoint-continuation versions. IP20 uncoated and resin-coated IP65 constructions are separate SKU choices. Select voltage, LED format, density, width and protection together before matching a controller and power supply.

  • 5V, 12V and 24V addressable formats
  • 18–144 LEDs/m by configuration
  • Selected 5.5–12 mm PCB widths
  • Built-in-IC and breakpoint-continuation options
  • IP20 and resin-coated IP65 choices
PRODUCT GUIDANCE

Plan the right configuration.

Product information by ULANTU

Choose the exact configuration
Choose the exact voltage, LED density, PCB width, IC/function description, board color and protection grade. No sales length is stated in the current variants, so each price applies only to its listed configuration.
Plan installation and compatibility
Use a controller and power supply that match the selected voltage and addressable-strip format. Confirm PCB width for the mounting channel, and do not treat an IP20 option as an IP65 option.
Configuration boundary
Voltage, LED density, PCB width, board color and protection grade vary by configuration. Quote the exact combination rather than treating every pictured strip as the same version.
PARAMETERS

Review the available product details.

Voltage
5V, 12V or 24V by SKU
Light type
Addressable RGB
LED density
18, 30, 60, 96 or 144 LEDs/m
PCB width
5.5, 6, 8, 10 or 12 mm where stated
Protection
IP20 uncoated or resin-coated IP65
Board color
White or black on selected SKUs
CONFIGURATIONS

Choose from 21 available configurations.

Choose the exact voltage, LED density, PCB width, IC/function description, board color and protection grade. No sales length is stated in the current variants, so each price applies only to its listed configuration.

Use the search to narrow by voltage, color, length, plug, controller or model text.

SELECTION GUIDANCE

Confirm the complete requirement.

Product selection
Use a controller and power supply that match the selected voltage and addressable-strip format. Confirm PCB width for the mounting channel, and do not treat an IP20 option as an IP65 option.
Quantity
Enter the project quantity, length or sample need.
Destination
Add destination and postal code in the request form.
Documents
Request only the files applicable to the selected model and market.
APPLICATIONS & NEXT STEPS

Product uses

Gaming & Computer Desk Lighting — Programmable color effects suit desks, monitors and gaming zones.

Gaming, Entertainment & Festive Lighting — Addressable effects support animated decorative scenes.

Exhibition & Event Lighting — Multiple voltage and protection choices support temporary display planning.

Related application guides

Application imagery and guidance illustrate possible uses only. They are not customer cases or performance proof.
