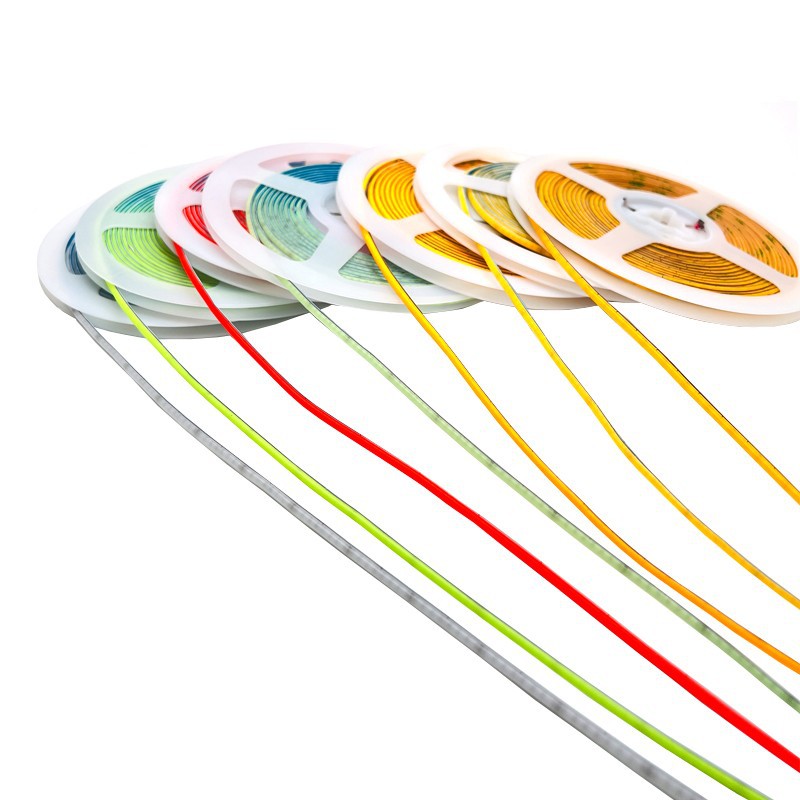

Ultra-narrow COB strips in several light colors
Flexible LED strips

3 mm Ultra-Narrow 5V/12V/24V COB LED Strip

A 3 mm ultra-narrow COB strip range with 5V, 12V and 24V options, 400 LEDs/m and nine white or fixed-color choices.

Model
ULT-84ED5973
Product type
COB LED strips
Available configurations
26
From USD 1.63 for this configurationReference price. Contact us for volume pricing. Shipping and taxes excluded.
Get a quoteChoose configuration
PRODUCT OVERVIEW

3 mm Ultra-Narrow 5V/12V/24V COB LED Strip

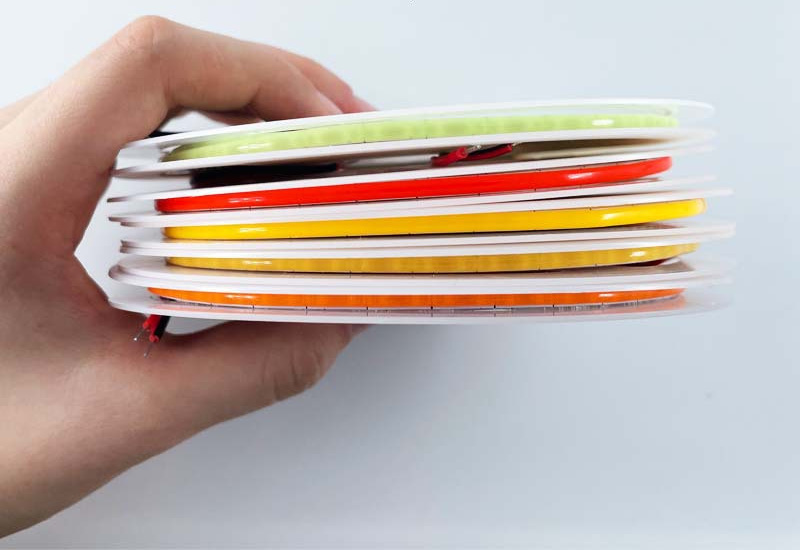

Designed for narrow channels and compact illuminated details, this COB strip uses a 3 mm profile with 400 LEDs/m, adhesive-backed installation and a flexible strip body. The 26 variants separate 5V, 12V and 24V versions across white, warm white, neutral white, red, blue, green, golden yellow, ice blue and pink. The pink range currently lists 5V and 12V only.

  • 3 mm ultra-narrow construction
  • 5V, 12V and 24V options
  • 400 LEDs/m shown

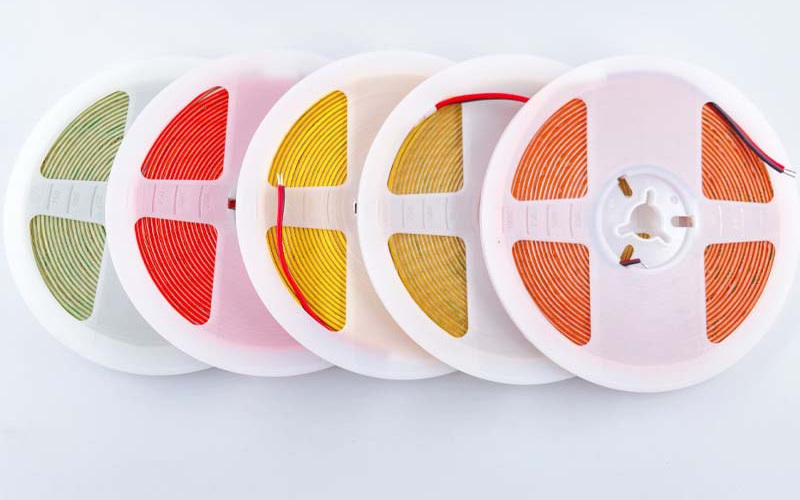

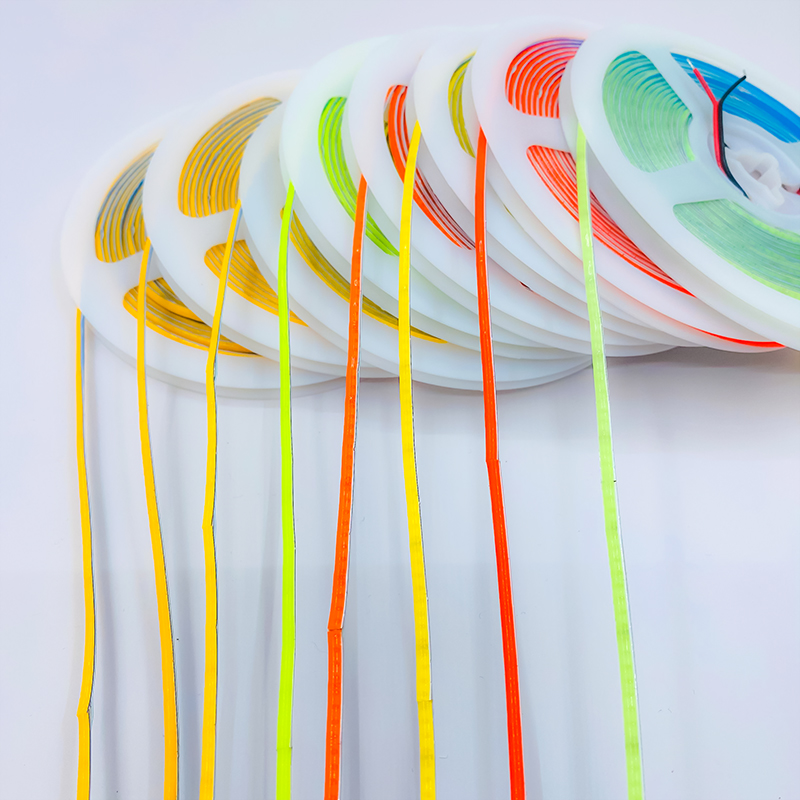

  • Nine light-color choices

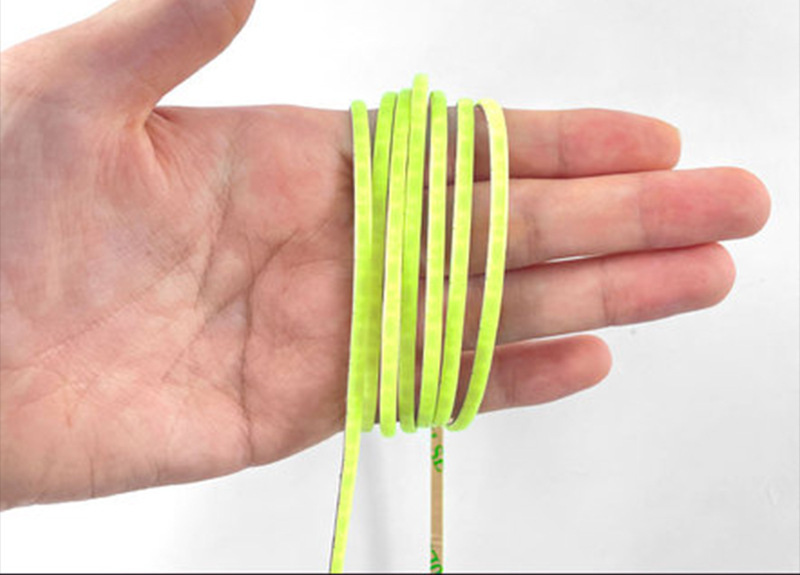

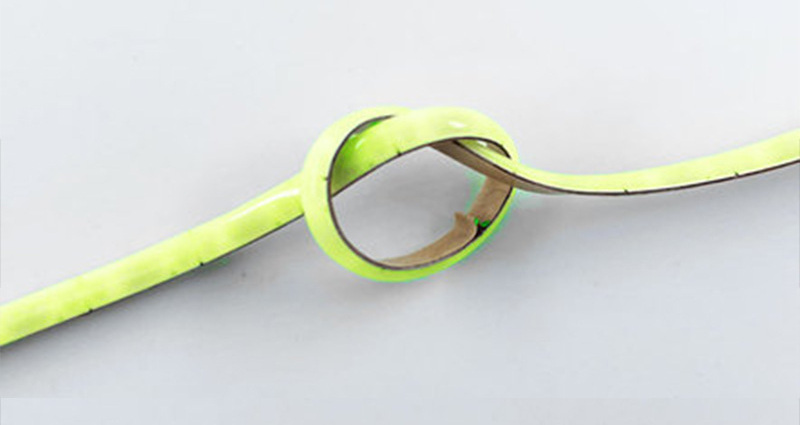

  • Flexible adhesive-backed form
  • Designed for narrow channels and small spaces
PRODUCT GUIDANCE

Plan the right configuration.

Product information by ULANTU

Confirm the 3 mm fit
Check the channel or recess internal width, connection clearance and routing before selecting this ultra-narrow strip.
Choose voltage and color together
Select 5V, 12V or 24V and the listed light color as one SKU. Pink is currently listed only in 5V and 12V.
Ordering boundary
The current variants do not state a sales length or standalone per-metre/per-reel unit. The reference price applies only to the listed configuration.
PARAMETERS

Review the available product details.

Voltage
5V, 12V or 24V by SKU
Technology
COB
Width
3 mm
LED density shown
400 LEDs/m
Colors
White, warm white, neutral white, red, blue, green, golden yellow, ice blue and pink
Pink variants
5V and 12V only
CONFIGURATIONS

Choose from 26 available configurations.

Select the exact voltage and light color. Length and a standalone per-metre or per-reel unit are not stated in the current variants, so pricing remains per listed configuration.

Use the search to narrow by voltage, color, length, plug, controller or model text.

SELECTION GUIDANCE

Confirm the complete requirement.

Product selection
Match the strip to a 5V, 12V or 24V power supply as specified by the selected SKU. Do not connect a low-voltage strip directly to mains power. Confirm the 3 mm channel width and follow the cut marks on the selected strip.
Quantity
Enter the project quantity, length or sample need.
Destination
Add destination and postal code in the request form.
Documents
Request only the files applicable to the selected model and market.
APPLICATIONS & NEXT STEPS

Product uses

Cabinet, Joinery & Furniture Lighting — The 3 mm width suits narrow furniture and joinery details.

Gaming & Computer Desk Lighting — Fixed-color options support compact desk and model-display accents.

Retail & Display Lighting — Ultra-narrow construction can fit small display recesses.

Related application guides

Application imagery and guidance illustrate possible uses only. They are not customer cases or performance proof.
