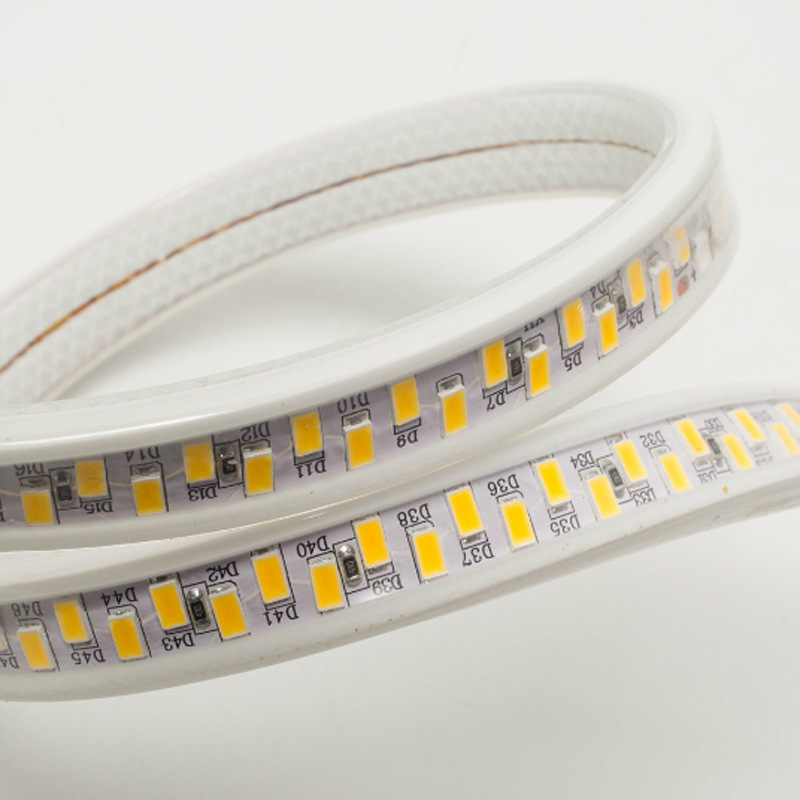

Encapsulated SMD strip with circuit and copper pads.
Flexible LED strips

220 V Encapsulated SMD LED Strips in Multiple Widths and Layouts

Select LED designation, width, row layout, light colour and any stated cut interval together. Available LED designations vary by option: 3035, 3030, 2835, 5730 and 5050.

Model
ULT-91AE5407
Product type
SMD and flexible LED strips
Available configurations
54
From USD 0.31 for this configurationReference price. Contact us for volume pricing. Shipping and taxes excluded.
Get a quoteChoose configuration
PRODUCT OVERVIEW

220 V Encapsulated SMD LED Strips in Multiple Widths and Layouts

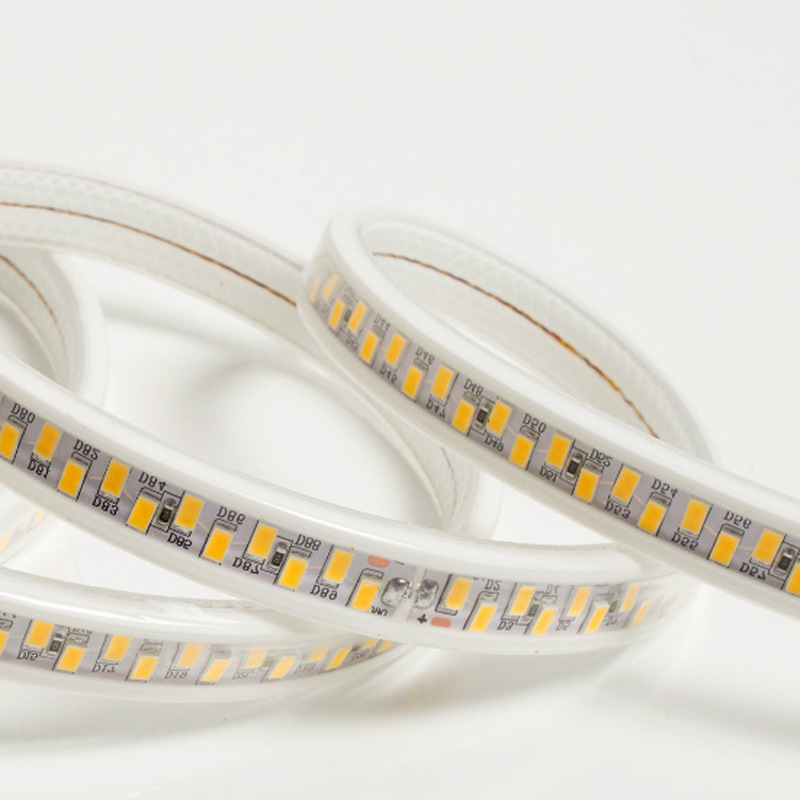

Encapsulated mains-voltage strips with single-colour and RGB choices, different LED packages, widths and cutting intervals. This range includes single, double and triple-row configurations rather than one universal strip specification. White and coloured versions differ in available layouts, and RGB versions use 5050 packages. Some variants specify 20 cm, 50 cm or 1 m cutting intervals. The flexible outer sleeve covers the strip body; power plugs and contact pins must match the selected construction and are not interchangeable simply because the supply voltage is the same.

  • 220 V strip family
  • Widths from 5 mm to 15 mm by option
  • Single/double/triple-row layouts
  • White, colour and RGB choices
PRODUCT GUIDANCE

Plan the right configuration.

Product information by ULANTU

Configuration limits
Specifications, accessories, supply voltage and protection apply to the selected variant or shown image, not the whole family by default.
PARAMETERS

Review the available product details.

PCB width designations
5 mm, 6 mm, 6.8 mm, 8 mm, 9 mm, 10 mm, 12 mm, 14 mm, 15 mm (by variant).
Listed specification
220 V strip family
Listed specification
Widths from 5 mm to 15 mm by option
Listed specification
Single/double/triple-row layouts
Listed specification
White, colour and RGB choices
CONFIGURATIONS

Choose from 54 available configurations.

Select LED designation, width, row layout, light colour and any stated cut interval together. Available LED designations vary by option: 3035, 3030, 2835, 5730 and 5050.

Use the search to narrow by voltage, color, length, plug, controller or model text.

SELECTION GUIDANCE

Confirm the complete requirement.

Product selection

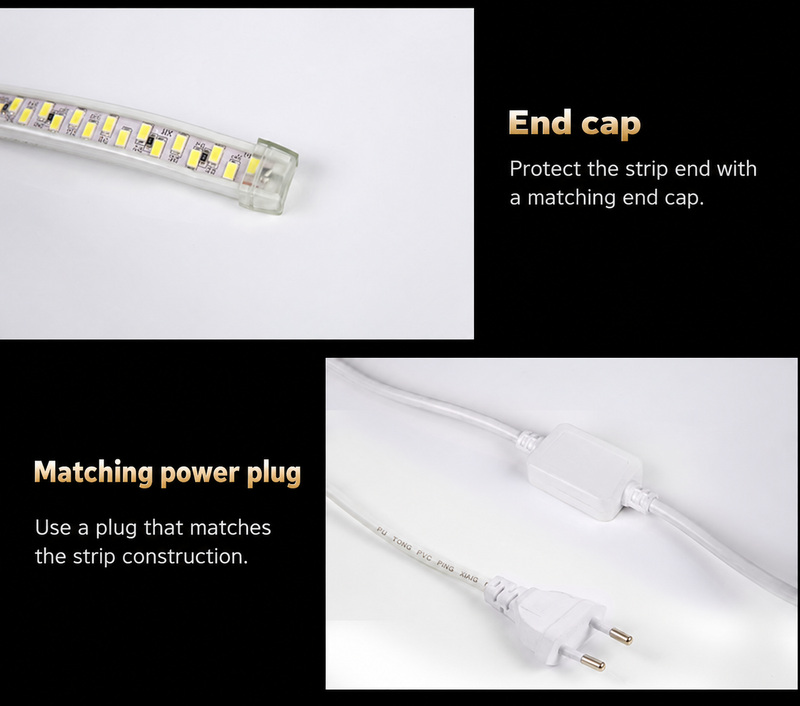

Use matching mains-rated connectors and end sealing. Disconnect before installation or cutting; follow the selected strip's marked interval. Do not treat a connector load rating as supplied strip length.
Quantity

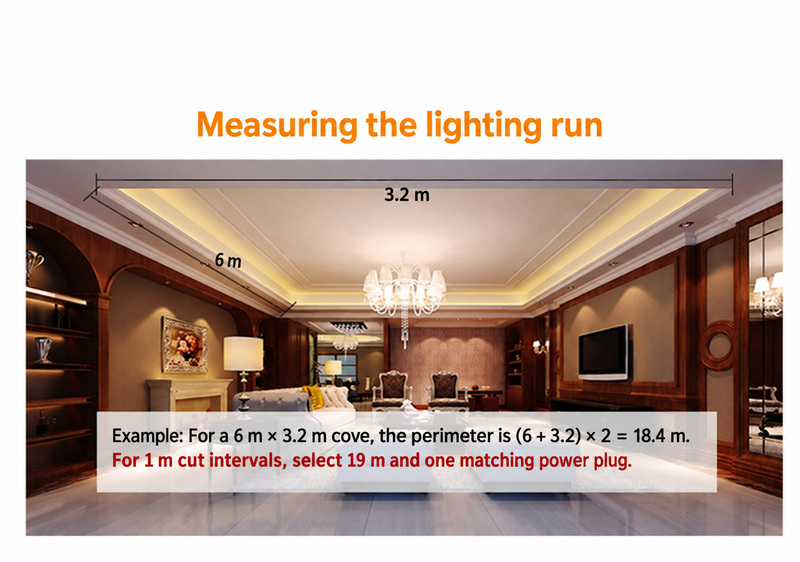

Enter the project quantity, length or sample need.
Destination
Add destination and postal code in the request form.
Documents
Request only the files applicable to the selected model and market.
APPLICATIONS & NEXT STEPS

Product uses

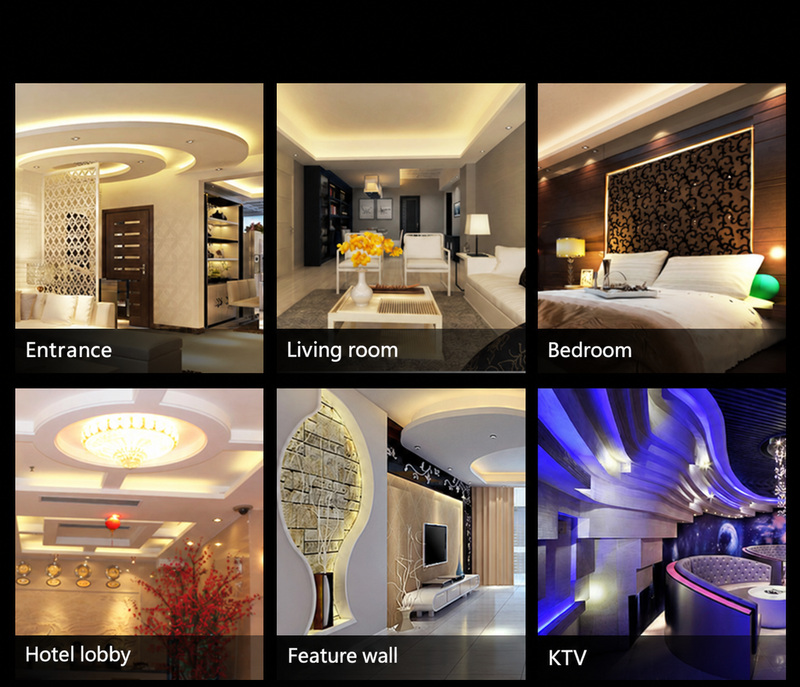

Flexible strip fits concealed room-edge and recess layouts.

The selected light colour and control arrangement can complement bars,restaurants or guest-room accents.

Strip configurations can illuminate shelf and display edges.

Related application guides

Application imagery and guidance illustrate possible uses only. They are not customer cases or performance proof.

PROJECT REVIEW

Confirm suitability for your application.

Start a project inquiry
