LED strip showing 2835 packages, a control IC and marked cut positions.
Flexible LED strips

24 V 2835 Chasing-Effect LED Strip with WS2811 IC

Choose light colour and integer length 1–10 m. Controller and power supply are separate selection requirements unless expressly included in a quotation.

Model
ULT-4B357467
Product type
SMD and flexible LED strips
Available configurations
30
From USD 2.13 for this configurationReference price. Contact us for volume pricing. Shipping and taxes excluded.
Get a quoteChoose configuration
PRODUCT OVERVIEW

24 V 2835 Chasing-Effect LED Strip with WS2811 IC

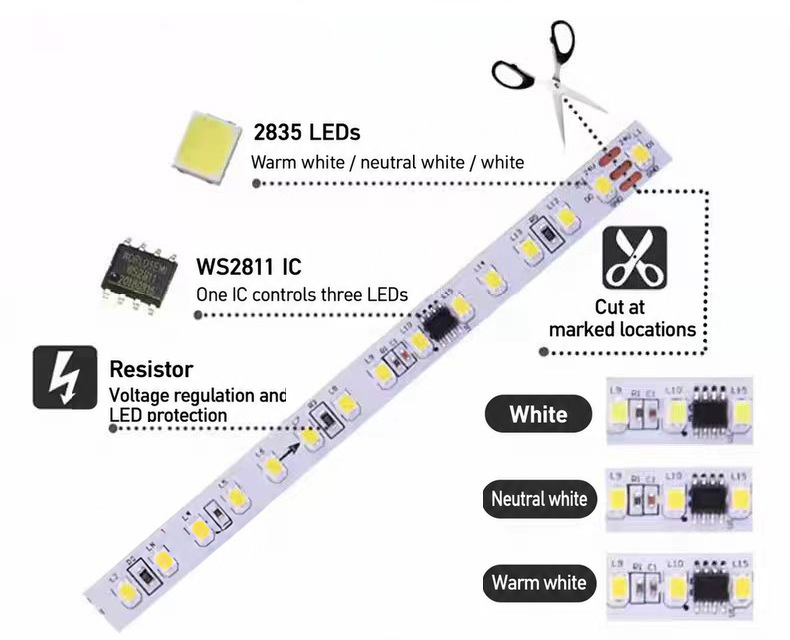

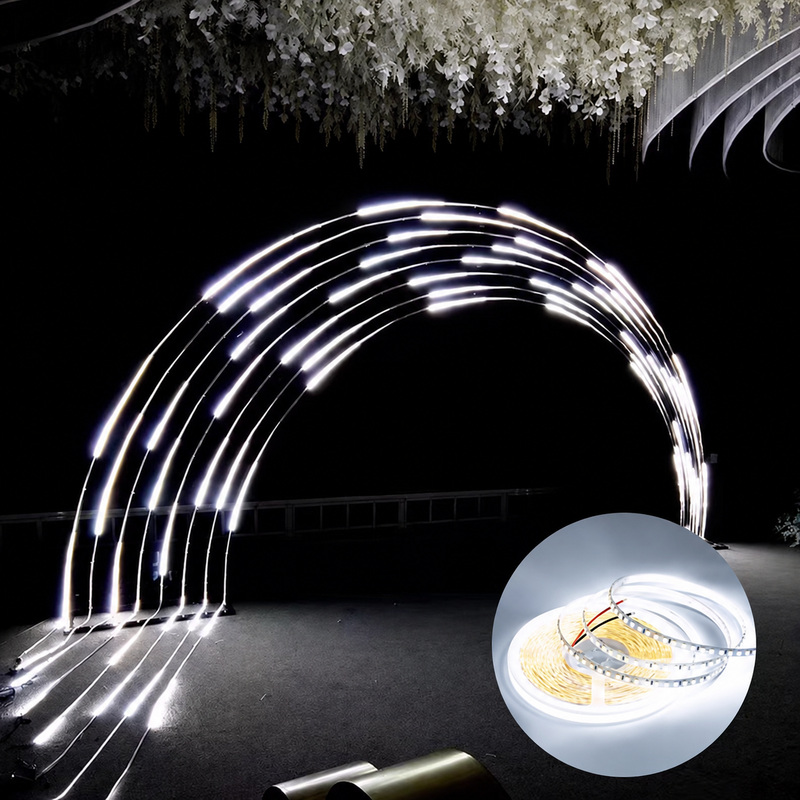

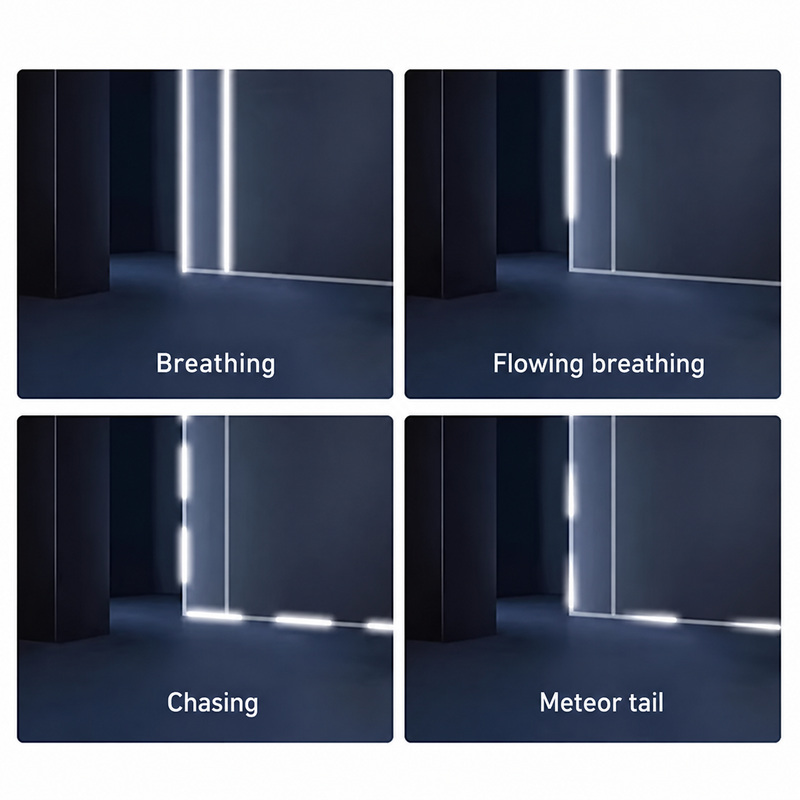

Bare 24 V strip with 2835 LEDs and WS2811 control circuitry for meteor, chasing and flowing decorative effects. The strip combines white-light LEDs with an on-strip control IC for animated lighting when connected to a compatible controller. Warm-white, white and neutral-white versions are available in 1–10 m lengths. It is a bare, non-waterproof strip, so event arches, sign accents and decorative installations need dry or protected mounting. The effect depends on the control system; the listed strip options do not promise the illustrated controller or adapter as included.

  • 24 V; 120-LED designation
  • 2835 LEDs and WS2811 IC

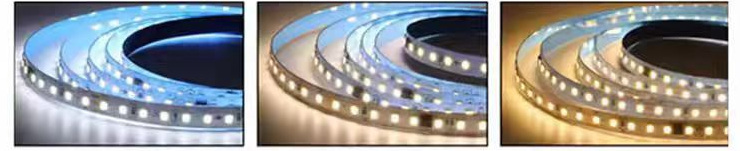

  • Warm-white, white and neutral-white choices
  • 1–10 m bare-strip options
PRODUCT GUIDANCE

Plan the right configuration.

Product information by ULANTU

Configuration limits
Specifications, accessories, supply voltage and protection apply to the selected variant or shown image, not the whole family by default.
PARAMETERS

Review the available product details.

Voltage options
24 V (by variant).
Listed specification
24 V; 120-LED designation
Listed specification
2835 LEDs and WS2811 IC
Listed specification
Warm-white, white and neutral-white choices
Listed specification
1–10 m bare-strip options
CONFIGURATIONS

Choose from 30 available configurations.

Choose light colour and integer length 1–10 m. Controller and power supply are separate selection requirements unless expressly included in a quotation.

Use the search to narrow by voltage, color, length, plug, controller or model text.

SELECTION GUIDANCE

Confirm the complete requirement.

Product selection

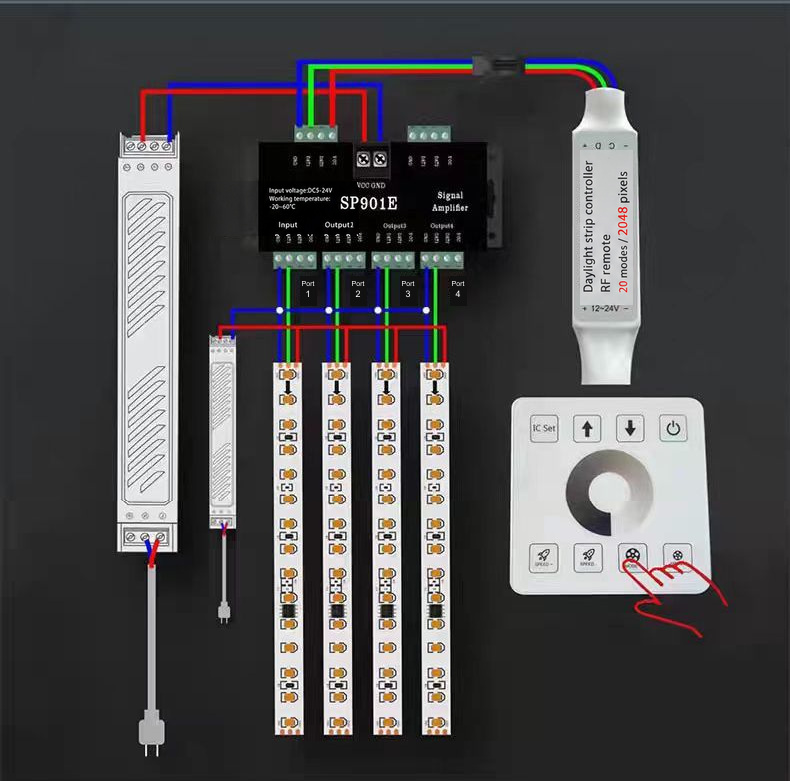

Match the WS2811 control connection and 24 V supply. Keep bare PCB dry and use marked cut positions. Provide the intended effect, run arrangement and controller requirement for quotation.
Quantity
Enter the project quantity, length or sample need.
Destination
Add destination and postal code in the request form.
Documents
Request only the files applicable to the selected model and market.
APPLICATIONS & NEXT STEPS

Product uses

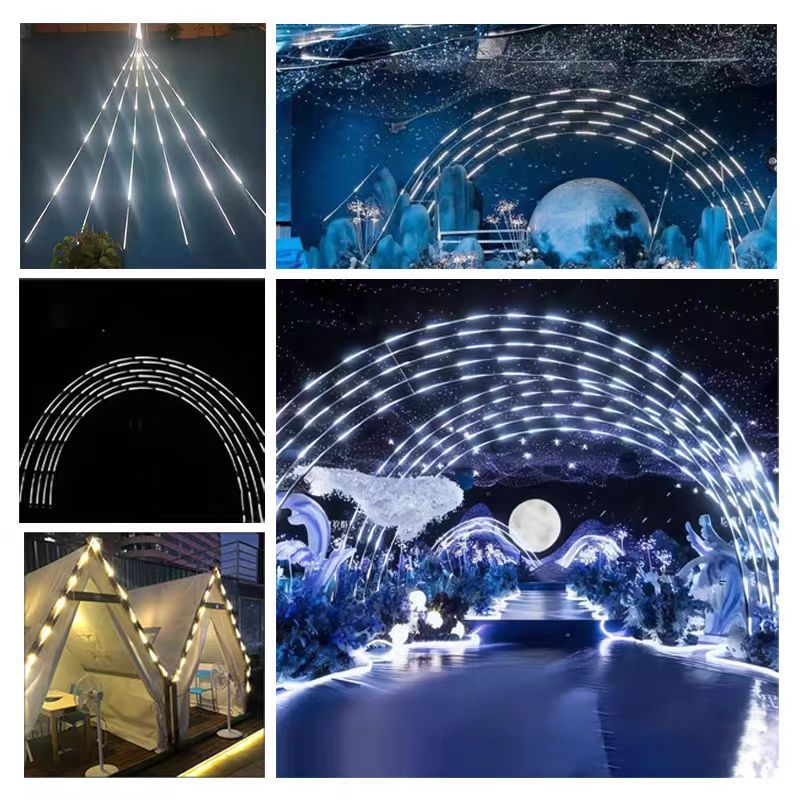

Flexible light runs can accent sign edges and display outlines.

The selected light colour and control arrangement can complement bars,restaurants or guest-room accents.

Strip configurations can illuminate shelf and display edges.
