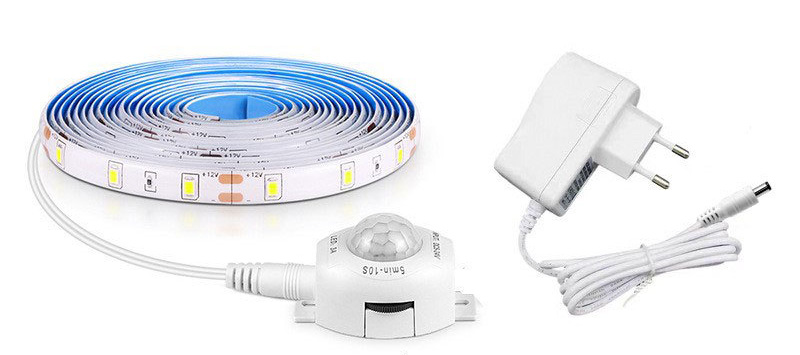

LED strip reel, PIR sensor and EU power adapter.
Flexible LED strips

12 V 2835 PIR Motion-Sensor Strip Kit for Beds and Cabinets

Select colour, length and EU or China-style plug. Coating applies to the strip; do not assume the sensor or adapter is waterproof.

Model
ULT-05528C83
Product type
Motion sensor LED strips
Available configurations
20
From USD 6.25 for this configurationReference price. Contact us for volume pricing. Shipping and taxes excluded.
Get a quoteChoose configuration
PRODUCT OVERVIEW

12 V 2835 PIR Motion-Sensor Strip Kit for Beds and Cabinets

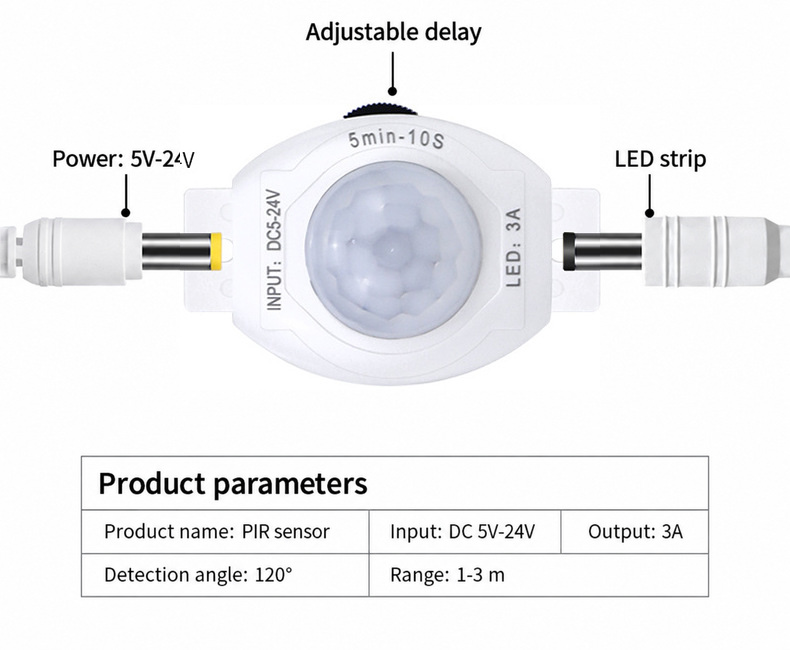

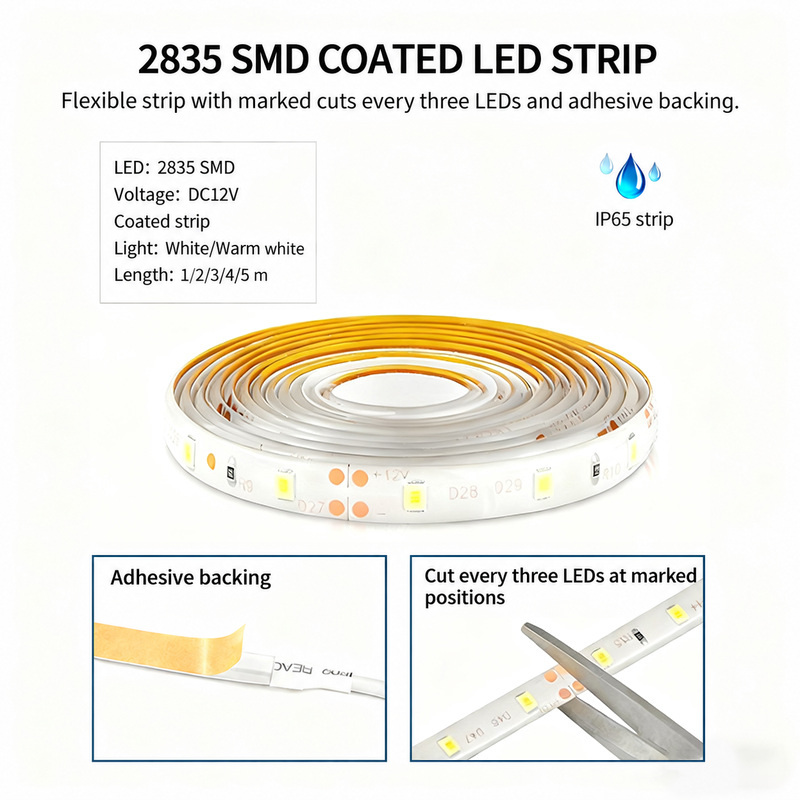

Motion-activated 12 V strip kits with warm-white or white light, 1–5 m lengths and EU or China-style adapters. The kit combines a coated 2835 strip, aPIR sensor and a matching power supply. The sensor diagram specifies a 1–3 m detection range and 120-degree angle, with light sensing for dark-condition operation. Adhesive backing and marked three-LED cutting positions help fit the strip below furniture or along a cabinet edge. The sensor's wider input range does not change the strip's 12 V requirement.

  • 12 V strip kit
  • PIR sensor, strip and adapter

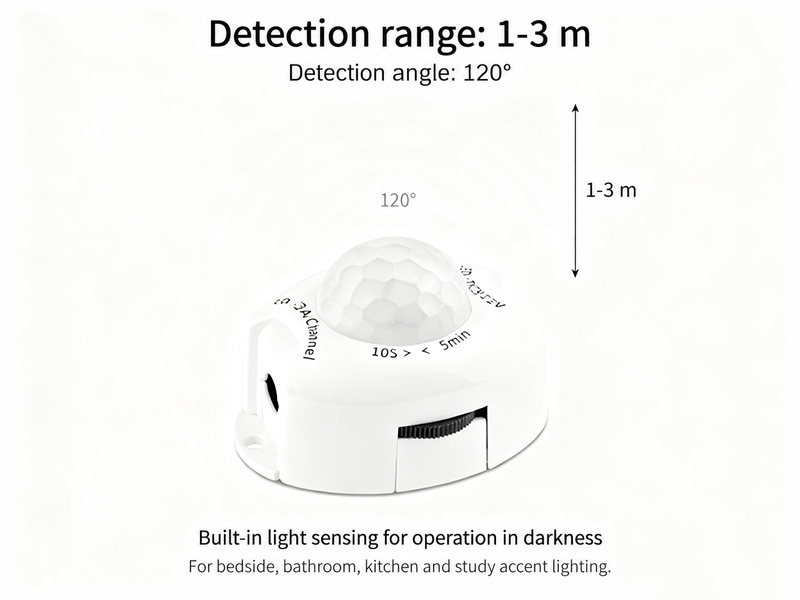

  • 1–3 m sensor range; 120-degree angle
  • Warm-white or white; 1–5 m
PRODUCT GUIDANCE

Plan the right configuration.

Product information by ULANTU

Configuration limits
Specifications, accessories, supply voltage and protection apply to the selected variant or shown image, not the whole family by default.
PARAMETERS

Review the available product details.

Listed specification
12 V strip kit
Listed specification
PIR sensor, strip and adapter
Listed specification
1–3 m sensor range; 120-degree angle
Listed specification
Warm-white or white; 1–5 m
CONFIGURATIONS

Choose from 20 available configurations.

Select colour, length and EU or China-style plug. Coating applies to the strip; do not assume the sensor or adapter is waterproof.

Use the search to narrow by voltage, color, length, plug, controller or model text.

SELECTION GUIDANCE

Confirm the complete requirement.

Product selection

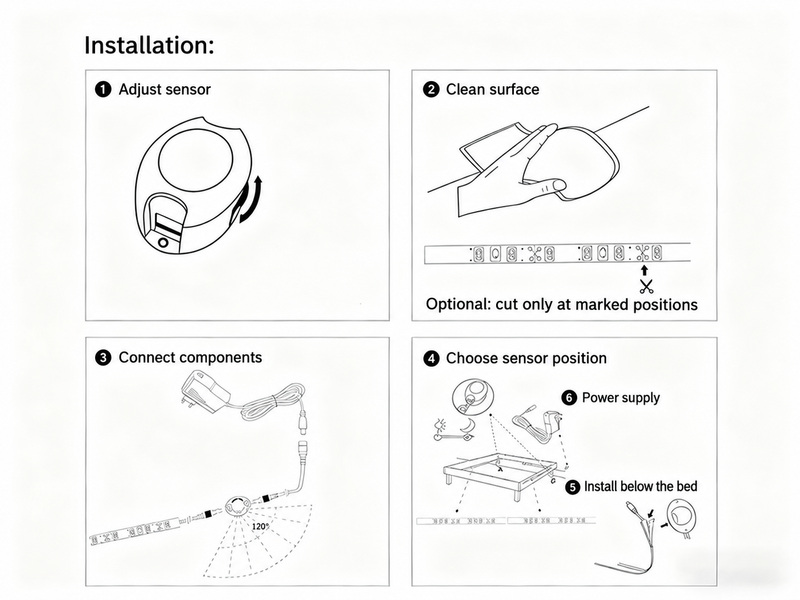

Connect the matching 12 V adapter, sensor and strip. Position the sensor toward the expected movement area; avoid covering its lens. Clean the surface and cut only at marked positions with power off.
Quantity
Enter the project quantity, length or sample need.
Destination
Add destination and postal code in the request form.
Documents
Request only the files applicable to the selected model and market.
APPLICATIONS & NEXT STEPS

Product uses

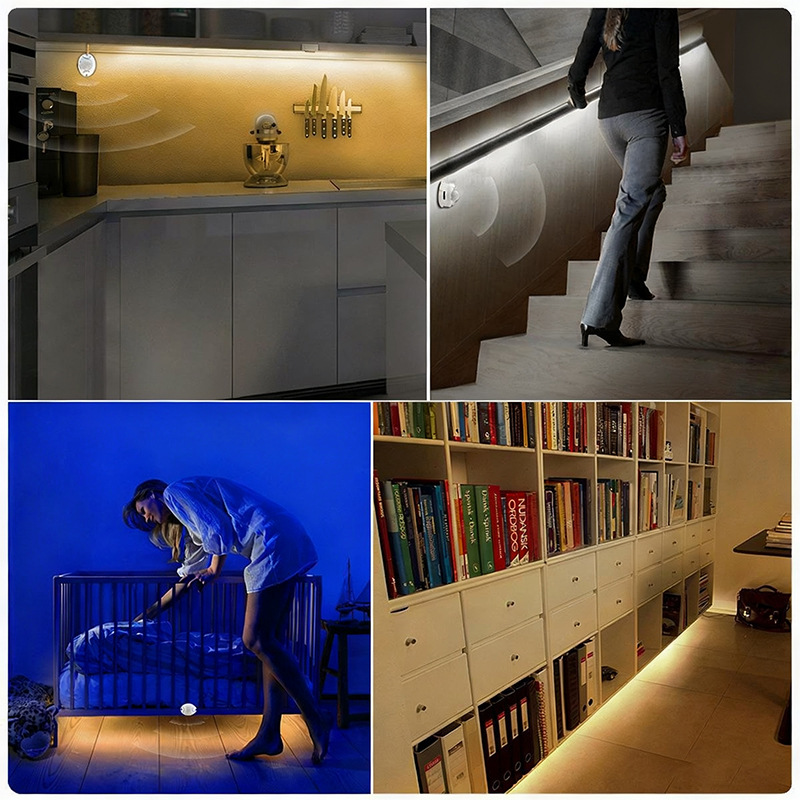

Motion-controlled low-level light can illuminate the area beside a bed.

A selected strip length can fit shelf edges and furniture recesses.

Appropriate strip and control configurations can follow step and corridor edges.
