LED strip reel with USB-powered motion sensor and connection lead.
Flexible LED strips

5V USB PIR Motion-Sensor 2835 LED Strip Kits

22 variants cover strip length and coating. These are plug-in USB sensor kits, not rechargeable-battery kits.

Model
ULT-FA0569B3
Product type
Motion sensor LED strips
Available configurations
22
From USD 4.69 for this configurationReference price. Contact us for volume pricing. Shipping and taxes excluded.
Get a quoteChoose configuration
PRODUCT OVERVIEW

5V USB PIR Motion-Sensor 2835 LED Strip Kits

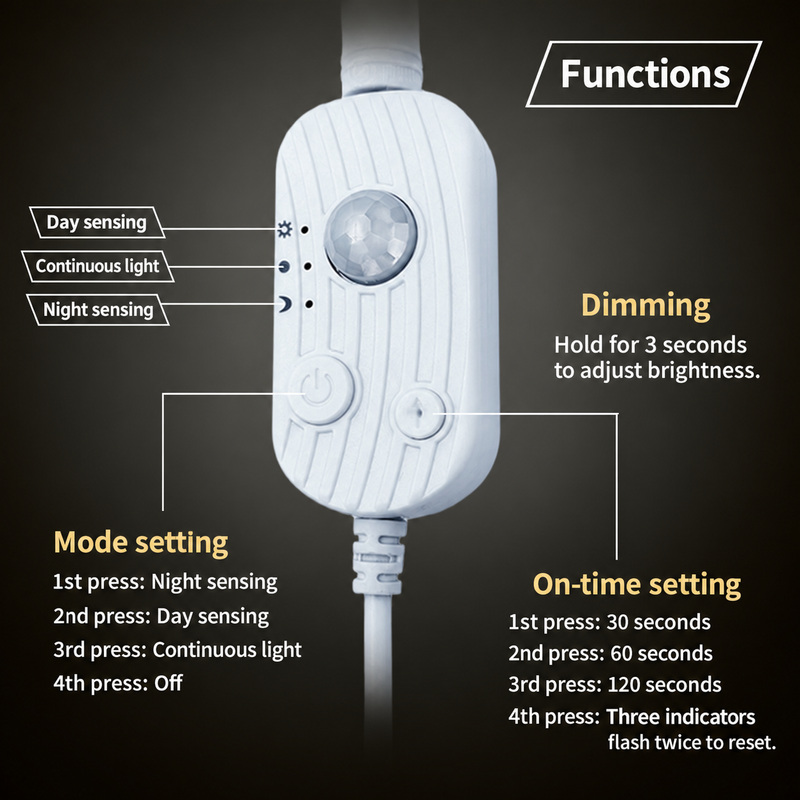

USB-powered motion-sensor strip kits for bedside, cabinet and pathway accents, with bare and resin-coated versions. The controller offers day-sensing, night-sensing and continuous-light modes, along with brightness adjustment. Choose white or warm white and the required strip length. A resin-coated strip and a bare strip are separate options; coating on the strip does not make the USB connector or sensor waterproof. Each listed kit includes one USB-powered motion sensor.

  • USB-powered motion sensor
  • Day, night and continuous-light modes
  • Adjustable brightness

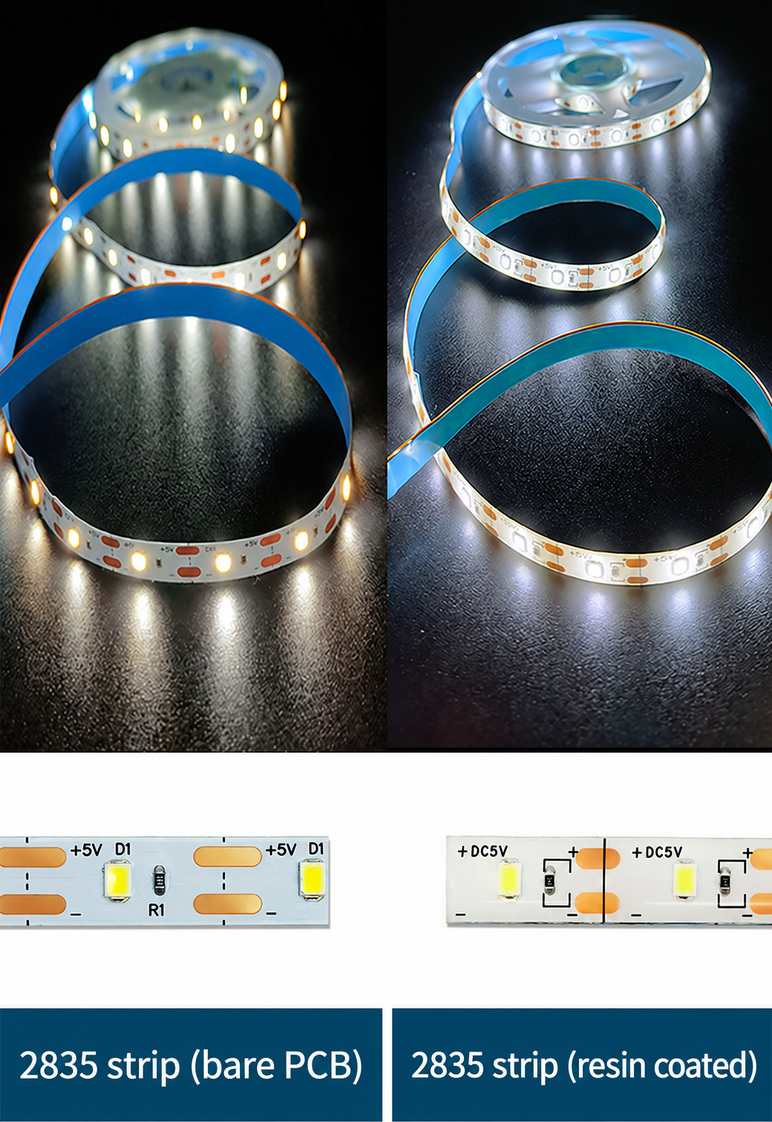

  • Bare and resin-coated options
  • White and warm-white choices
PRODUCT GUIDANCE

Plan the right configuration.

Product information by ULANTU

Available configurations
22 variants cover strip length and coating. These are plug-in USB sensor kits, not rechargeable-battery kits.
Selection and installation

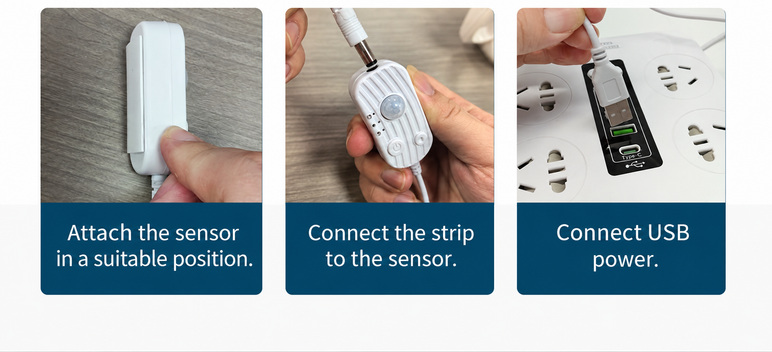

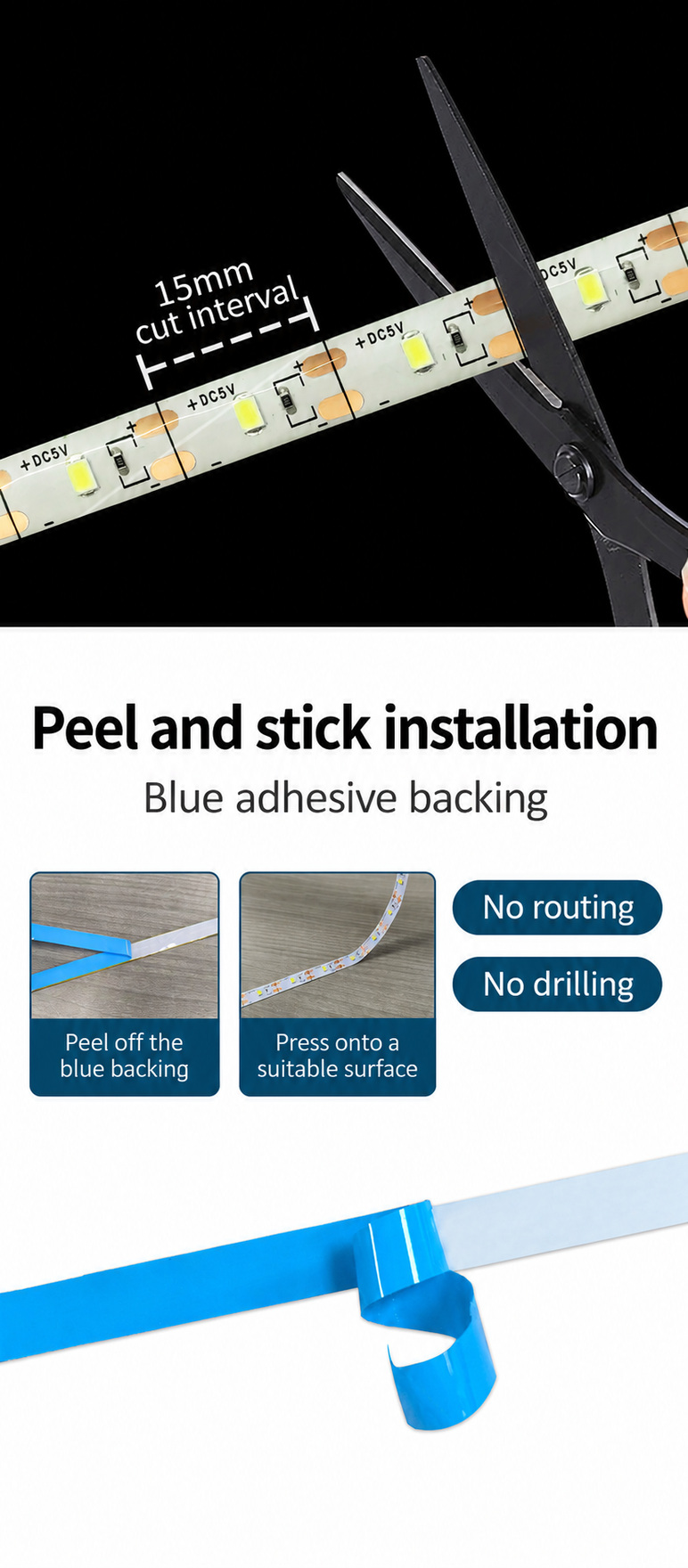

Mount the sensor where movement can be detected and keep it unobstructed. Attach the strip to a clean surface, connect it to the sensor and then to a suitable 5V USB source. Cut only at marked positions.
PARAMETERS

Review the available product details.

CONFIGURATIONS

Choose from 22 available configurations.

22 variants cover strip length and coating. These are plug-in USB sensor kits, not rechargeable-battery kits.

Use the search to narrow by voltage, color, length, plug, controller or model text.

SELECTION GUIDANCE

Confirm the complete requirement.

Product selection
Mount the sensor where movement can be detected and keep it unobstructed. Attach the strip to a clean surface, connect it to the sensor and then to a suitable 5V USB source. Cut only at marked positions.
Quantity
Enter the project quantity, length or sample need.
Destination
Add destination and postal code in the request form.
Documents
Request only the files applicable to the selected model and market.
APPLICATIONS & NEXT STEPS

Product uses

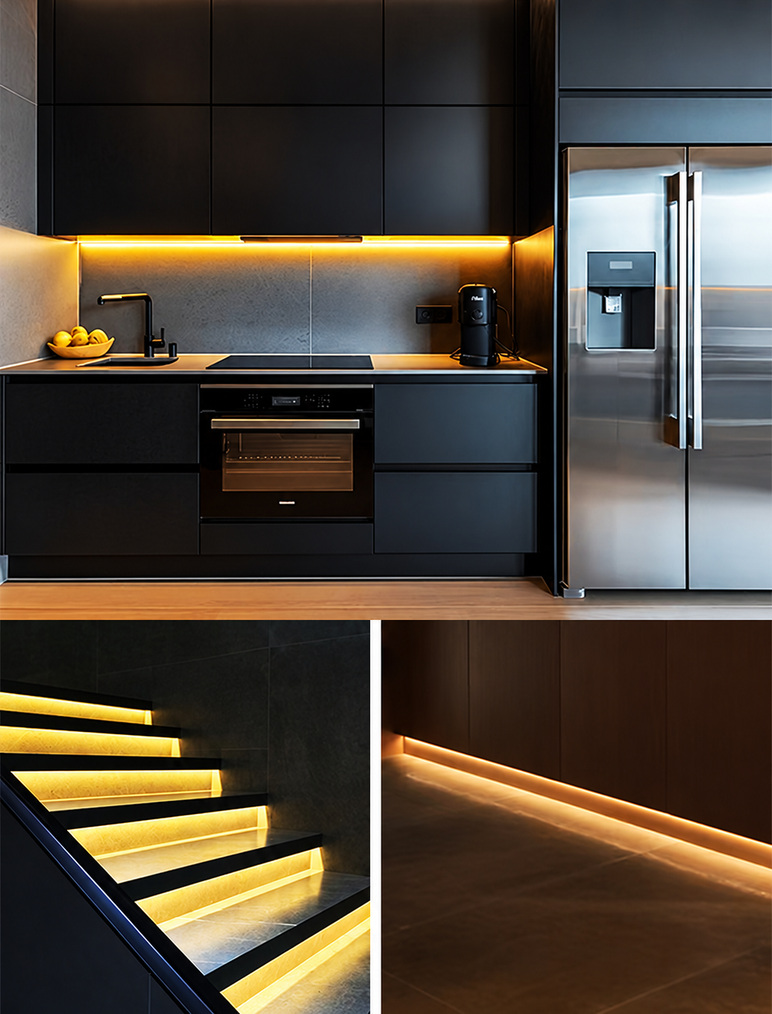

Sensor-controlled light can illuminate low-level bedside areas.

Short strip runs and appropriate control options fit shelf and cabinet details.

Sensor or switch configurations can illuminate step and corridor edges.

Related application guides

Application imagery and guidance illustrate possible uses only. They are not customer cases or performance proof.
