12V Single-Row Rigid LED Bar with Flanged Channel

A 12V single-row rigid LED bar in a flanged aluminum channel, with source charts covering several lengths, powers and LED counts.

Model
ULT-0A3C0F10
Product type
Rigid LED bars
Available configurations
1
Request a quoteReference price. Contact us for volume pricing. Shipping and taxes excluded.
Get a quoteChoose configuration
PRODUCT OVERVIEW

12V Single-Row Rigid LED Bar with Flanged Channel

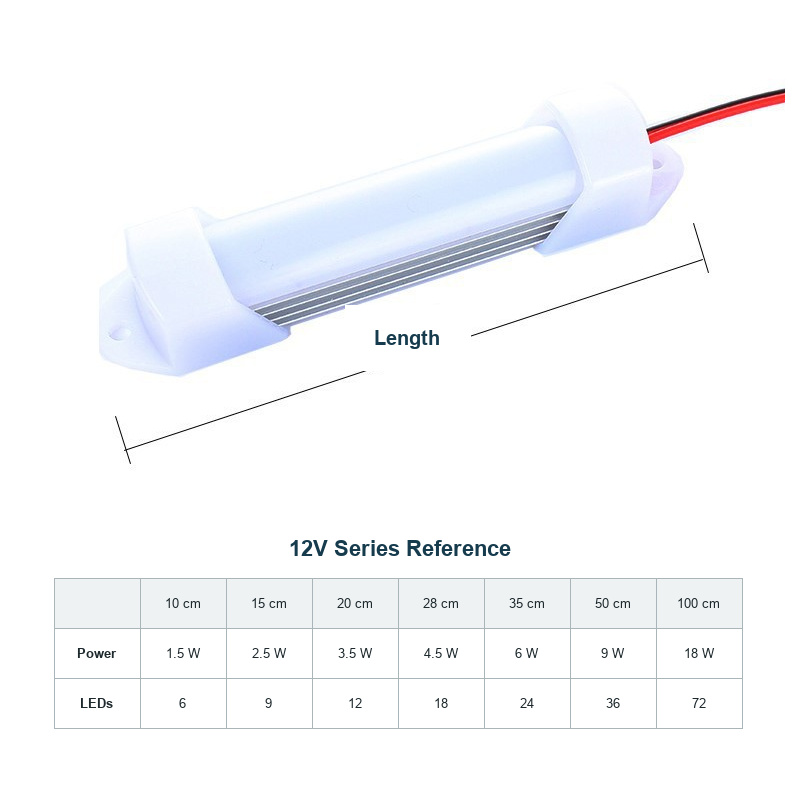

The product images show a 12V rigid light bar using a single LED row in a flanged aluminum channel. The source family chart lists lengths from 10 to 100 cm, rated powers from 1.5 to 18 W, and 6 to 72 LEDs. A 5630 LED designation appears in the gallery. The current catalog record contains one placeholder variant, so the exact length/power/LED-count combination is not assigned to that variant and remains an internal gap.

  • 12V rigid linear bar
  • Single-row layout
  • Flanged aluminum channel
  • Length, power and LED-count family chart available

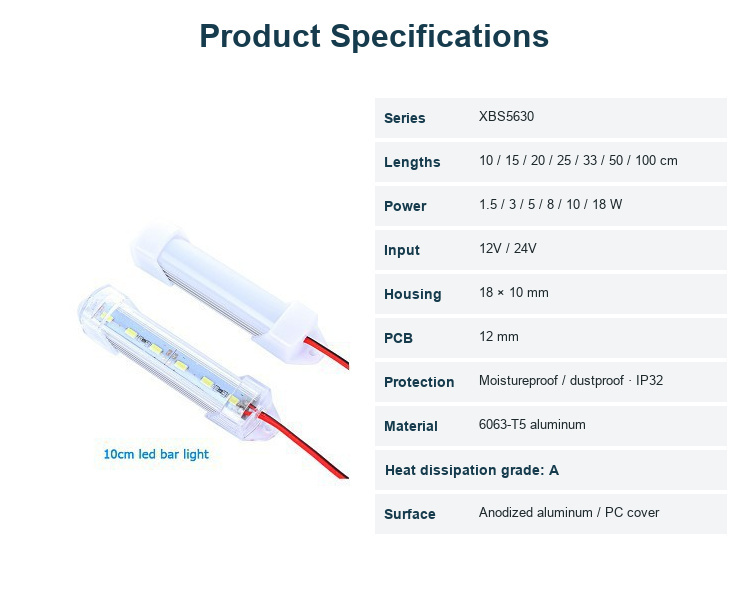

  • 5630 LED designation shown in the gallery
PARAMETERS

Review the available product details.

Voltage
12V
Lengths shown
10, 15, 20, 28, 35, 50 and 100 cm
Rated powers shown
1.5, 2.5, 3.5, 4.5, 6, 9 and 18 W
LED counts shown
6, 9, 12, 18, 24, 36 and 72
LED designation shown
5630
CONFIGURATIONS

Choose from 1 available configurations.

The family data is usable for selection, but the single placeholder variant does not yet identify one exact length, power and LED-count combination.

Use the search to narrow by voltage, color, length, plug, controller or model text.

SELECTION GUIDANCE

Confirm the complete requirement.

Product selection
Use a 12V supply sized for the selected bar. Mount through the flanged channel and confirm the exact length/power combination before quotation or upload.
Quantity
Enter the project quantity, length or sample need.
Destination
Add destination and postal code in the request form.
Documents
Request only the files applicable to the selected model and market.
APPLICATIONS & NEXT STEPS

Product uses

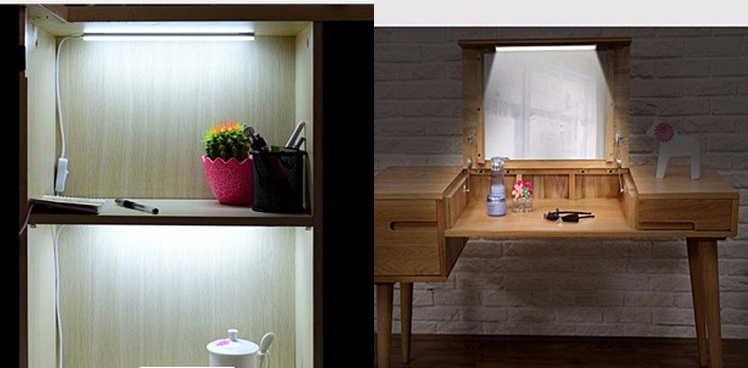

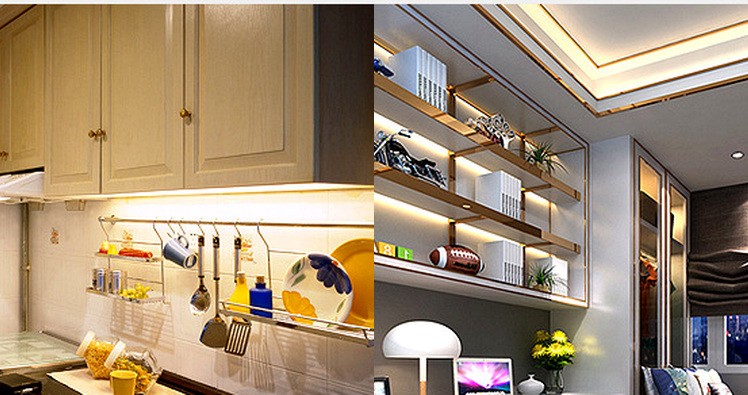

Cabinet and shelf lighting — The rigid bar provides a straight linear source.

Display cases — Flanged mounting supports fixed placement.

Work and utility lighting — Multiple family lengths cover compact to long runs.

Related application guides

Application imagery and guidance illustrate possible uses only. They are not customer cases or performance proof.
