Addressable RGB LED strip reels with black and white PCB options
Flexible LED strips

5V/12V/24V Addressable RGB LED Strip

An addressable RGB strip family with WS2811, WS2812, WS2815 and 16703 configurations across several voltages, widths, densities and protection types.

Model
ULT-A6C5867D
Product type
SMD and flexible LED strips
Available configurations
24
From USD 1.41 for this configurationReference price. Contact us for volume pricing. Shipping and taxes excluded.
Get a quoteChoose configuration
PRODUCT OVERVIEW

5V/12V/24V Addressable RGB LED Strip

This range covers multiple addressable strip architectures rather than one universal electrical specification. SKU choices combine 5V, 12V or 24V operation with 5.5, 8 or 10 mm PCB widths and LED densities from 30 to 144 LEDs/m. Uncoated, epoxy-coated and sleeved formats are available. Selected 16703 configurations include break-point resume behavior; this feature is not claimed for every SKU.

  • Addressable full-color lighting
  • 5V, 12V and 24V configurations
  • WS2811, WS2812, WS2815 and 16703 variants
  • 30–144 LEDs/m by SKU
  • Uncoated, epoxy-coated and sleeved protection choices
PARAMETERS

Review the available product details.

Voltage
5V, 12V or 24V by SKU
IC/LED format
WS2811, WS2812, WS2815 or 16703 by SKU
Width
5.5, 8 or 10 mm by SKU
LED density
30, 60, 96, 108 or 144 LEDs/m by SKU
Protection
Uncoated, epoxy-coated or sleeved
CONFIGURATIONS

Choose from 24 available configurations.

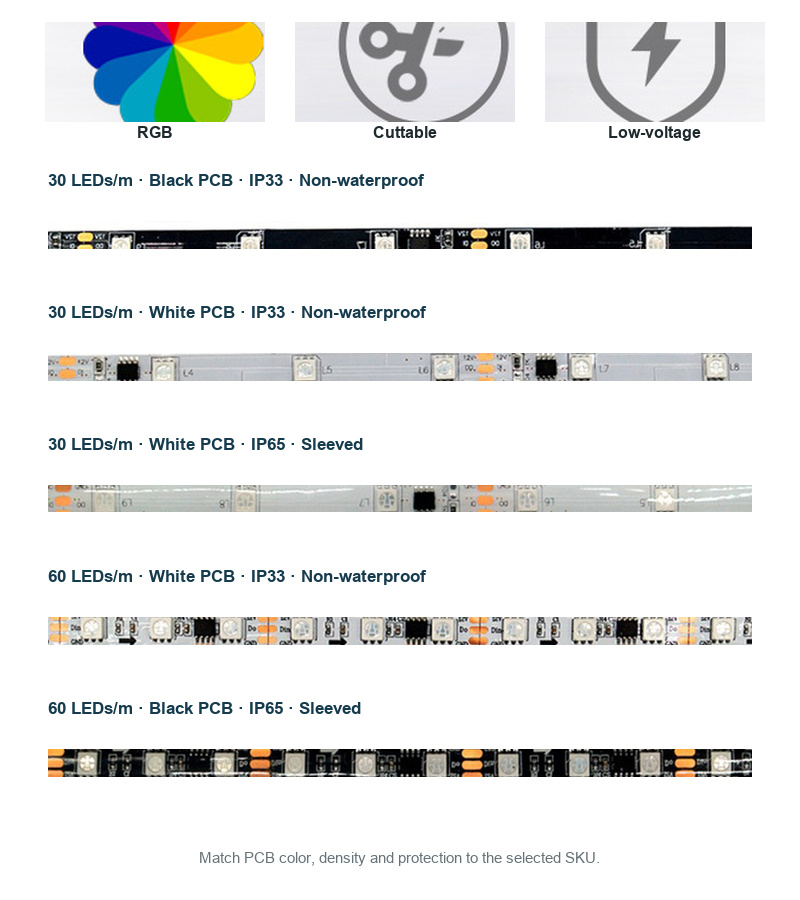

Select voltage, IC format, LED density, PCB width and protection as one matched configuration. Break-point resume applies only to the identified 16703 options.

Use the search to narrow by voltage, color, length, plug, controller or model text.

SELECTION GUIDANCE

Confirm the complete requirement.

Product selection
Use a compatible addressable controller and a power supply matching the exact SKU voltage. Plan power injection according to the selected density and run; do not mix voltage families on one supply.
Quantity
Enter the project quantity, length or sample need.
Destination
Add destination and postal code in the request form.
Documents
Request only the files applicable to the selected model and market.
APPLICATIONS & NEXT STEPS

Product uses

Digital signage accents — Individually controlled effects support animated outlines.

Entertainment lighting — Addressable color patterns suit stages and gaming spaces.

Architectural feature lines — Multiple density and protection choices support different installation conditions.

Related application guides

Application imagery and guidance illustrate possible uses only. They are not customer cases or performance proof.
