Stair and corridor accents — Chasing light can guide movement along a linear route.
Flexible LED strips

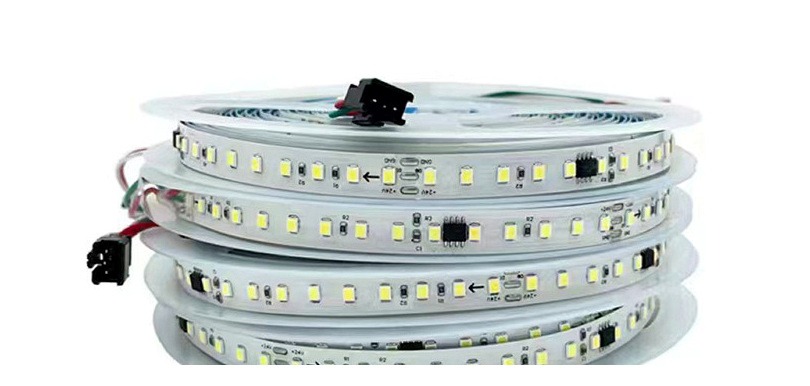

24V 2835 Chasing LED Strip, 120 LEDs/m
A 24V 2835 linear chasing strip offered in white tones and fixed colors, with uncoated and sleeved protected constructions.
- Model
- ULT-73CB189E
- Product type
- SMD and flexible LED strips
- Available configurations
- 18
PRODUCT OVERVIEW
24V 2835 Chasing LED Strip, 120 LEDs/m
The strip uses a 24V 2835 layout with 120 LEDs/m and a WS2811-based chasing format shown in the product material. The uncoated version is 10 mm wide, while the sleeved protected version is 12 mm wide. Select the light color and construction together because the width changes with the protection option.
- 24V low-voltage operation
- 120 LEDs/m for a dense linear appearance

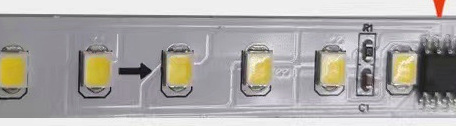

- WS2811 chasing format
- 10 mm uncoated or 12 mm sleeved protected construction
- White tones and fixed-color choices

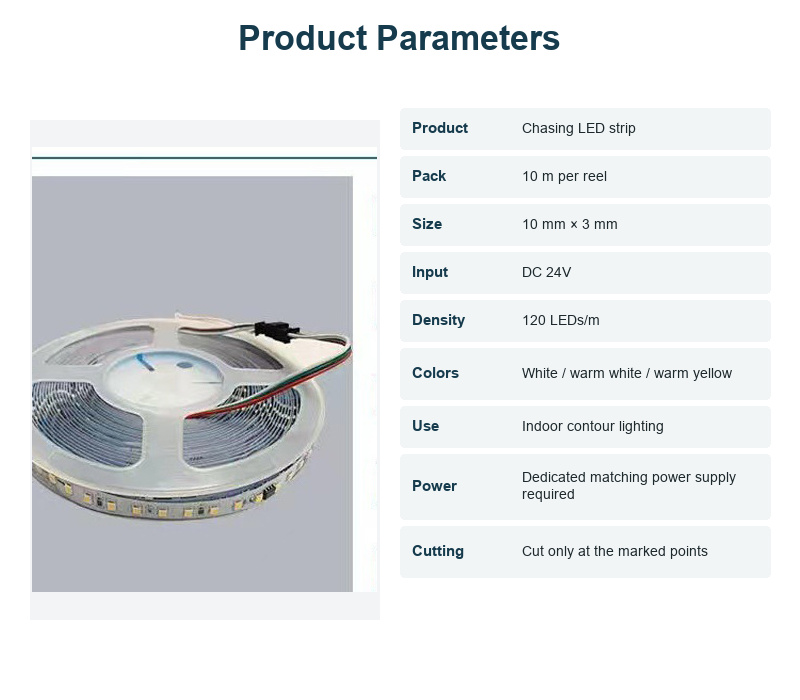

PARAMETERS
Review the available product details.
- Voltage
- 24V
- LED
- 2835
- Control IC
- WS2811
- LED density
- 120 LEDs/m
- Width
- 10 mm uncoated; 12 mm sleeved protected
- Colors
- White tones and fixed colors by SKU
CONFIGURATIONS
Choose from 18 available configurations.
Choose the exact color and either 10 mm uncoated or 12 mm sleeved protected construction.
Use the search to narrow by voltage, color, length, plug, controller or model text.
SELECTION GUIDANCE
Confirm the complete requirement.
- Product selection
- Match the controller and 24V power arrangement to the selected strip. Use the uncoated version only where its exposed construction is appropriate; allow for the larger width of the sleeved version.
- Quantity
- Enter the project quantity, length or sample need.
- Destination
- Add destination and postal code in the request form.
- Documents
- Request only the files applicable to the selected model and market.
APPLICATIONS & NEXT STEPS
Product uses
Retail display lines — Dense LEDs support continuous-looking edge illumination.
Covered architectural features — The protected sleeve is available for locations needing added physical protection.
Related application guides
Application imagery and guidance illustrate possible uses only. They are not customer cases or performance proof.
Stair & Corridor Lighting
View application guide
Retail & Display Lighting
View application guidePROJECT REVIEW
