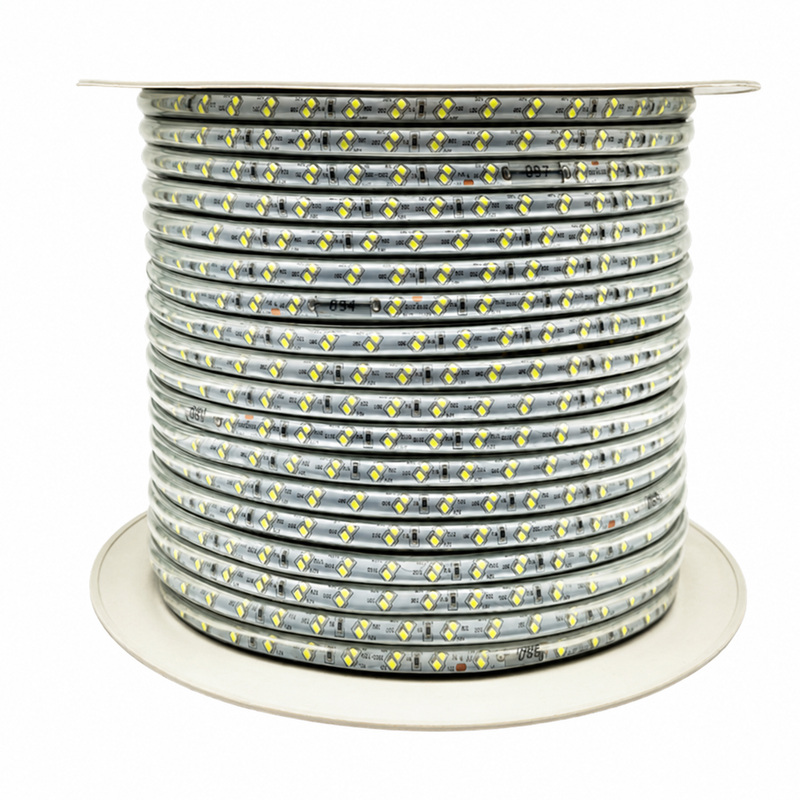

Reel of unlit diagonal double-row LED strip with convex encapsulation.
Flexible LED strips

220V 2835 Convex Double-Row LED Strip, 120 LEDs/m

Two strip colours and one independent 2-pin connector with 10mm pin pitch.

Model
ULT-95AD0788
Product type
SMD and flexible LED strips
Available configurations
3
From USD 1.06 for this configurationReference price. Contact us for volume pricing. Shipping and taxes excluded.
Get a quoteChoose configuration
PRODUCT OVERVIEW

220V 2835 Convex Double-Row LED Strip, 120 LEDs/m

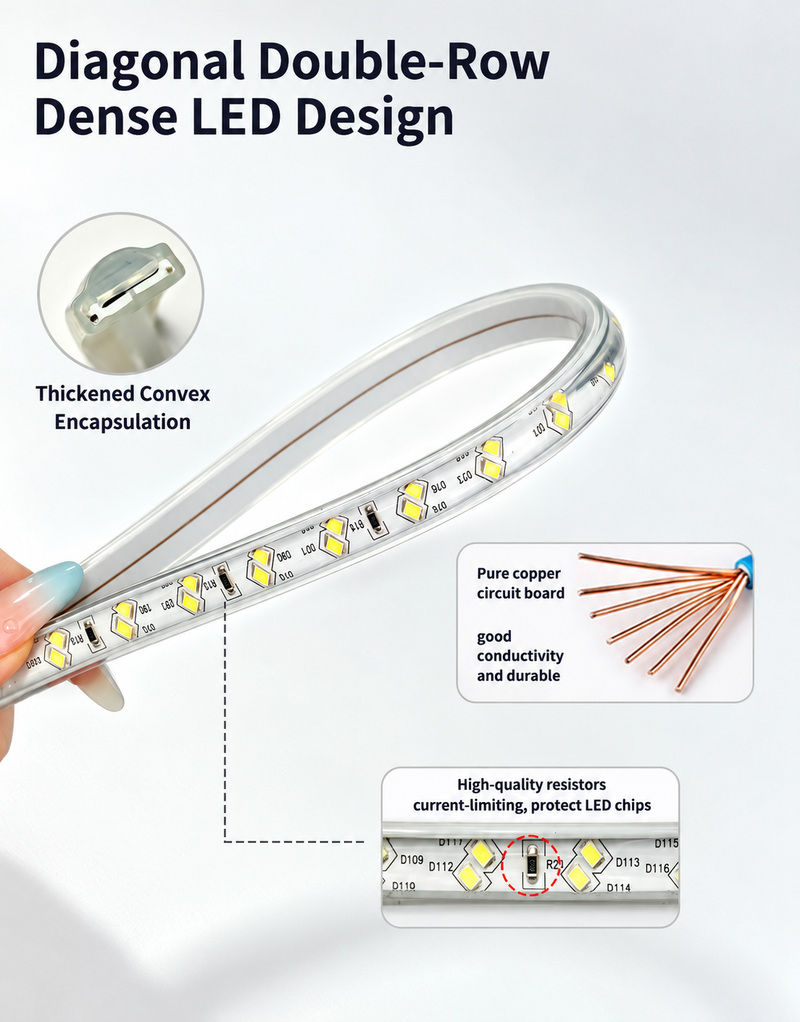

Encapsulated diagonal double-row strip in warm white or white, with a separate solderless connector option. The 13mm-wide convex strip uses 120 LEDs/m and a diagonal double-row layout. The illustrated section is 7mm thick, with marked 1m cutting intervals. Choose the light colour and matching 10mm-pitch connector independently; the connector is sold separately.

  • 220V, 120 LEDs/m
  • 13mm wide convex section
  • Diagonal double-row layout

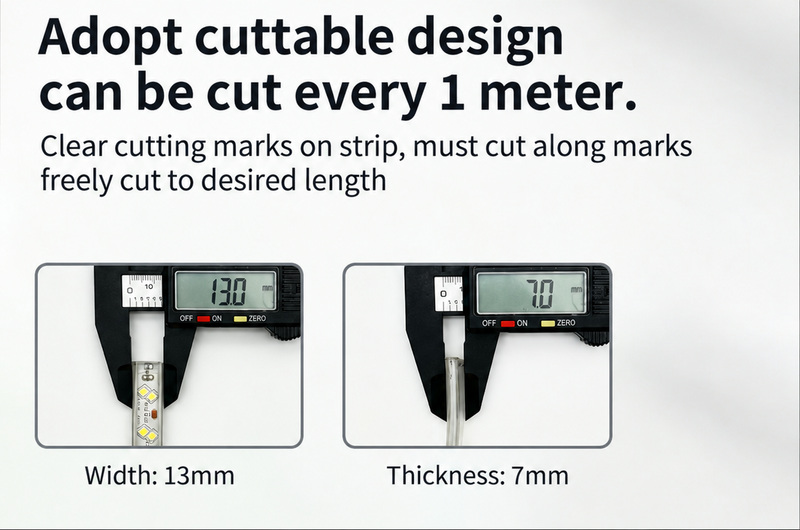

  • 1m marked cut intervals
PRODUCT GUIDANCE

Plan the right configuration.

Product information by ULANTU

Available configurations

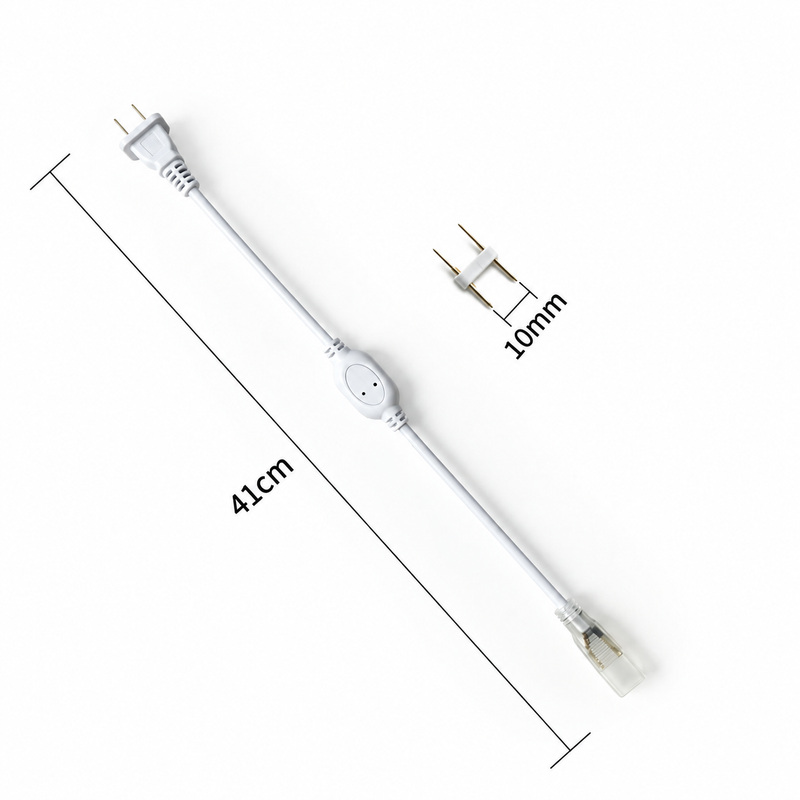

Two strip colours and one independent 2-pin connector with 10mm pin pitch.
Selection and installation

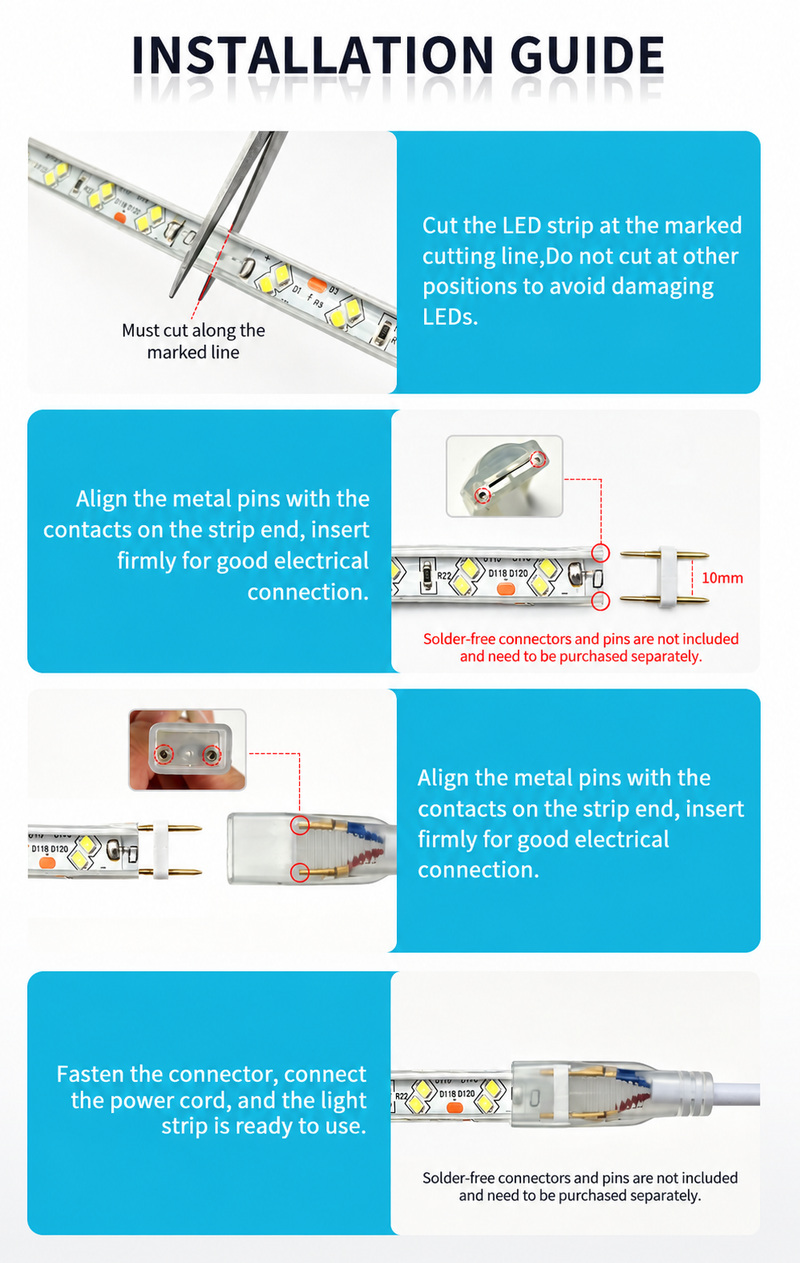

Fully unroll before powering. Disconnect the supply before cutting, follow the marked line and align the contact pins. Seal connections for the intended exposure.

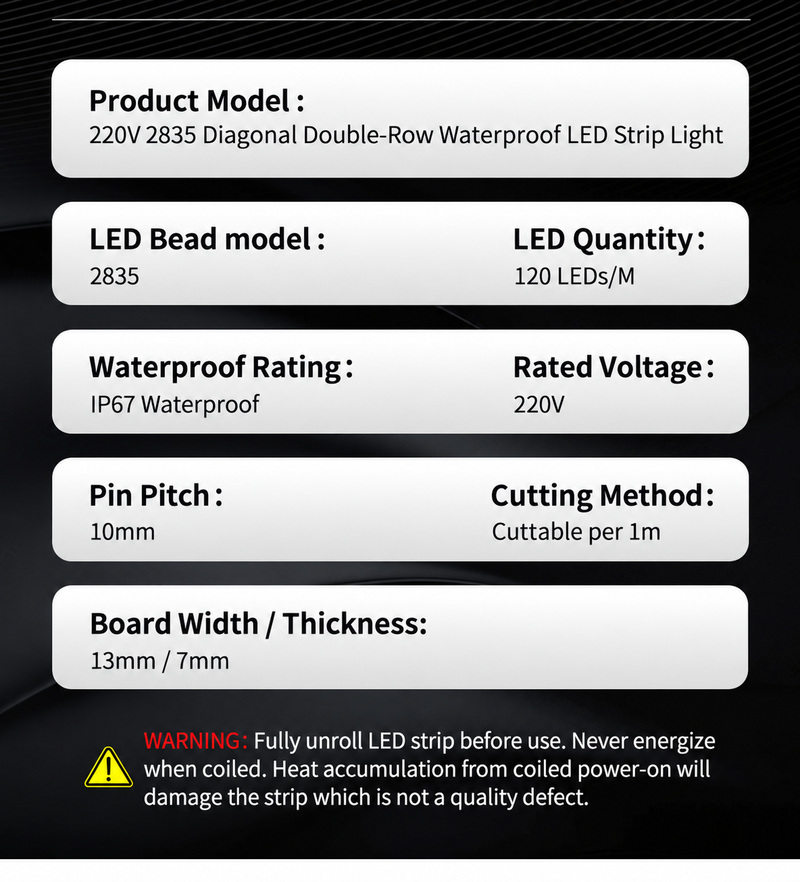

PARAMETERS

Review the available product details.

Voltage options
220V (by SKU).
Width / dimension designations
13mm (by SKU).
CONFIGURATIONS

Choose from 3 available configurations.

Two strip colours and one independent 2-pin connector with 10mm pin pitch.

Use the search to narrow by voltage, color, length, plug, controller or model text.

SELECTION GUIDANCE

Confirm the complete requirement.

Product selection
Fully unroll before powering. Disconnect the supply before cutting, follow the marked line and align the contact pins. Seal connections for the intended exposure.
Quantity
Enter the project quantity, length or sample need.
Destination
Add destination and postal code in the request form.
Documents
Request only the files applicable to the selected model and market.
APPLICATIONS & NEXT STEPS

Product uses

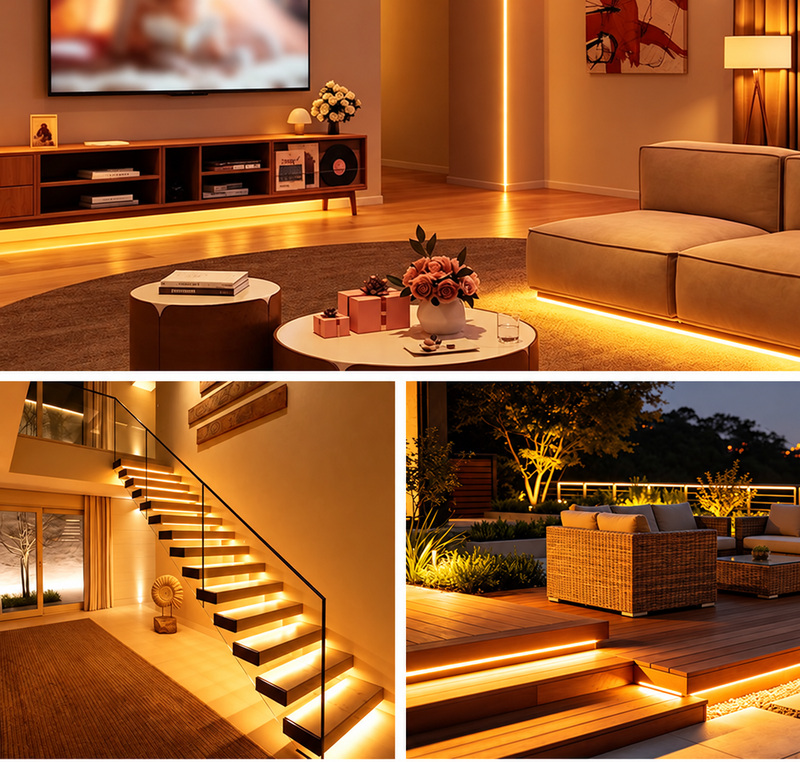

The encapsulated strip can follow garden or building outlines with suitable sealed connections.

The flexible strip follows recesses and room edges for indirect light.

Selectable light colours and strip formats can highlight display edges and shelves.

Related application guides

Application imagery and guidance illustrate possible uses only. They are not customer cases or performance proof.
